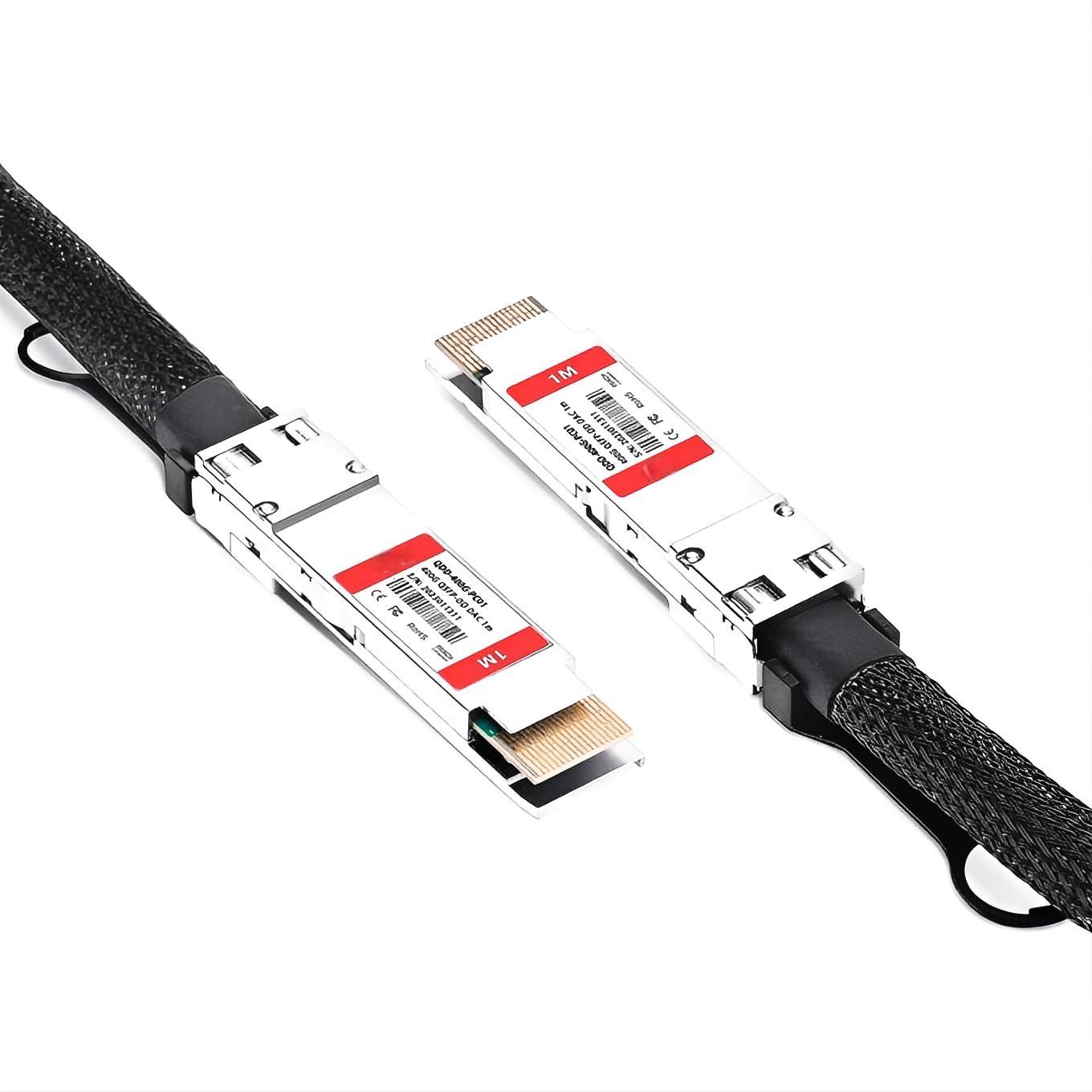

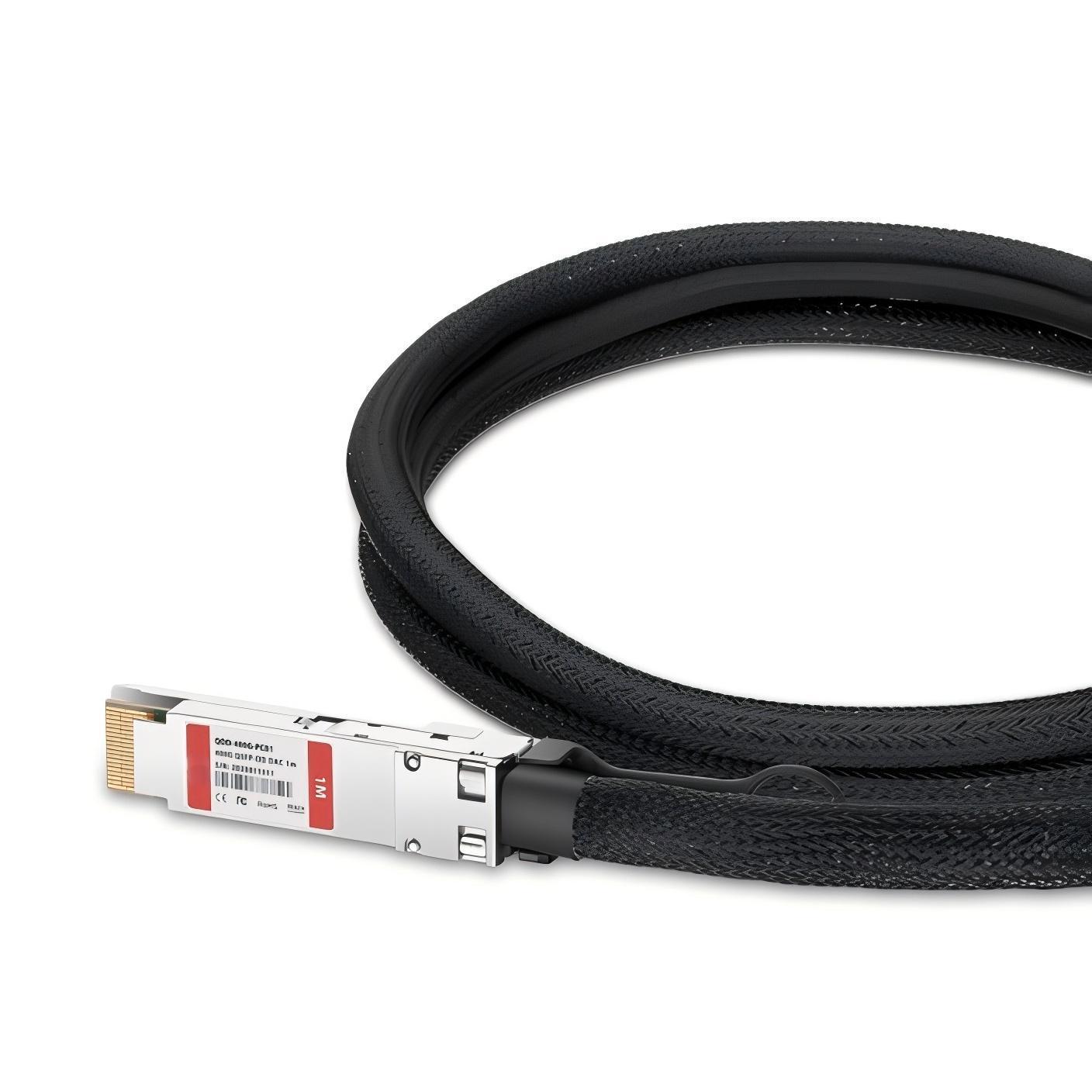

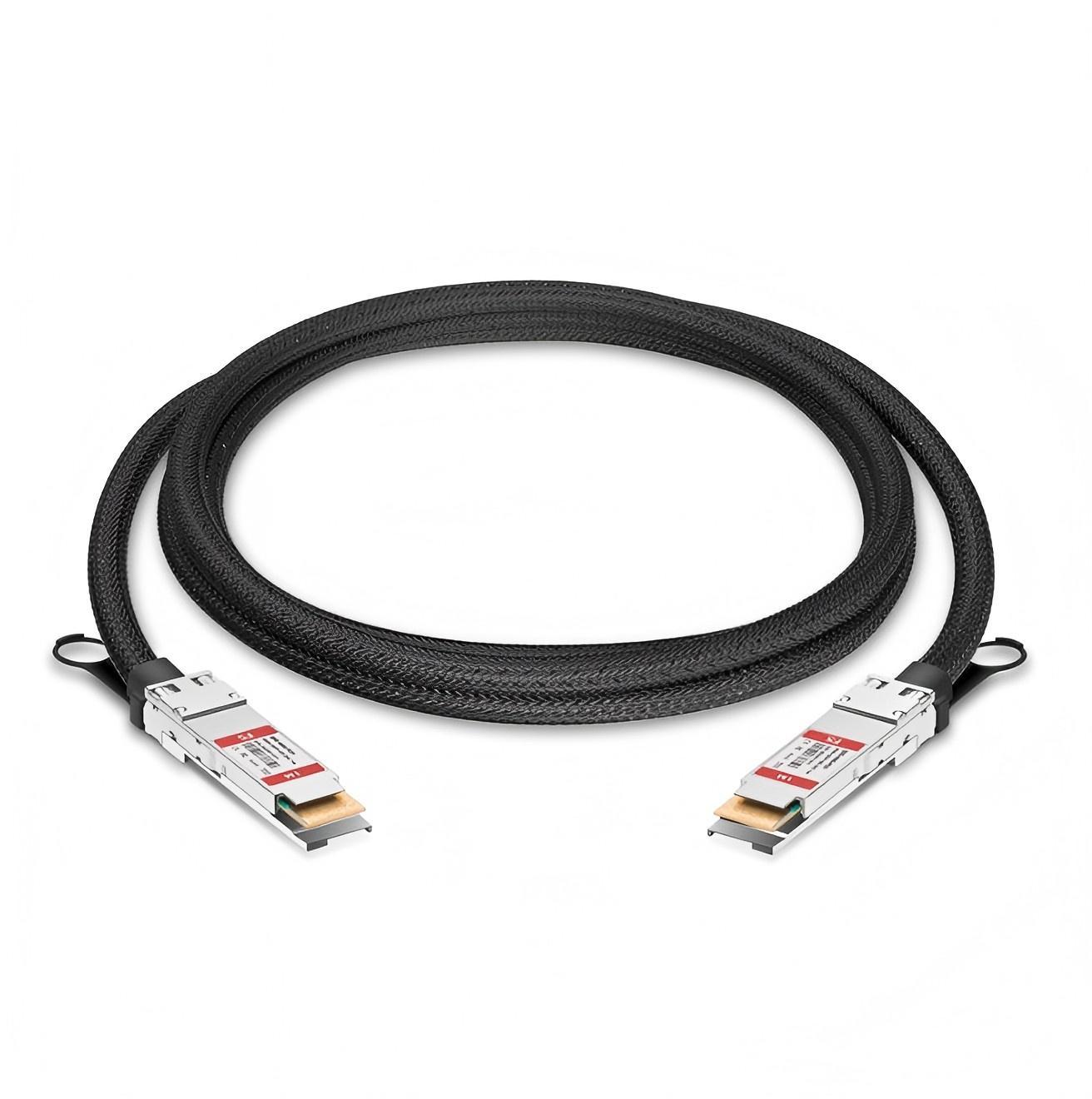

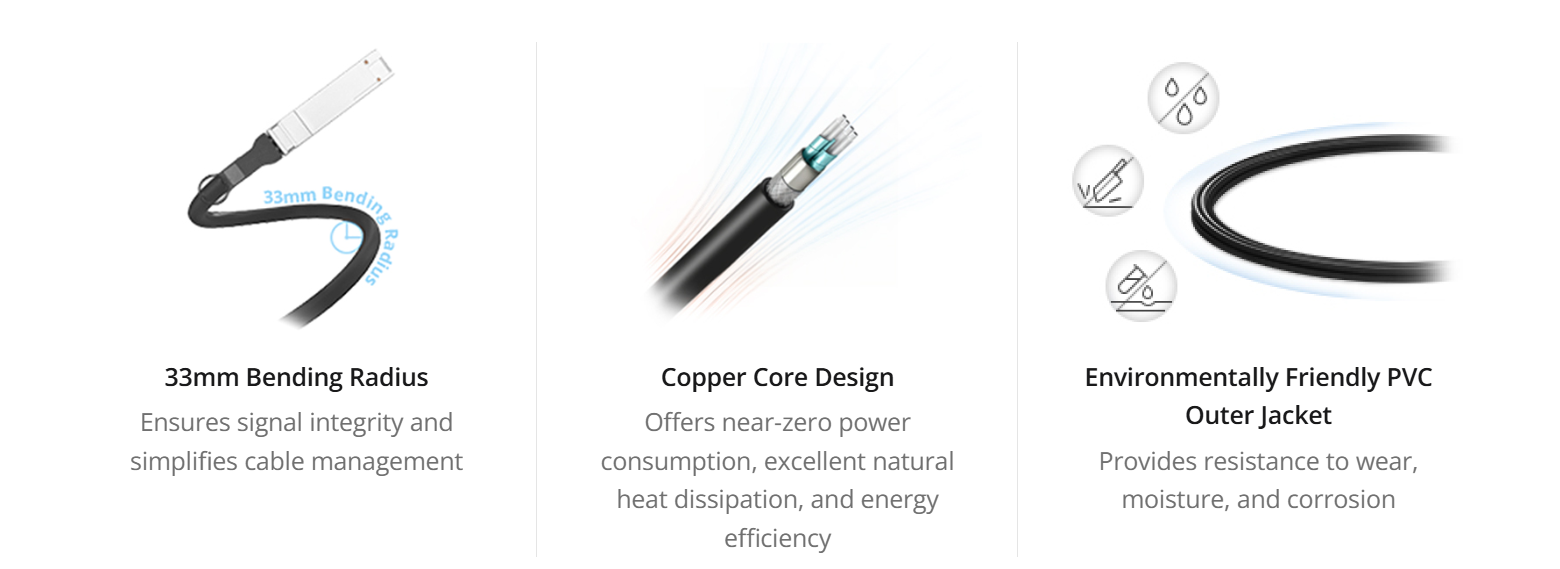

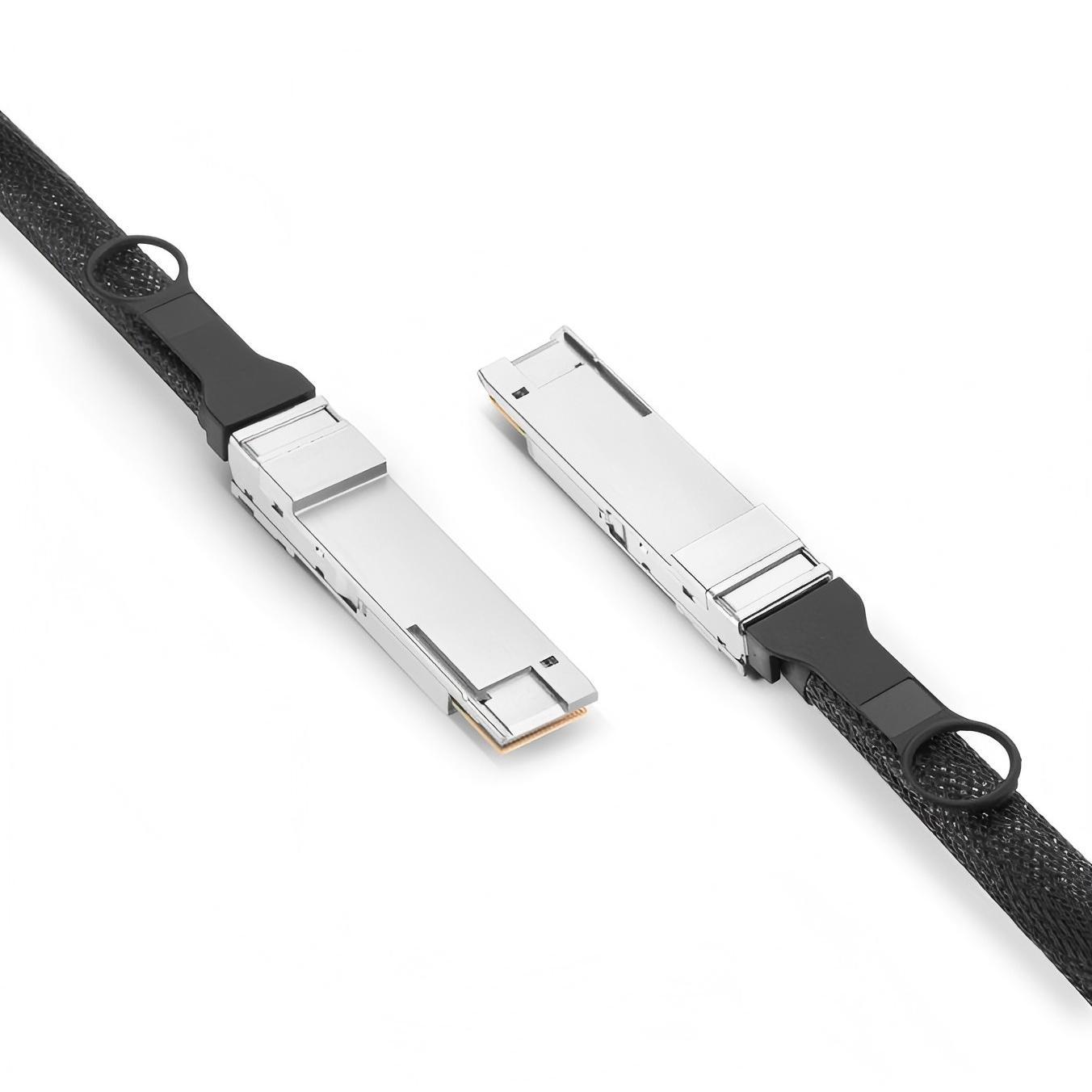

The 400G QSFP-DD DAC provides a QSFP-DD-to-QSFP-DD copper direct-attach solution and it is suitable for very short links and offer a cost-effective way to establish a 400-Gigabit link between QSFP-400G ports of switches/routers within racks and across adjacent racks. This DAC is designed with ultra-low loss materials, square rings, twisted pair cable 8 wires and shell extension construction for superior mechanical properties and bending performance. It is tested in actual switching systems to ensure optimal signal integrity and the best end-to-end performance. KEXINT currently offers 400G QSFP-DD DAC in lengths of 0.5, 1, 1.5, 2, 2.5, and 3 meters, ideal for SDN, ML, and Cloud Computing.
Specifications
| Cisco Compatible | QDD-400-CU1M | Vendor Name | KEXINT |
| Form Factor | QSFP-DD to QSFP-DD | Max Data Rate | 400Gbps |
| Media | Copper | Cable Type | Passive Twinax |
| Cable Length | 1m (3ft) | Wire AWG | 30AWG |
| Minimum Bend Radius | 33mm | Power Consumption | ≤0.1W |
| Jacket Material | PVC | Temperature | 0 to 70°C (32 to 158°F) |
| Modulation Format | 8x 50Gb/s PAM4 | Application | 400G Ethernet |
| Protocols | IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0 | Warranty | 1 Years |
Connectivity Solutions

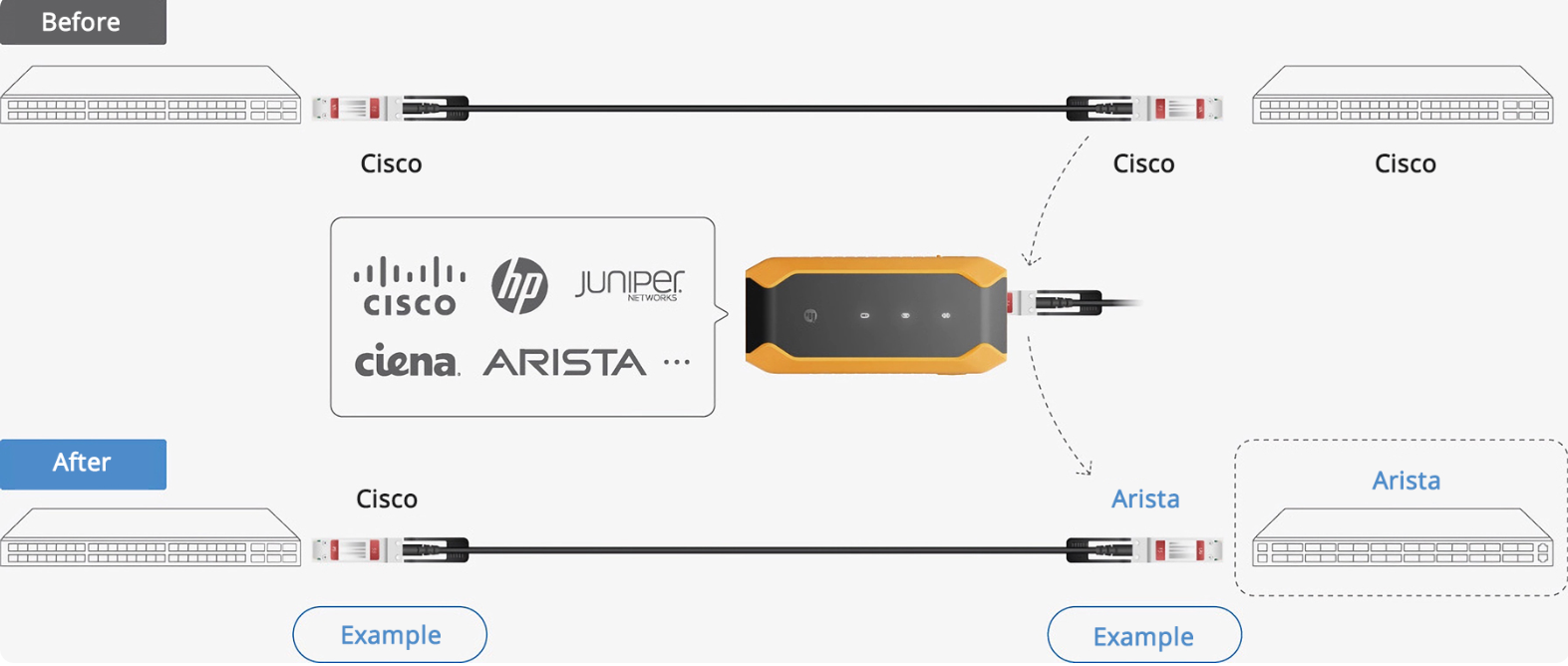

KEXINT offers the ability to configure the pre-set compatibility of either connector of the DAC cable online to connect Cisco to Arista, Dell to Juniper, and any other mixes of configurations.

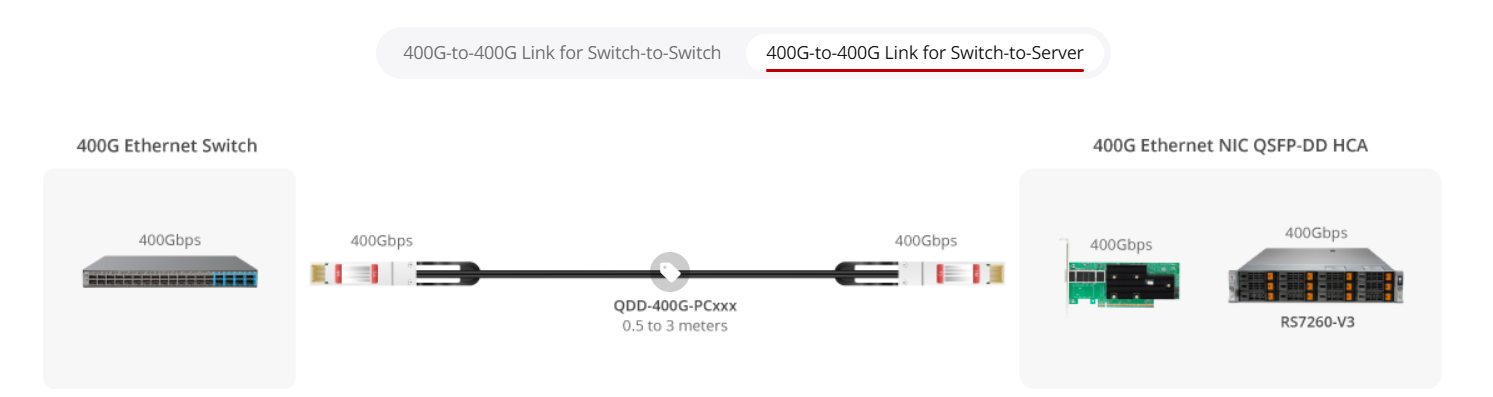

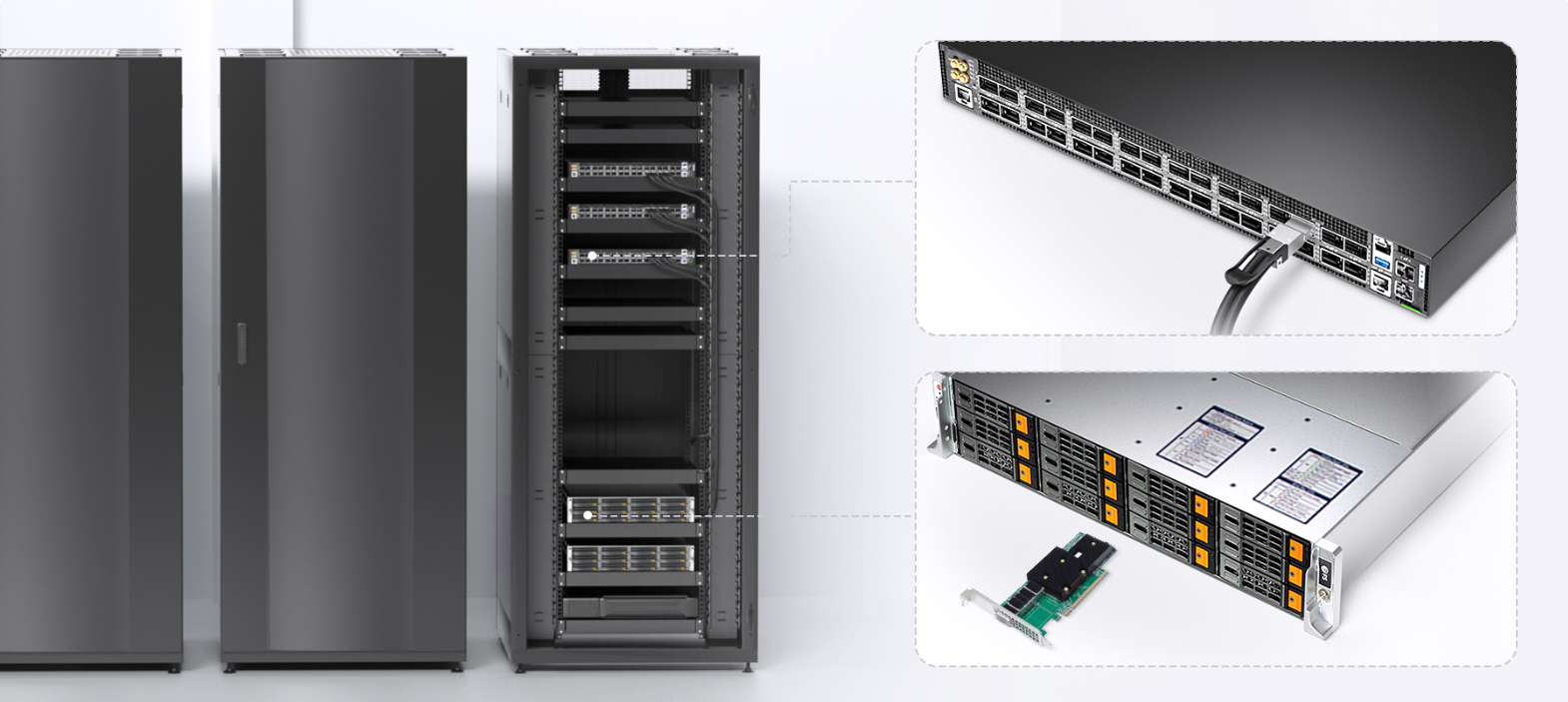

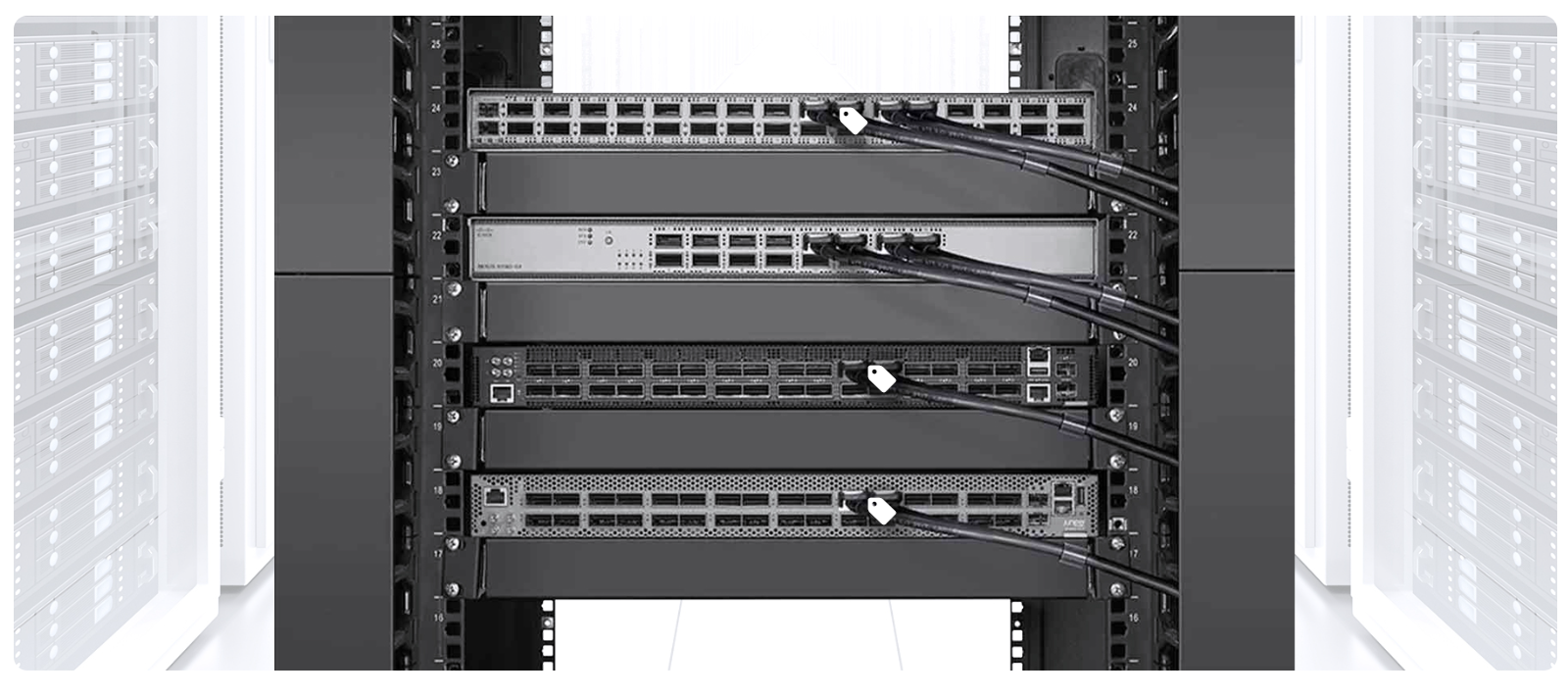

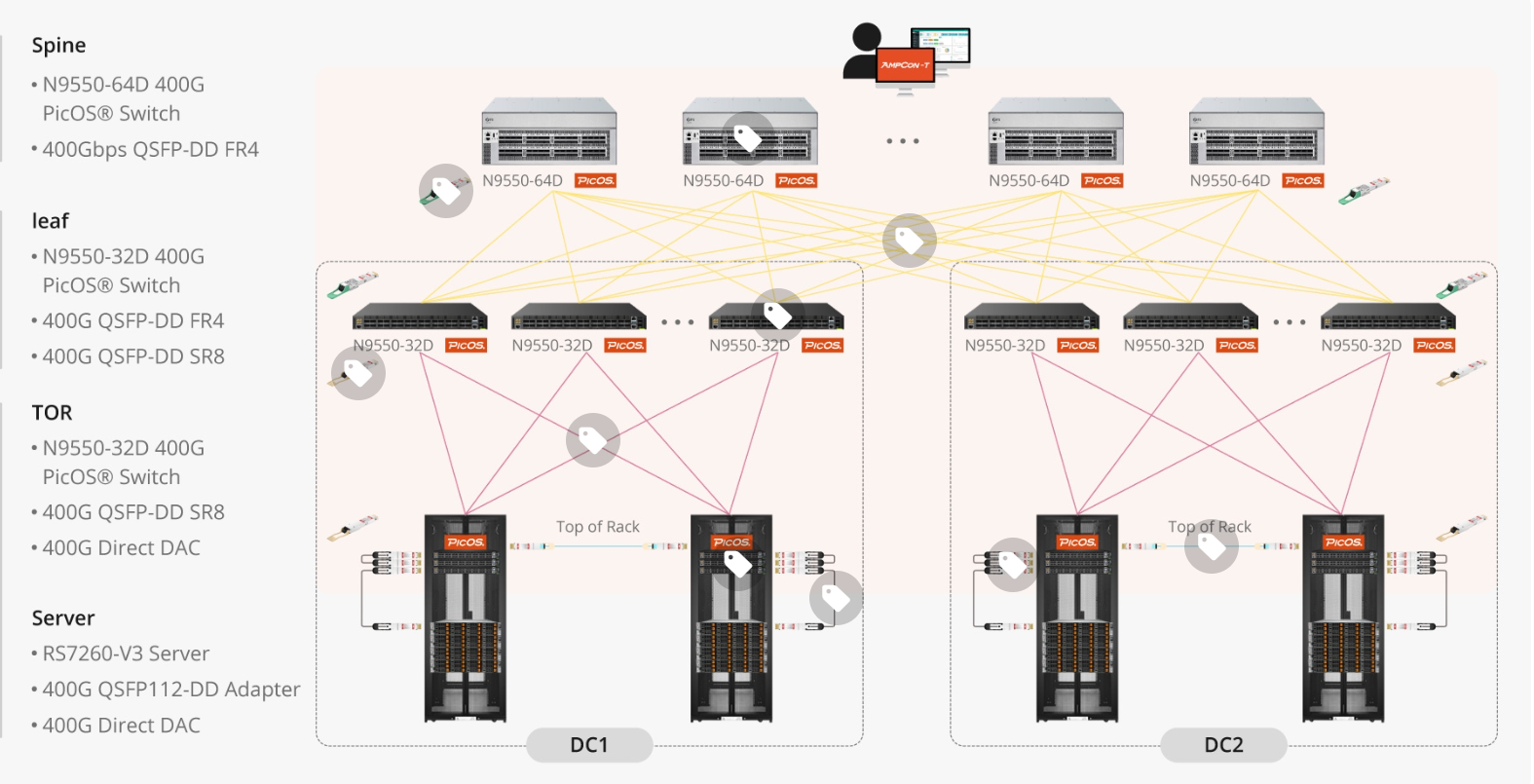

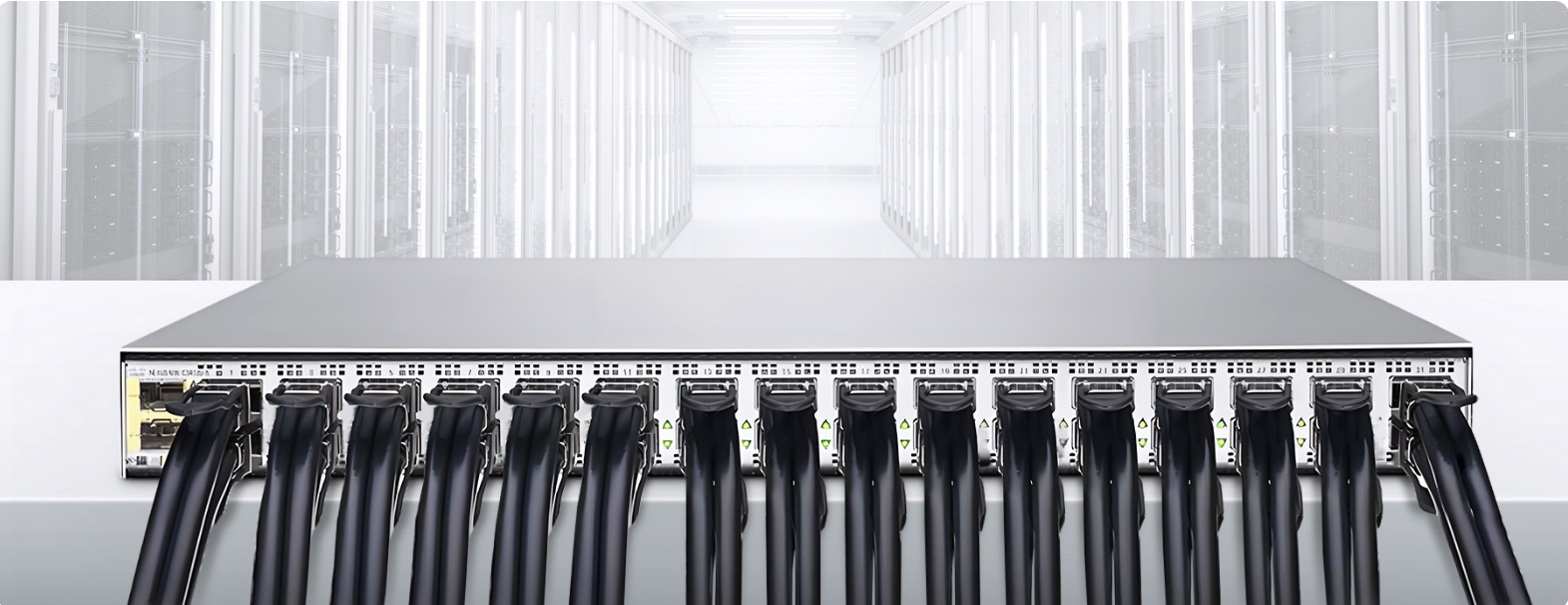

400G DAC is used for short-distance connection between ToR stwitch and switch/server. It has good natural heat dissipation effect, energy saving and environmental protection,and is an ideal choice for short-distance network deployment in large data centers.
