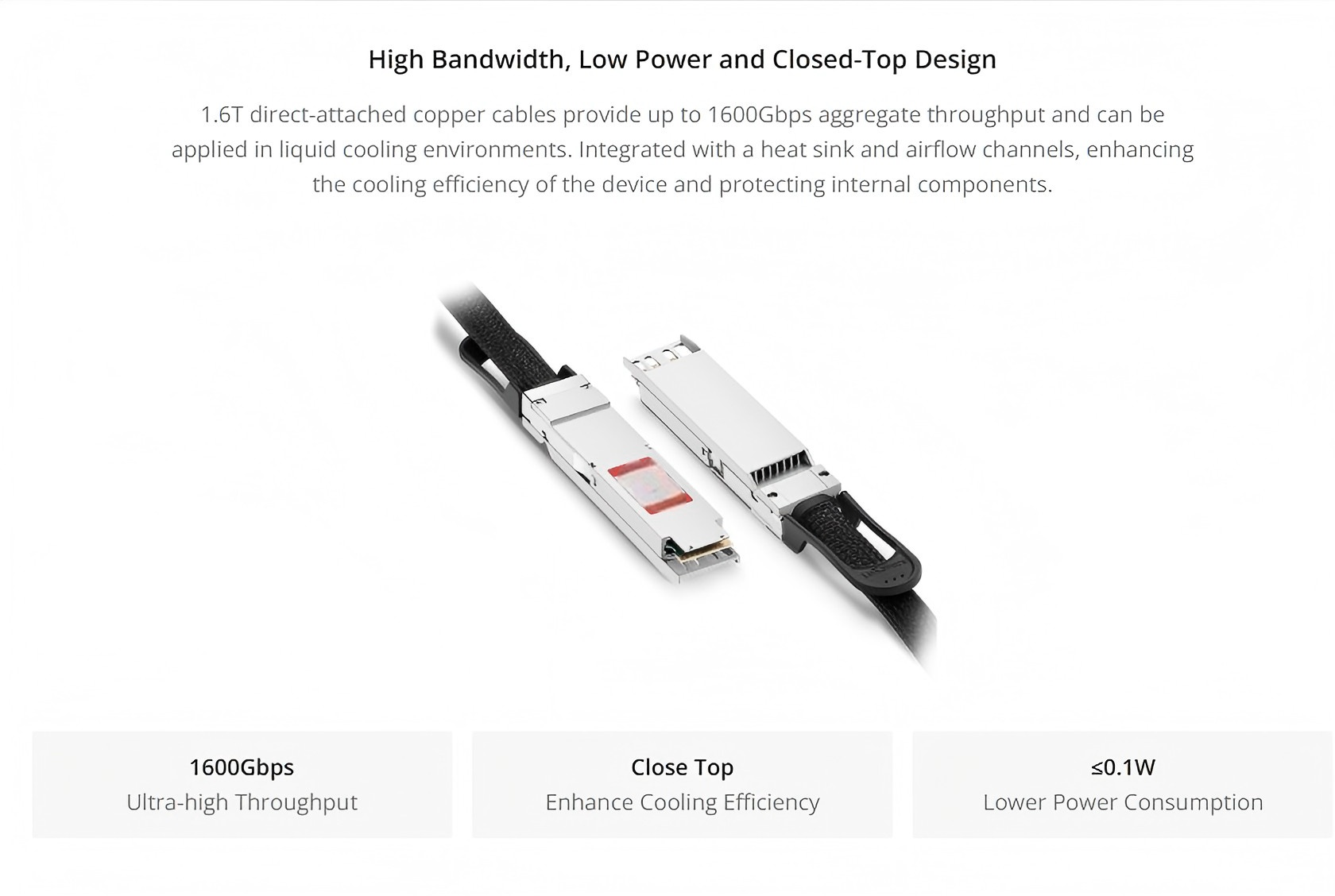

KEXINT's next-generation octal small form-factor pluggable 1.6T DAC offers industry-standard operations at 1600 Gbps, complying with IEEE 802.3. Built for 224 Gbps-PAM4, these robust cables offer superior mechanical durability and excellent shielding to minimize crosstalk and deliver better signal integrity (SI) performance at a higher Nyquist frequency. The OSFP specification is designed to support high-density applications and is well suited for High-Performance Computing (HPC) and machine learning (ML) architectures.
Specification
| Part Number | OSFP-1.6T-PC01 | Vendor Name | KEXINT |
| Form Factor | OSFP (Close Top) to OSFP (Close Top) | Max Data Rate | 1600Gbps |
| Media | Copper | Cable Type | Passive Twinax |
| Cable Length | 1m (3ft) | Wire AWG | 27AWG |
| Minimum Bend Radius | 60mm | Power Consumption | ≤0.1W |
| Jacket Material | PET |
Commercial Temperature Range
|
0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3, OSFP MSA | Modulation Format | PAM4 |
Feature
