Product Application1) Optimum cable structure, high fibre density.
2) Accurate fibre length balance, ensure stable performance.
3) No gel in cable core for water blocking, low carbon and environmental.
4) Structure Innovation in sheath, enhancing the blowing performance.
Standards1) Unless otherwise specified in this specificaion, all requirements shall be mainly in accordance with the following standard specificaions
2) Optical fibre ...ITU-TG.652、IEC60793-2-50
3) Optical cable..lEC 60794-5、IEC 60794-1-2

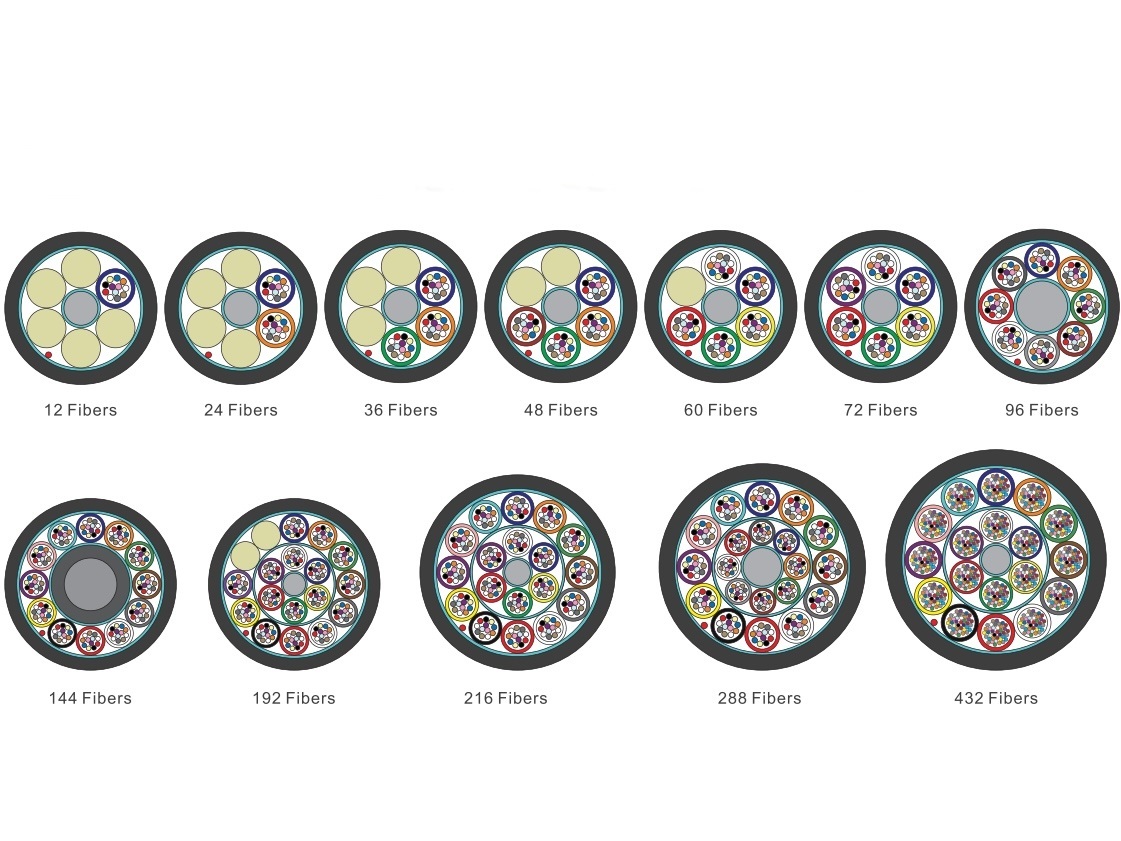

Structure and Techincal Parameters
|
Cable Type
|
Layer Cable
|
|
Fiber Count
|
12-72
|
96
|
144
|
192
|
216
|
288
|
432
|
|
Number of fiber/tube
|
12
|
12
|
12
|
12
|
12
|
12
|
24
|
|
Number of loose tube
|
1-6
|
8
|
12
|
6+10
|
6+12
|
9+15
|
6+12
|
|
Water bllocking method
|
FRP
|
Water Blocking yarn
|
|
Cable Core
|
Water Blocking yarn
|
|
Thickness of HDPE sheath
|
Nominal: 0.45mm,Minimum 0.36mm
|
|
Overall Diameter(±0.2)mm
|
5.6
|
6.4
|
7.9
|
7.6
|
7.6
|
9.4
|
11.4
|
|
Weight(kg/km)
|
27
|
40
|
57
|
55
|
55
|
78
|
105
|
|
Min.Bending radius Static/Dynamic
|
12 outer Ф /20 outer Ф
|
|
Cabled Fiber Attenuation
|
G.652D:0.35dB/km max @1310nm 0.22dB/km max @1550nm
|
|
Temperature range(℃)
|
Storage
|
-20~+50
|
-20~+50
|
-20~+50
|
-20~+50
|
-20~+50
|
-20~+50
|
-20~+50
|
|
Installation
|
-5~+50
|
-5~+50
|
-5~+50
|
-5~+50
|
-5~+50
|
-5~+50
|
-5~+50
|
|
Operation
|
-40~+70
|
-40~+70
|
-40~+70
|
-40~+70
|
-40~+70
|
-40~+70
|
-40~+70
|
|
Cable service life(estimate value)
|
25 year
|
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
