Product Application1) Used in optical connections in optical communication equipment rooms and optical distribution frames
2) Used in optical connections in optical apparatus and equipments
Features1) Good mechanical and environmental characteristics
2) The mechanical characteristics meet the requirements of relevant standards
3) Meet various requirements of market and clients

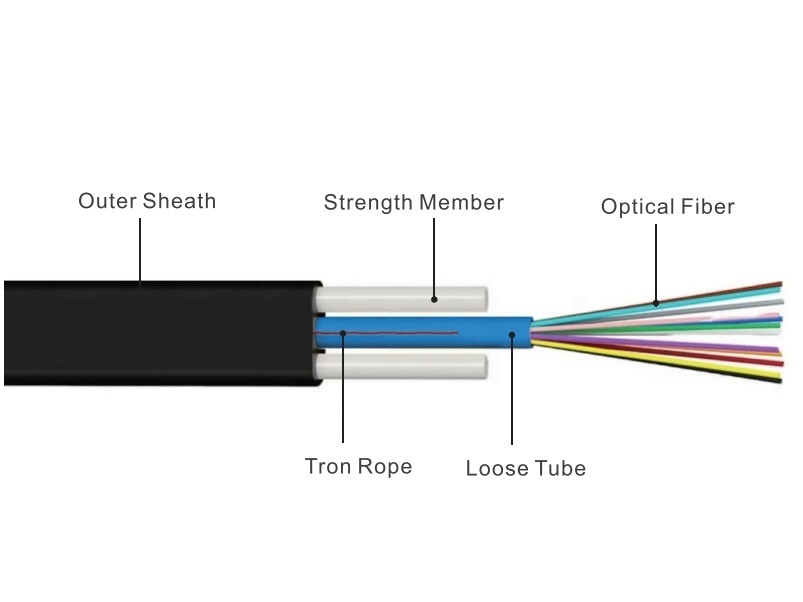

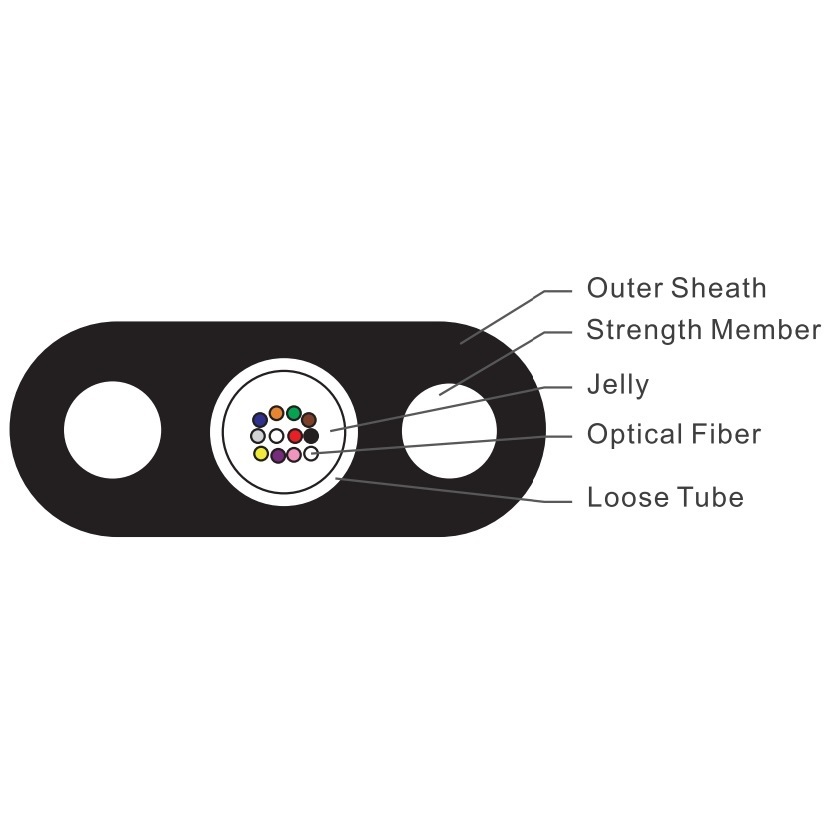

Structure and Technical Parameters
|
Fiber Count
|
Cable
Dimension
(mm)
|
Cable
Weight
(kg/km)
|
Tensile
(N)
|
Crush
(N/100mm)
|
Min.bend Radius
(mm)
|
Range of Temperature(°C)
|
|
Long Term
|
Short Term
|
Long Term
|
Short Term
|
Dynamic
|
Static
|
|
2-12
|
3.0*6.0
|
25
|
400
|
800
|
1000
|
2000
|
20D
|
10D
|
-20-+60
|
|
2-24
|
4.0*8.0
|
36
|
400
|
1200
|
1000
|
2000
|
20D
|
10D
|
|
Note: D is outer diameter of the round tale.
|
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
