Product Application1) Used in access network or as access cable from outdoor to indoor in customer premises network
2) Used as access building cable
Features1) Good mechanical and environmental characteristics
2) Flame retardant characteristics meet the requirements of relevant standards
3) The mechanical characteristics meet the requirements of relevant standards
4) Soft, flexible, easy to splice, and with big capacity data transmission
5) Meet various requirements of market and clients

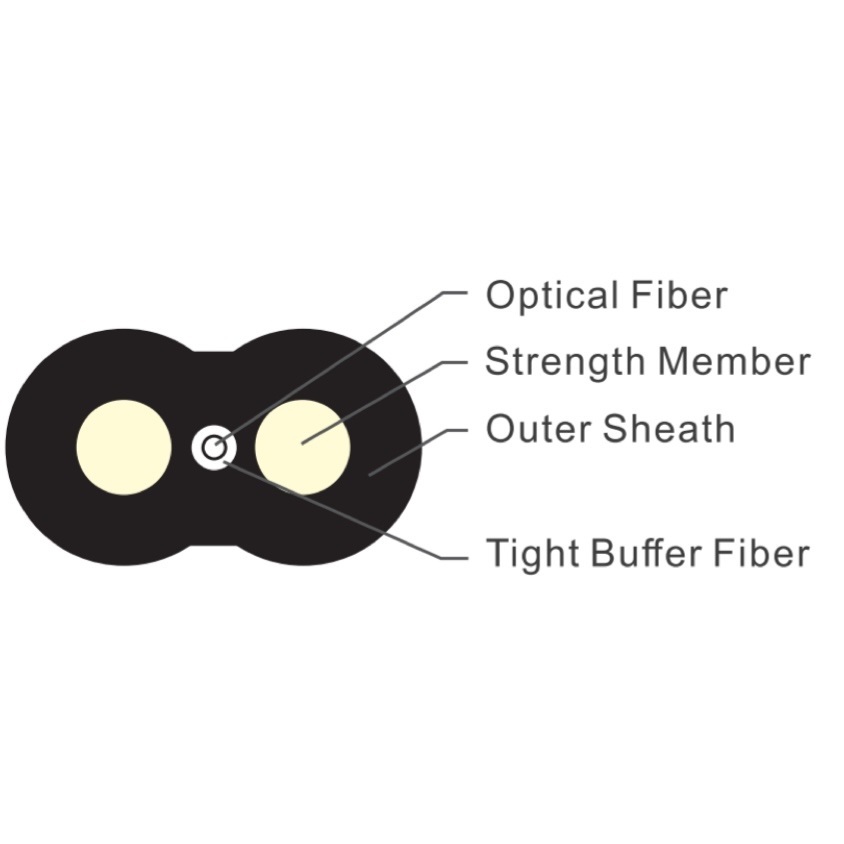

Structure and Technical Parameters
|
Fiber Count
|
Cable
Dimension
(mm)
|
Cable
Weight
(kg/km)
|
Tensile
(N)
|
Crush
(N/100mm)
|
Min.bend Radius
(mm)
|
Range of Temperature(°C)
|
|
Long
Term
|
Short
Term
|
Long
Term
|
Short
Term
|
Dynamic
|
Static
|
|
1
|
3.0*6.0
|
|
500
|
1000
|
1000
|
2200
|
20D
|
10D
|
-20-+60
|
|
1
|
4.0*7.0
|
|
500
|
1000
|
1000
|
2200
|
20D
|
10D
|
|
2
|
4.6*8.0
|
|
500
|
1200
|
1000
|
2200
|
20D
|
10D
|
|
Note: Thetensile and crush of the cable are accordance with the valuesin the table when the strenght member of FRP and Steel are used.
|
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
