Product ApplicationMainly used in wireless base station (BS) horizaontal and vertical cabling.
Features1) Good mechanical and environmental characteristics
2) Flame retardant characteristics meet the requirements of relevant standards
3) The mechanical characteristics meet the requirements of relevant standards
4) Soft, flexible, easy to splice, and with big capacity data transmission
5) Meet various requirements of market and clients

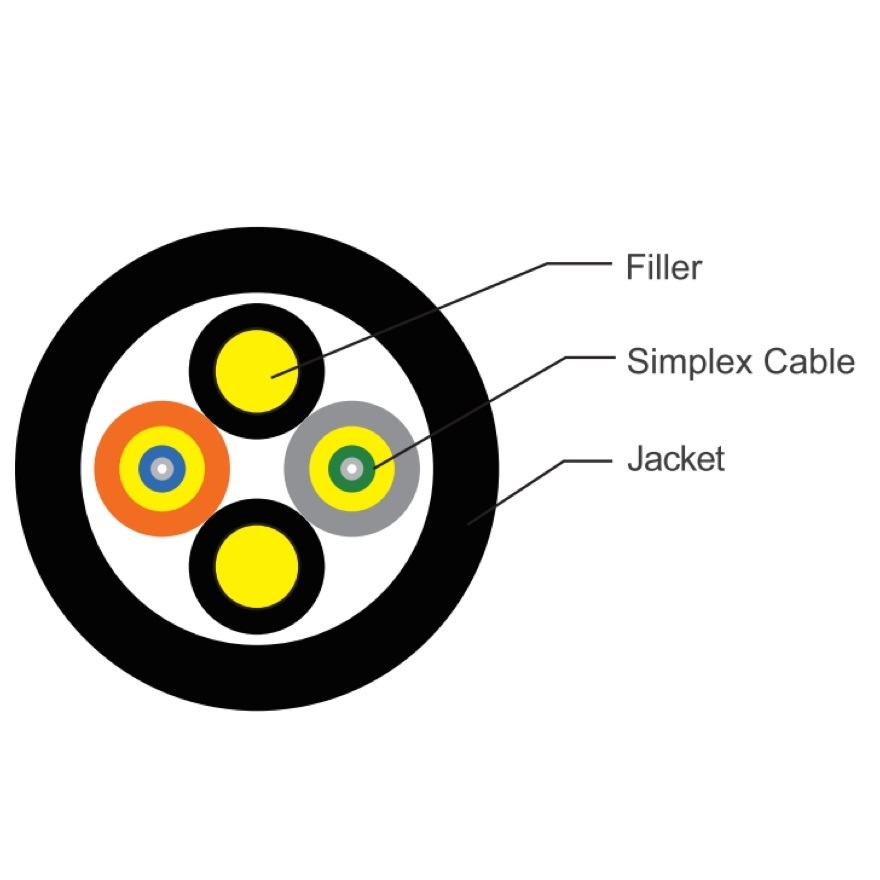

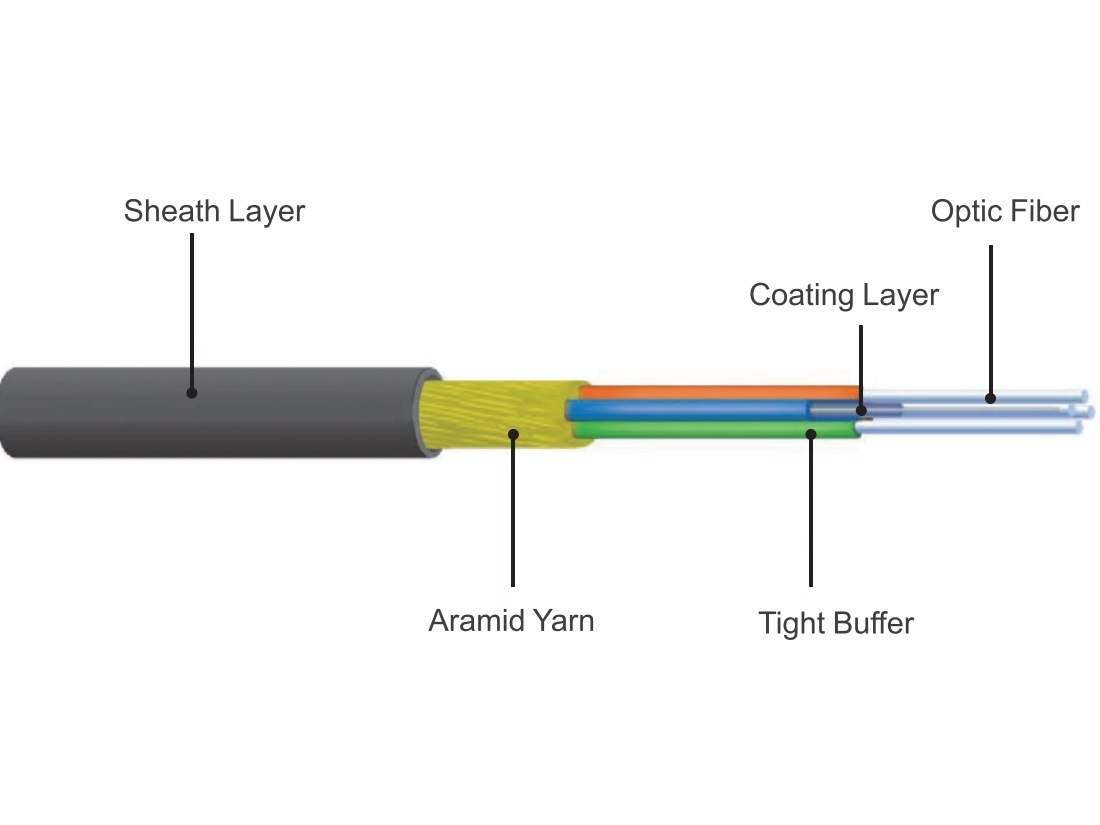

Structure and Technical Parameters
|
Fiber Count
|
Cable
Dimension
(mm)
|
Cable
Weight
(kg/km)
|
Tensile
(N)
|
Crush
(N/100mm)
|
Min.bend Radius
(mm)
|
Range of Temperature(°C)
|
|
Long
Term
|
Short
Term
|
Long
Term
|
Short
Term
|
Dynamic
|
Static
|
|
2
|
7.0
|
40
|
200
|
400
|
500
|
1000
|
20D
|
10D
|
-20-+60
|
|
Note: The cable dimension and weight are in accordance with the simplex cable of 2.0mm outer diameter.D is outer diameter of the round tale.
|
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
