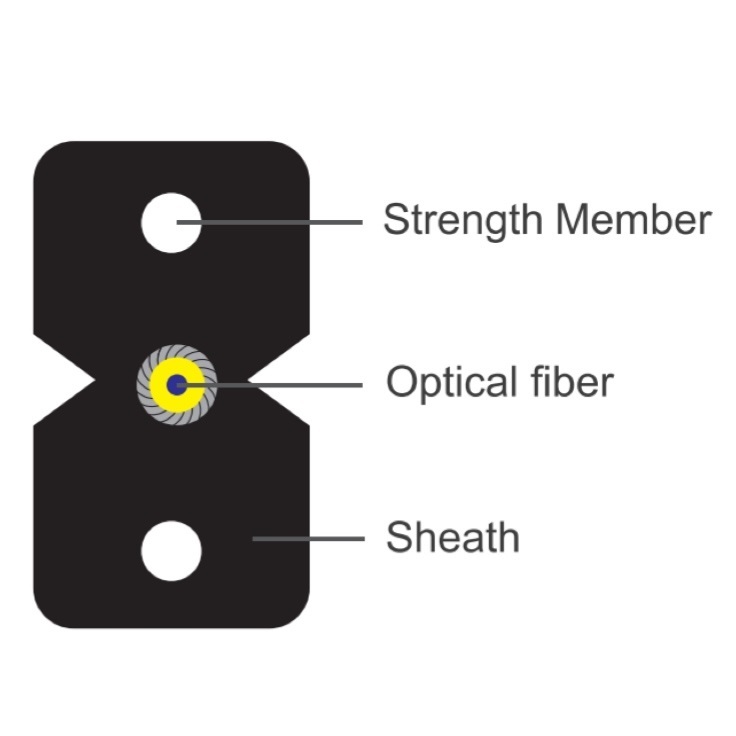

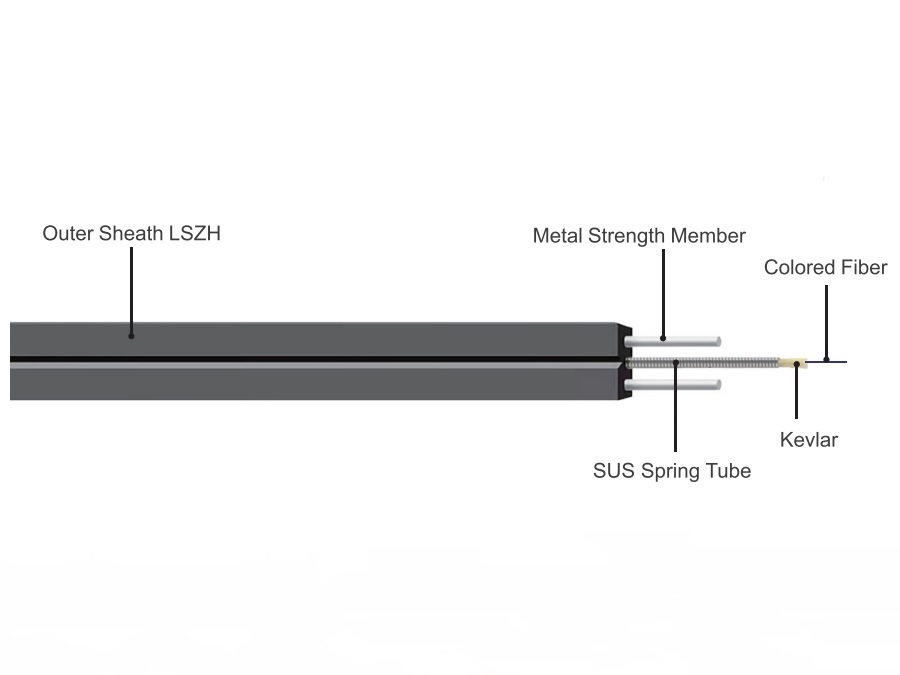

GJXKH Metal Butterfly Lead-in Fiber Optical Cable(FTTH drop Cable)

Product Application
The butterfly optical cable is the novel user access optical cable which combines the characteristics of the indoor soft optical cable and the self-suporting opical cable together, the it is the best alternative choice for solving the problems of FTTX network and plays the unique role in building networks, such as the intelligent building, the digital district, the campus network and the local area network.

Features
1) Poor rigidity, but good flexibility.
2) it can be laid with the weak current pipe in the same trench without introduction of the sensing current.
3) The reinforcing member can be non-metal FRP and KFRP (optional).
4) The outer sheaths prepared from low-smoke halogen-free material and the flame-retardant polvvinvl chloride are available.
5) Operation temperature:-20℃~+60℃.

The Order Information
1) Tight sleeve material type: V-PVC H-LSZH Y-Hytrel N-Nylon E-ETFE
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
    Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
