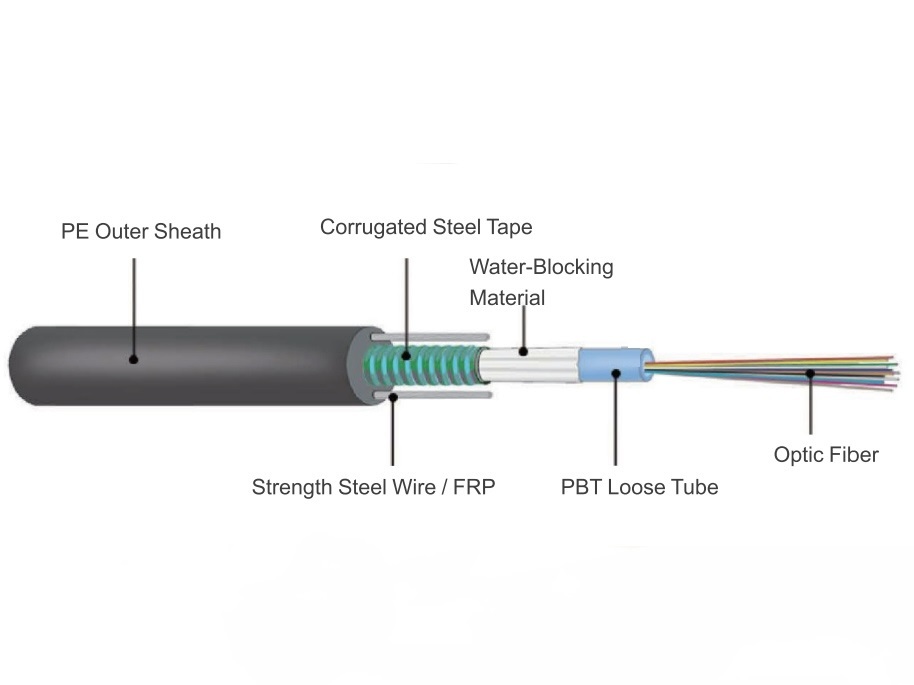

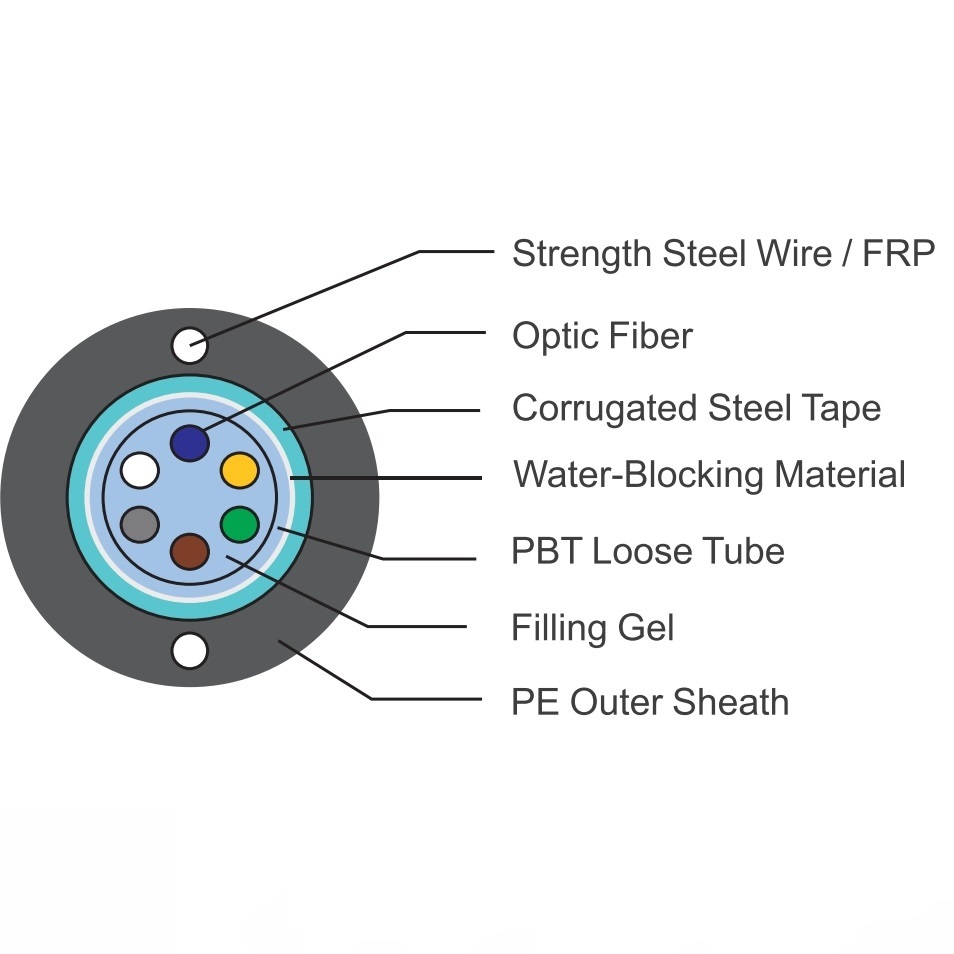

GYXTW Outdoor Unitube Fiber Optical Cable

Product Application
GYXTW Outdoor Unitube Fiber Optical Cable is applied to remote and interoffice communication; laying mode: pipe and overhead laying.
Features
1) Small transmission loss and low chromatic dispersion.
2) Excellent mechanical properties and environmental peformances due to reasonable design and precision control of the redundant length of the optical fiber in the loose tube.
3) Compact structure: and the optical fiber is ensured not to be subjected to the stress when the optical cable is taken in the rugged environment due to the structure of central loose tube.
4) The part in the cable conductor is full of water-proof cable paste: therefore the damp-proof and water-blocking effects of the optical cable can be ensured.
5) Good flexibility and capability of resisting bending.
6) 9/125 single-mode fiber.50/125 multimode fiber.62.5/125 multimode fiber and OM1.0M2.0M3 multimode fibers are available.
The Order Information
1) Tight sleeve material type: V-PVC H-LSZH Y-Hytrel N-Nylon E-ETFE
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
    Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
