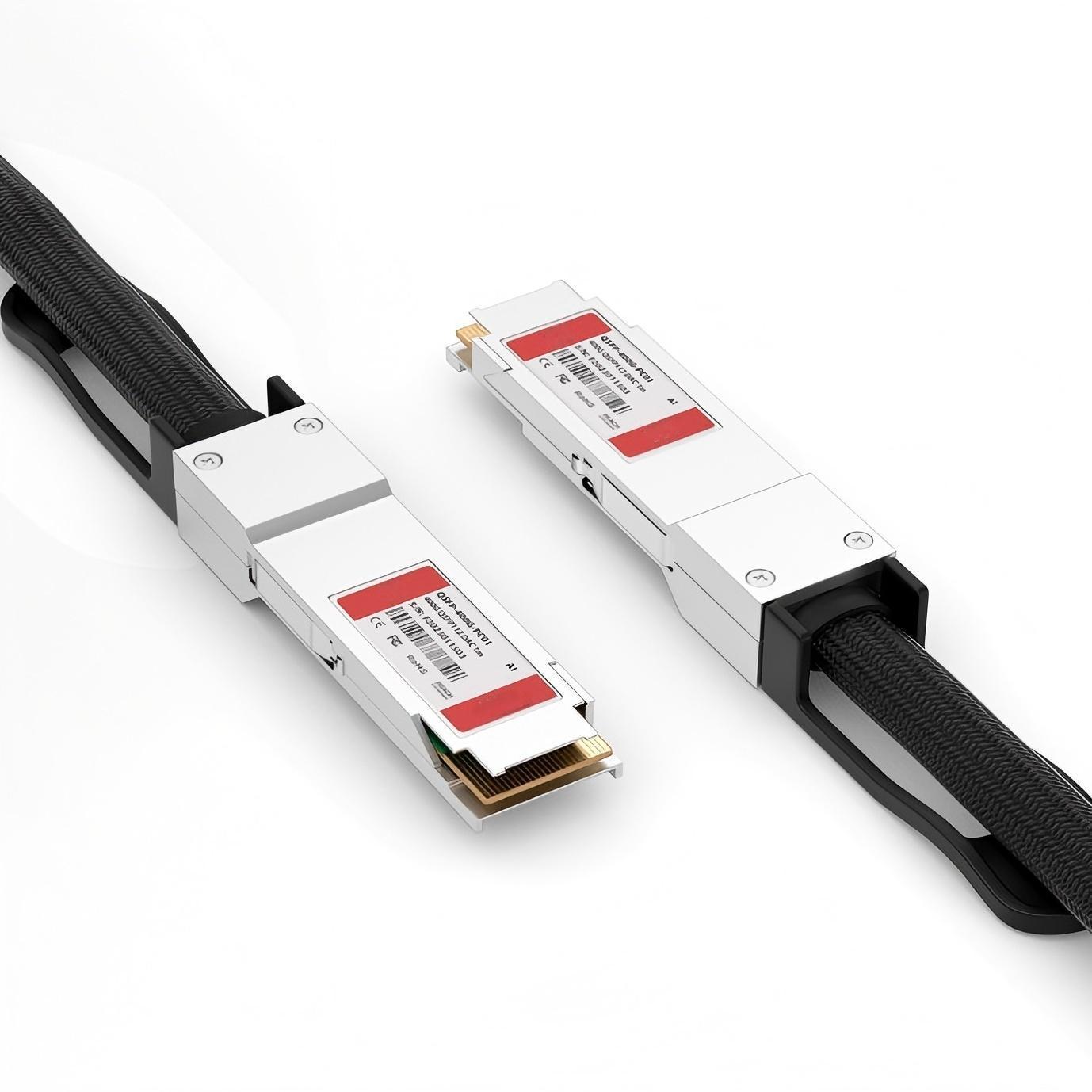

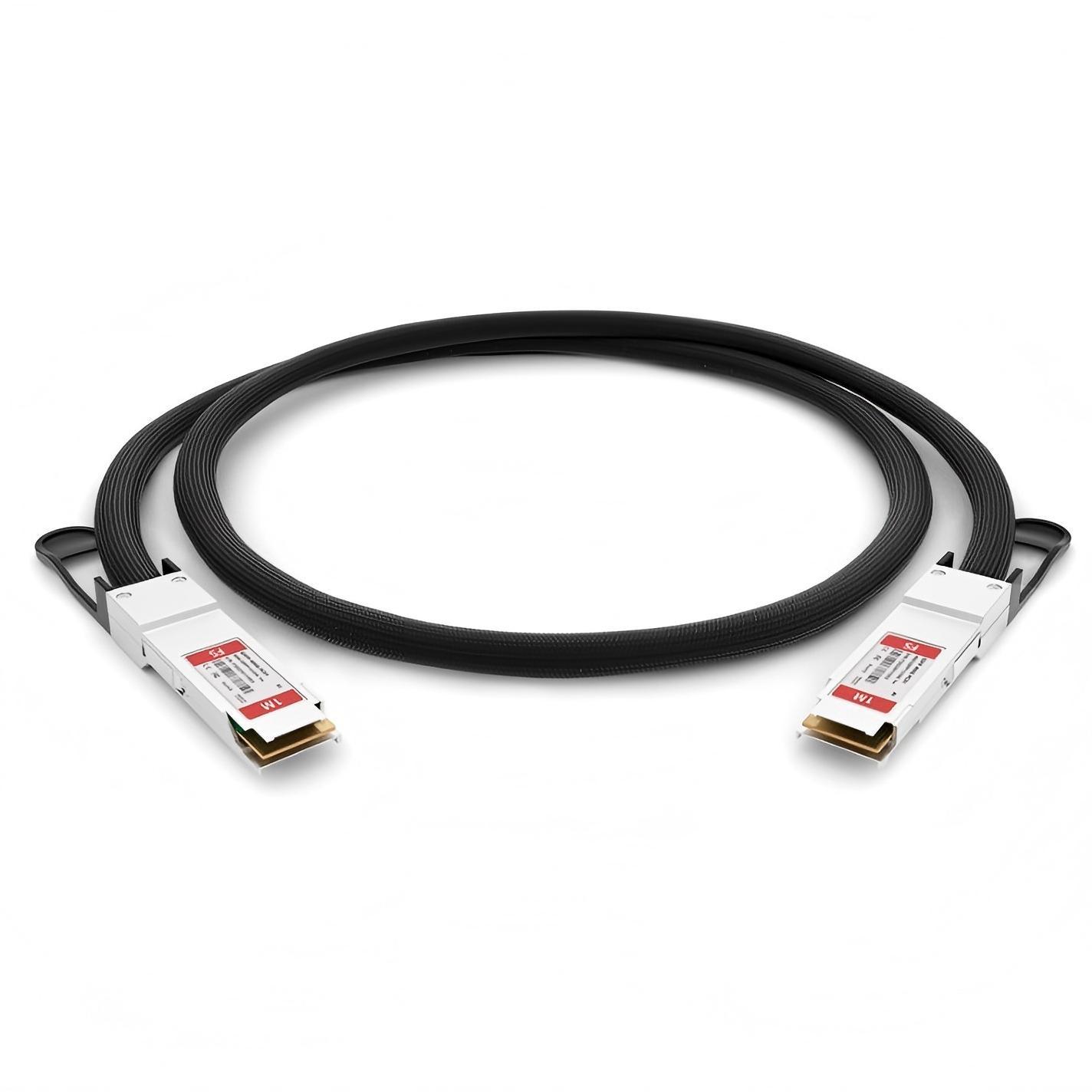

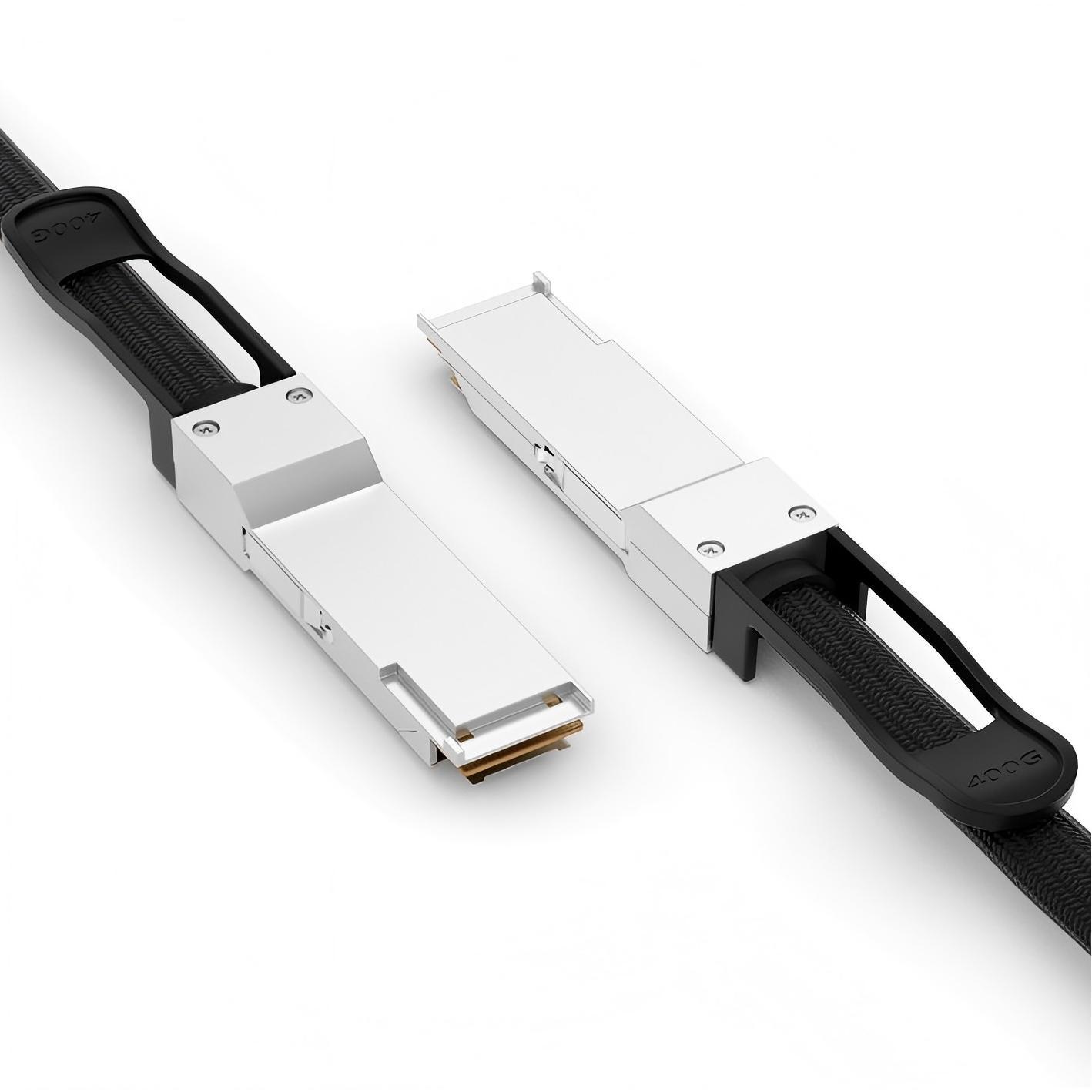

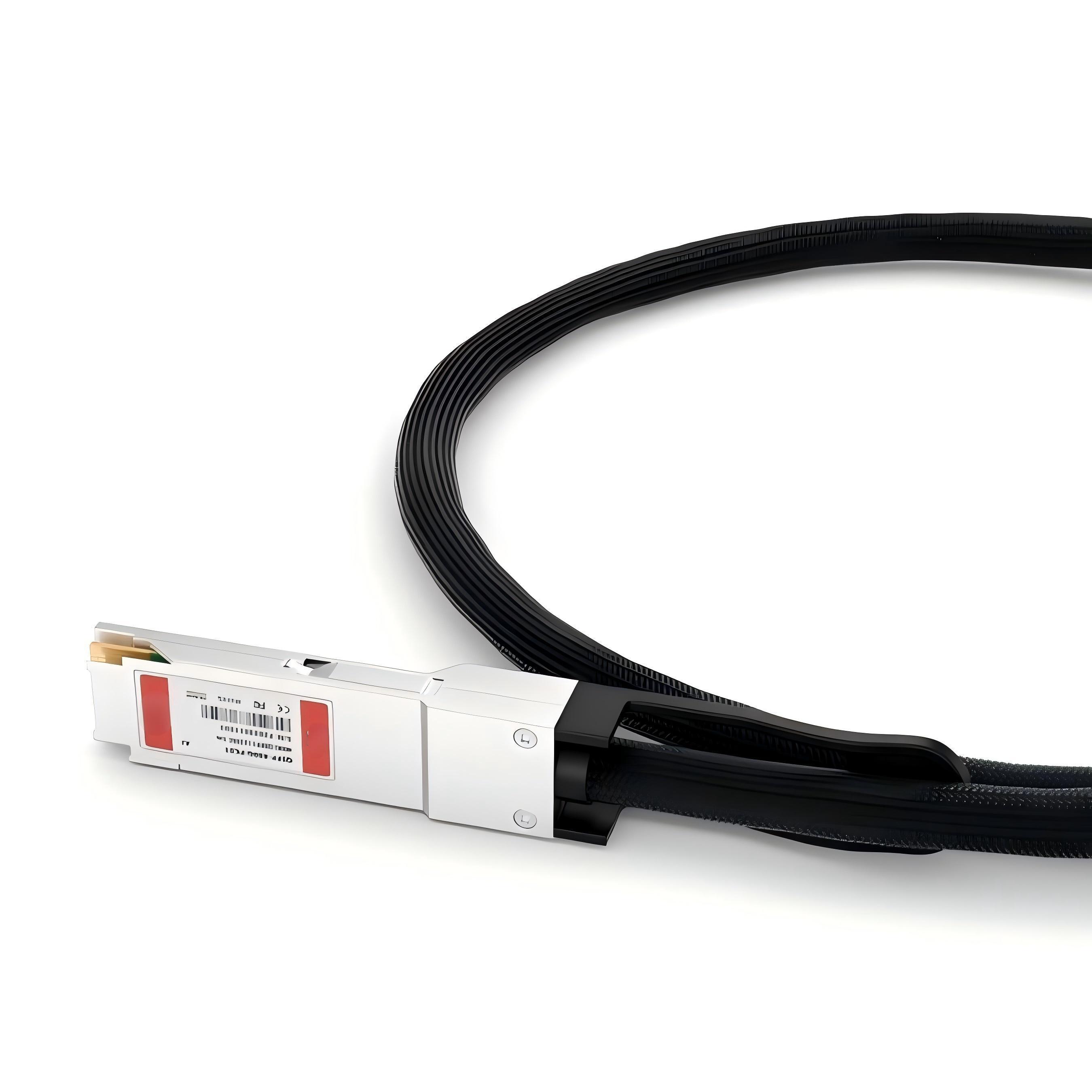

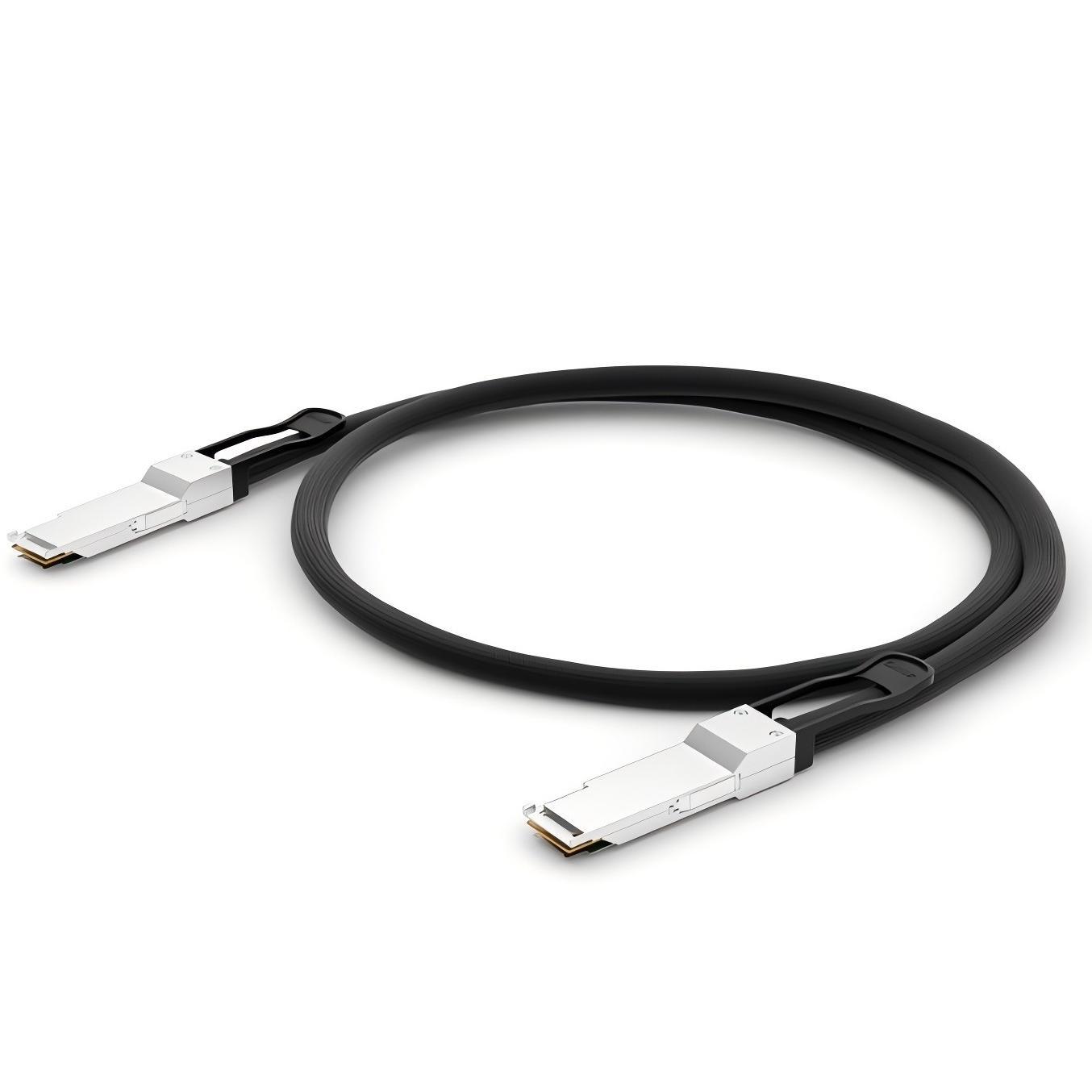

The 400G QSFP112 cable is a 4-channel parallel copper direct attach cable for storage, data center, and high performance computing connectivity. It offers 4 independent data transmission channels and 4 data receiving channels via the copper cable, the aggregate data rate of 400Gbps over 2 meters transmission can be achieved with this product. FS currently offers 400G QSFP112 DAC in lengths of 0.5, 1, and 1.5 meters, ideal for SDN, ML, and Cloud Computing.
Note: The FS P/N is changed from Q112-PC01 to QSFP-400G-PC01, but the product is the same. Only the FS P/N has been changed.
Specifications
| Part Number | QSFP-400G-PC01 | Vendor Name | kexint |
| Connector Type | QSFP 112 to QSFP 112 | Max Data Rate | 400Gbps |
| Minimum Bend Radius | 46mm | Wire AWG | 26AWG |
| Cable Length | 1m (3.28ft) | Jacket Material | PET |
| Cable Type | Passive Twinax | Compatible | Generic |
| Power Consumption | ＜0.1W | Power Supply | 3.3V |
| Temperature | 0 to 70°C (32 to 158°F) | Application | 400G Ethernet |
| Modulation Technology | 4x106.25Gb/s PAM4 | Protocol | CMIS 5.0 SFF-8024 |

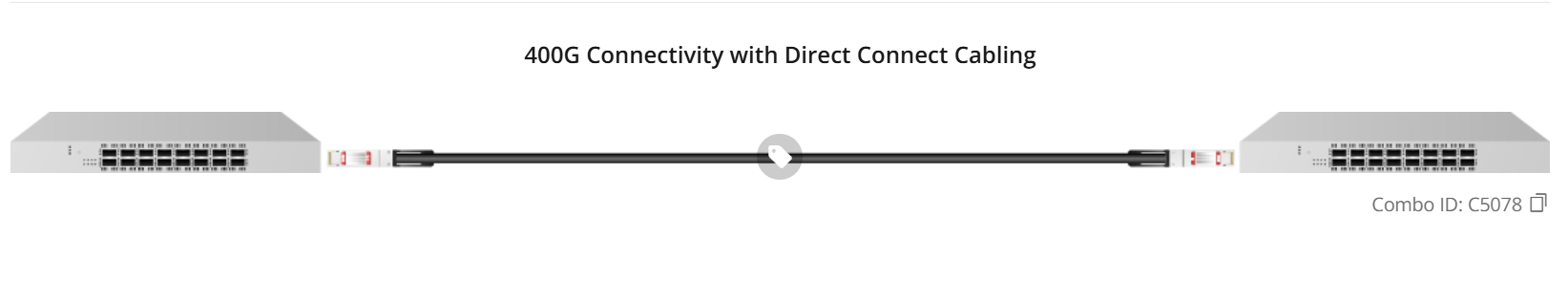

Connectivity Solutions
Features
