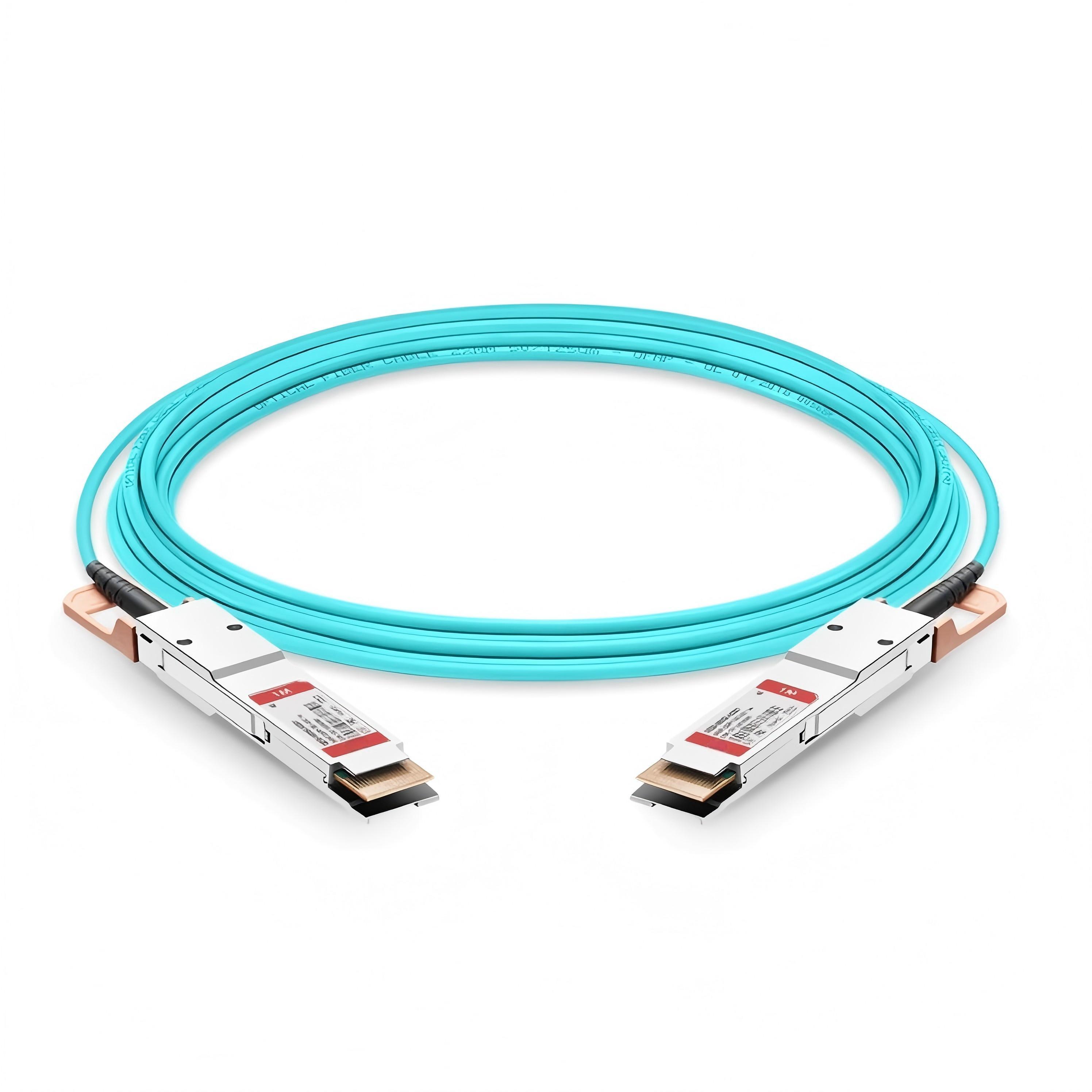

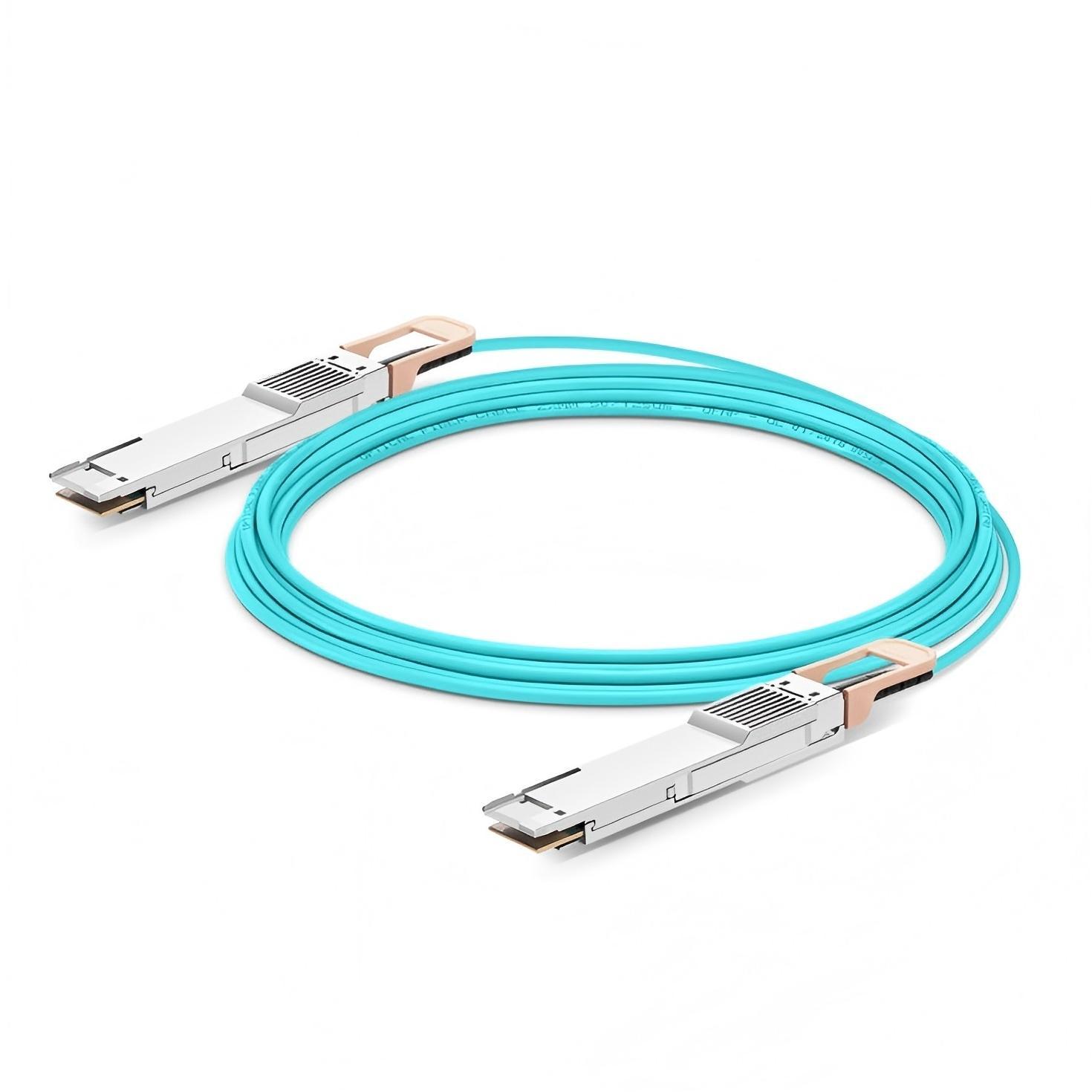

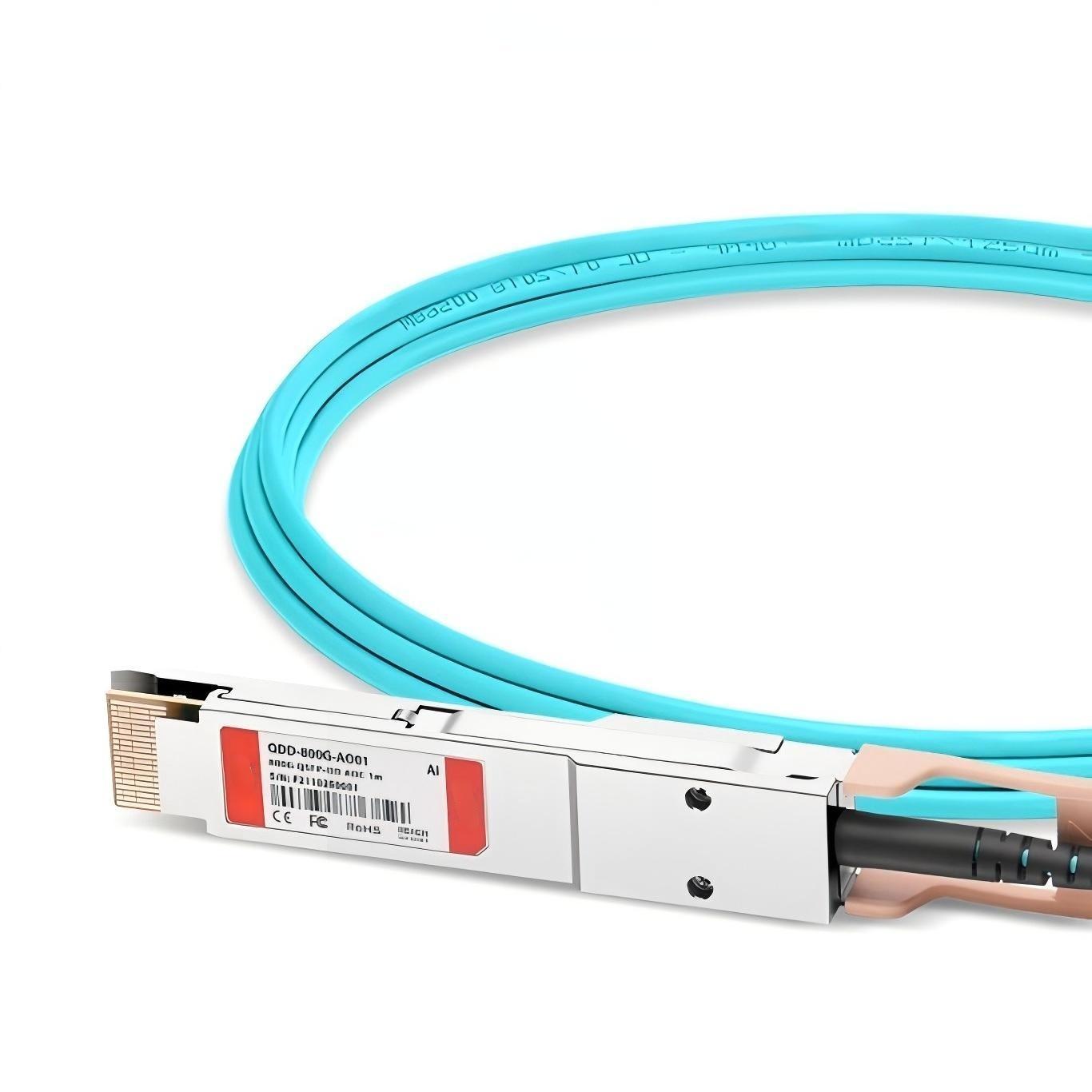

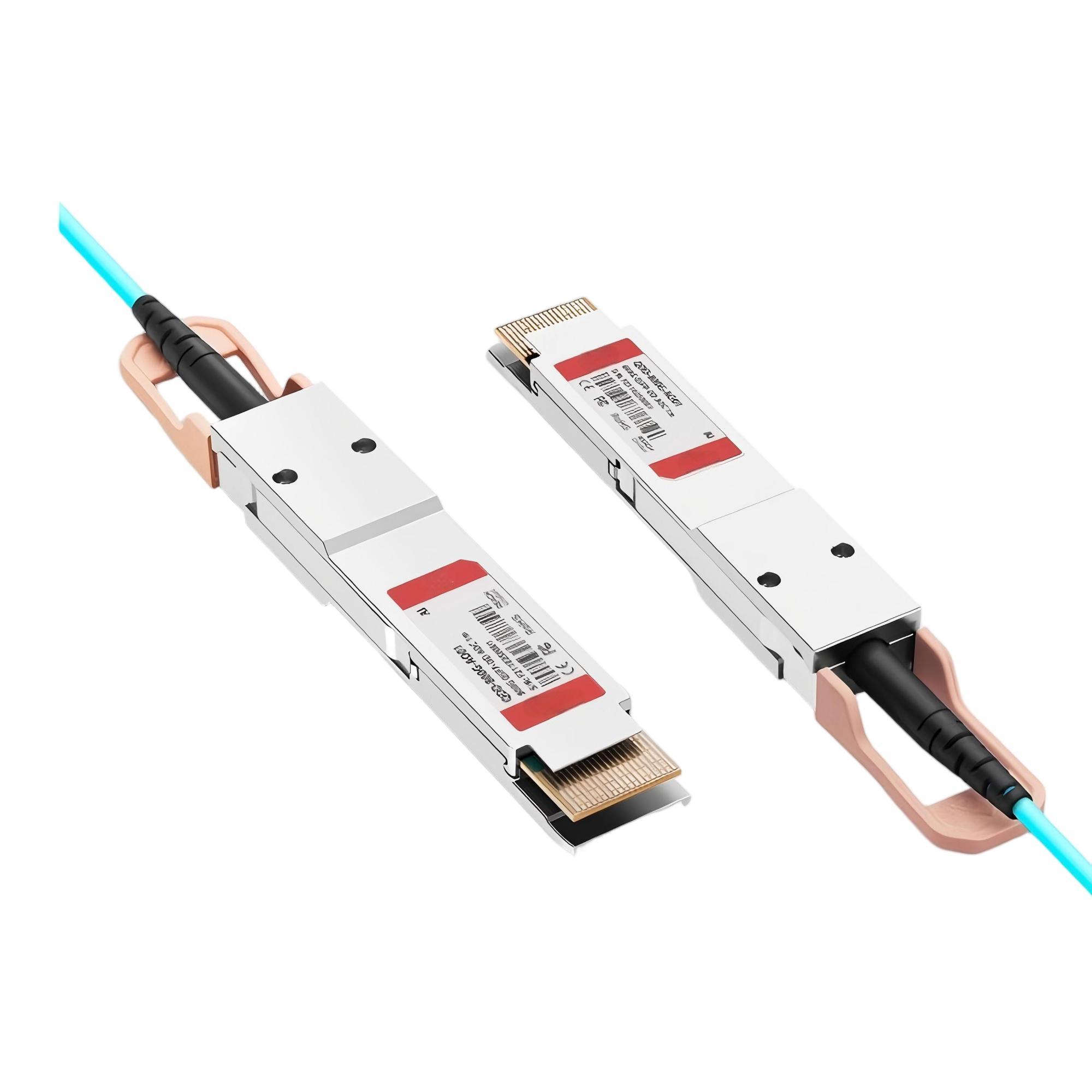

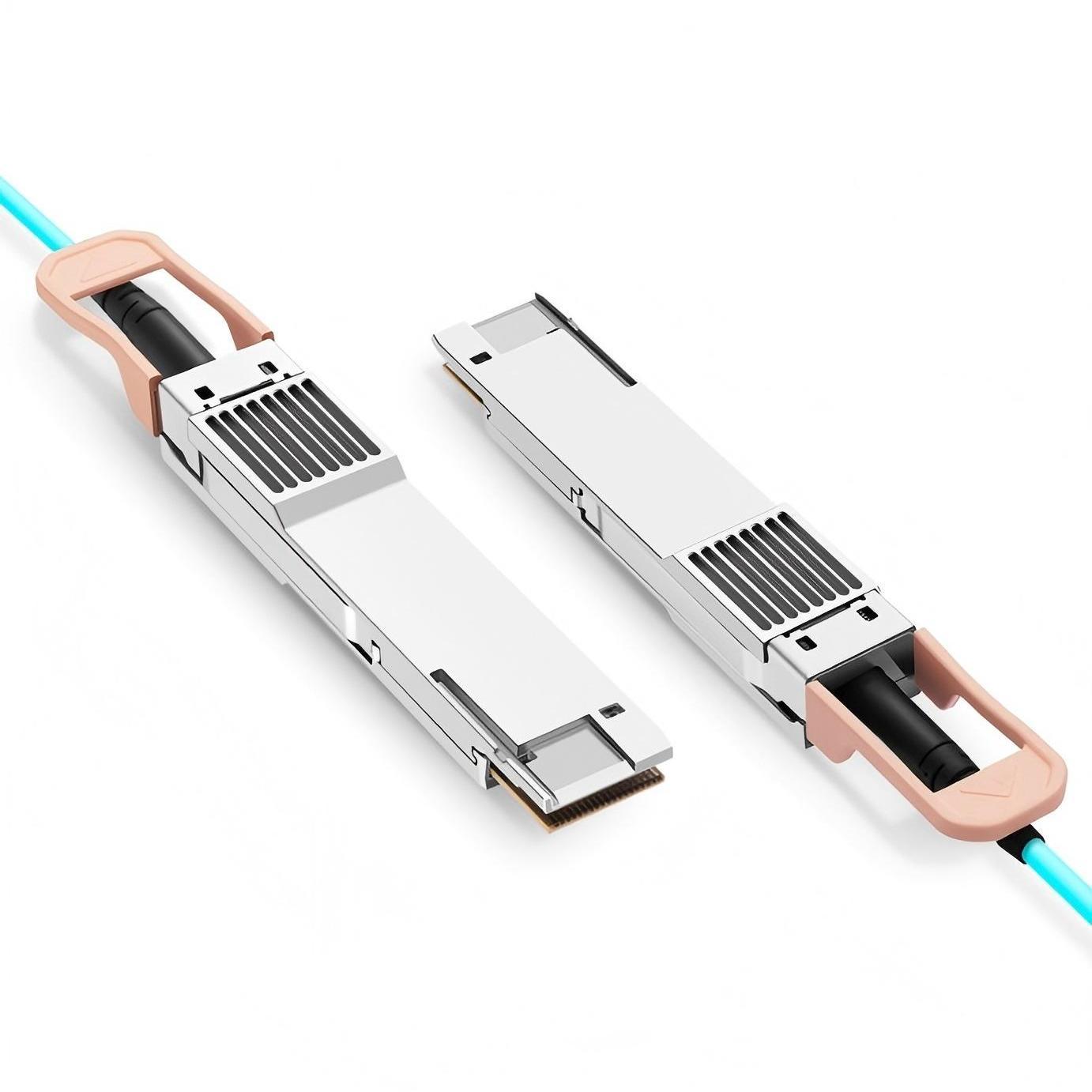

The 800G QSFP-DD Active Optical Cable is designed for 800 Gigabit Ethernet links over OM4 multimode fiber. This cable is compliant with IEEE 802.3ck, QSFP-DD HW Specification Rev 6.3, and CMIS Rev 5.0. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

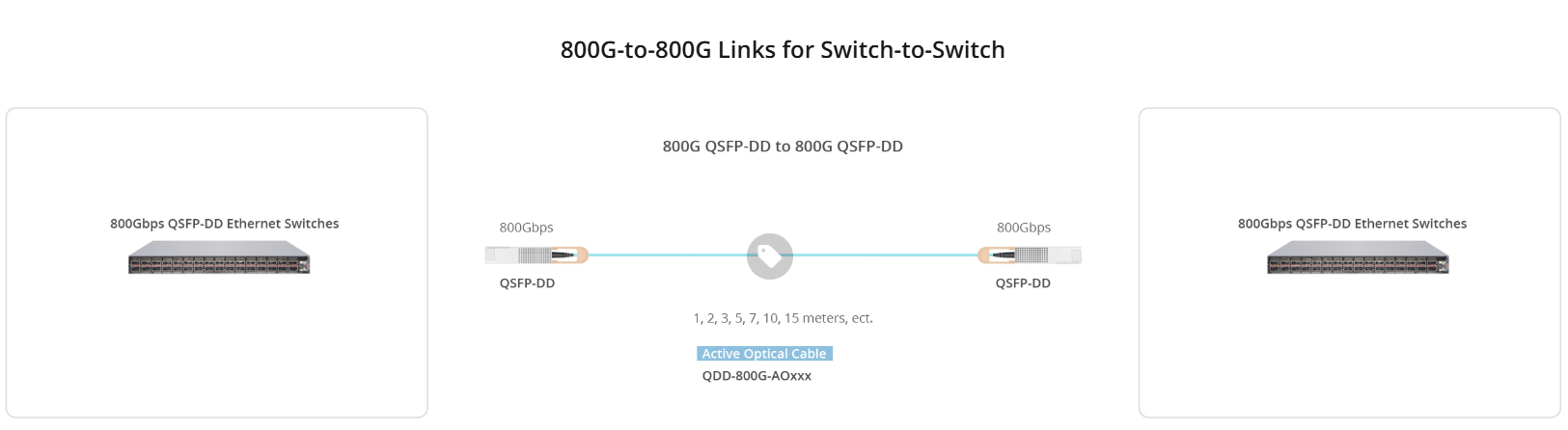

It provides a cost-efficient solution as compared to using discrete optical transceivers and optical patch cables and is suitable for 800G connections within racks and across adjacent racks.
Specifications
| Arista Compatible | A-D800-D800-1M | Vendor Name | KEXINT |
| Form Factor | QSFP-DD | Max Data Rate | 800Gbps |
| Cable Length | 1m (3ft) | Cable Type | Active Optical Cable |
| Wavelength | 850nm |
Minimum Bend Radius
|
30mm |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Power Consumption | 12W | DDM/DOM | DDM |
|
FEC
|
Supported | Modulation Format | PAM4 |
| Protocols | QSFP-DD HW Specification Rev 6.3, CMIS Rev 5.0 | Commercial Temperature Range | 0°C to 70°C |
| Application | Ethernet | Warranty | 1 YEAR |
