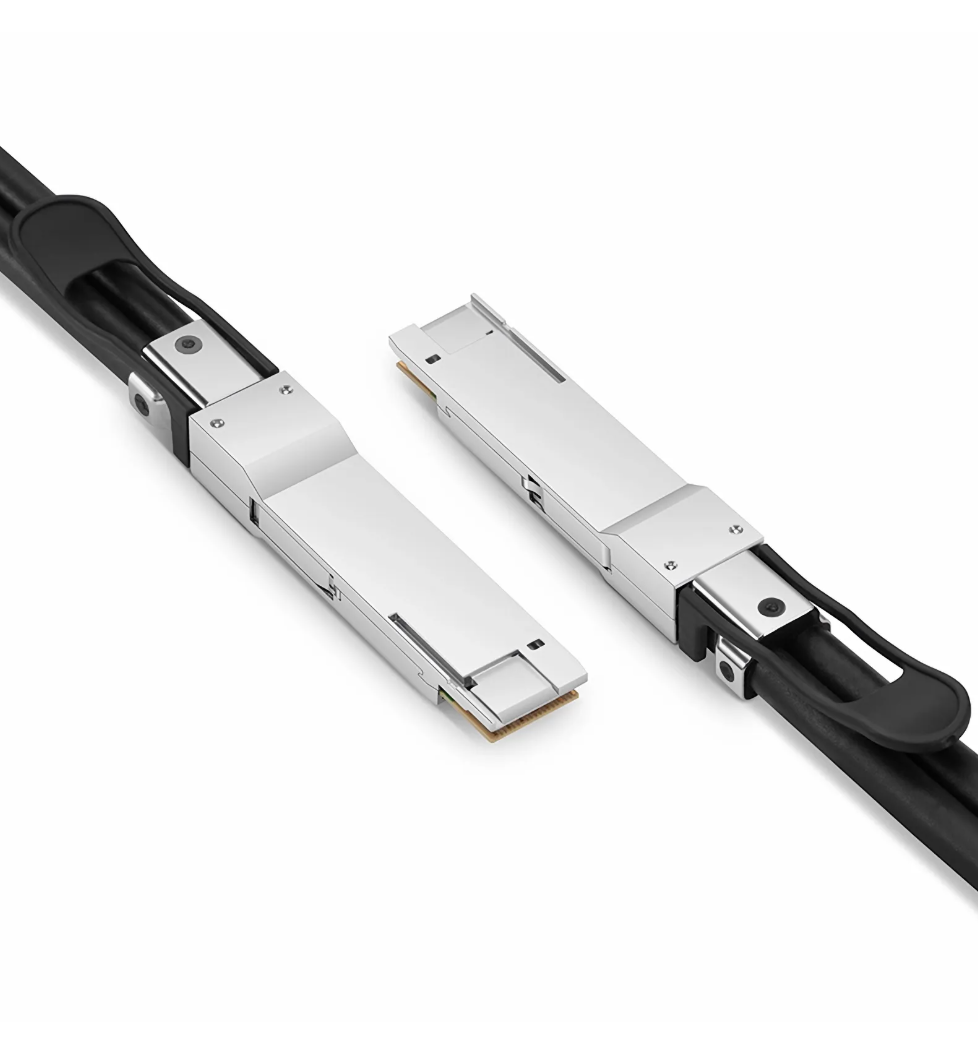

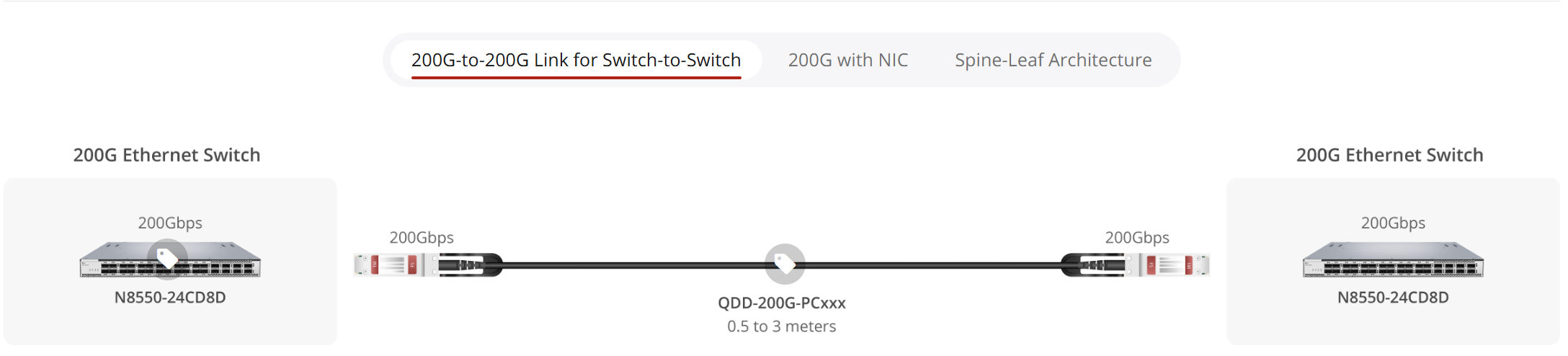

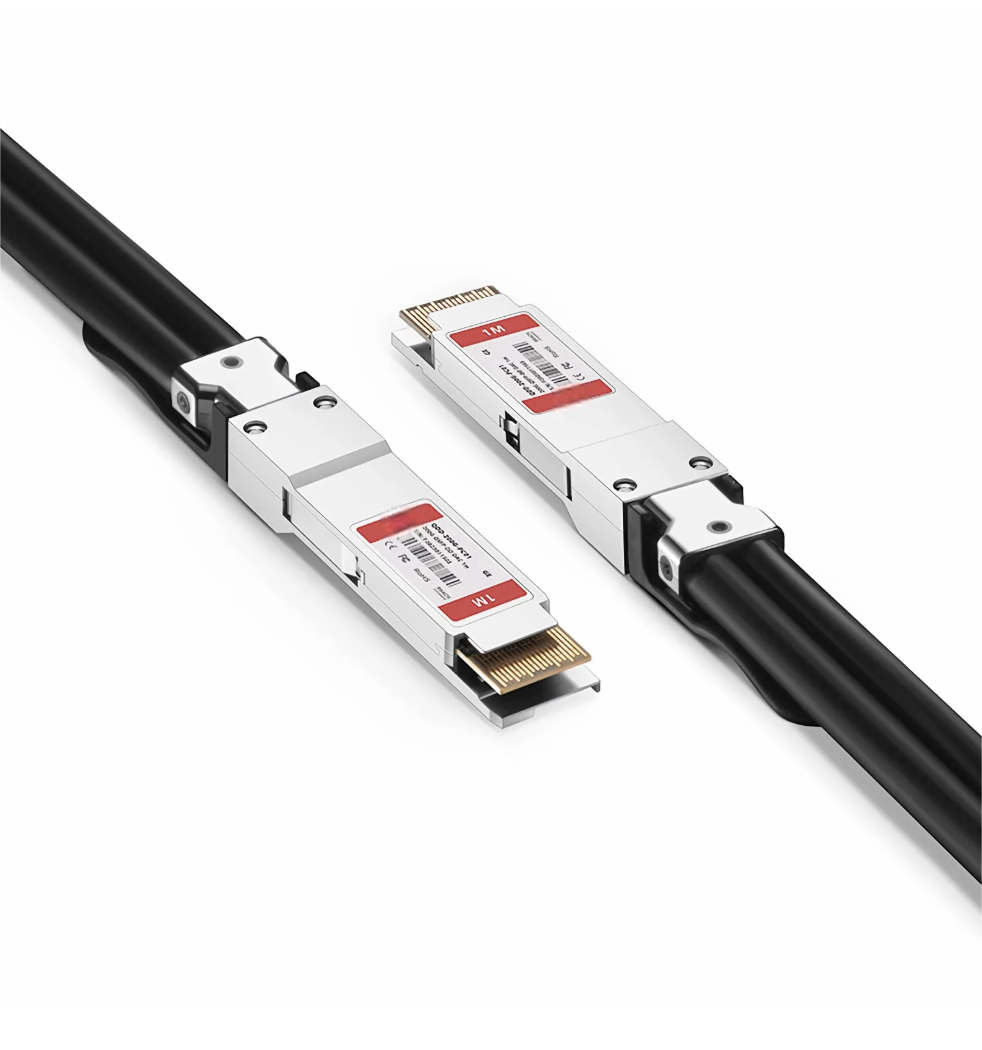

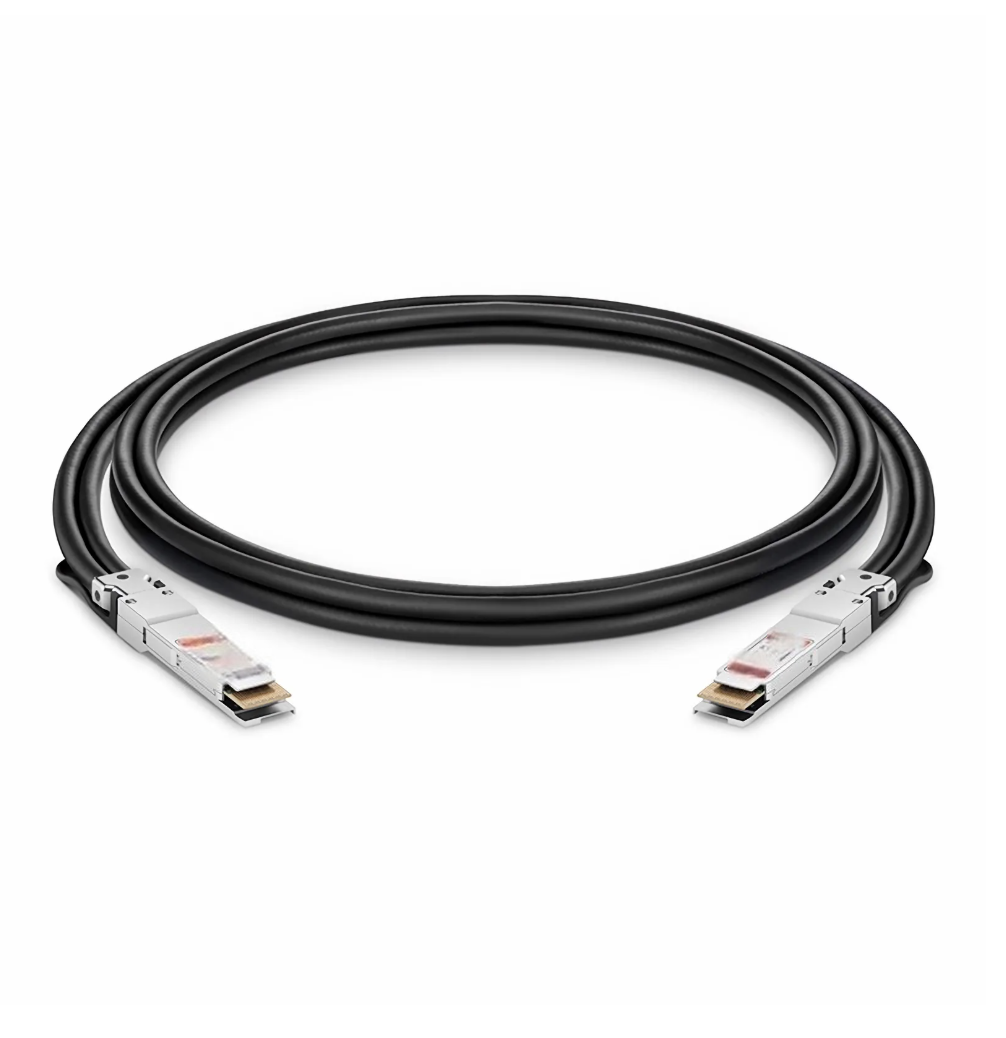

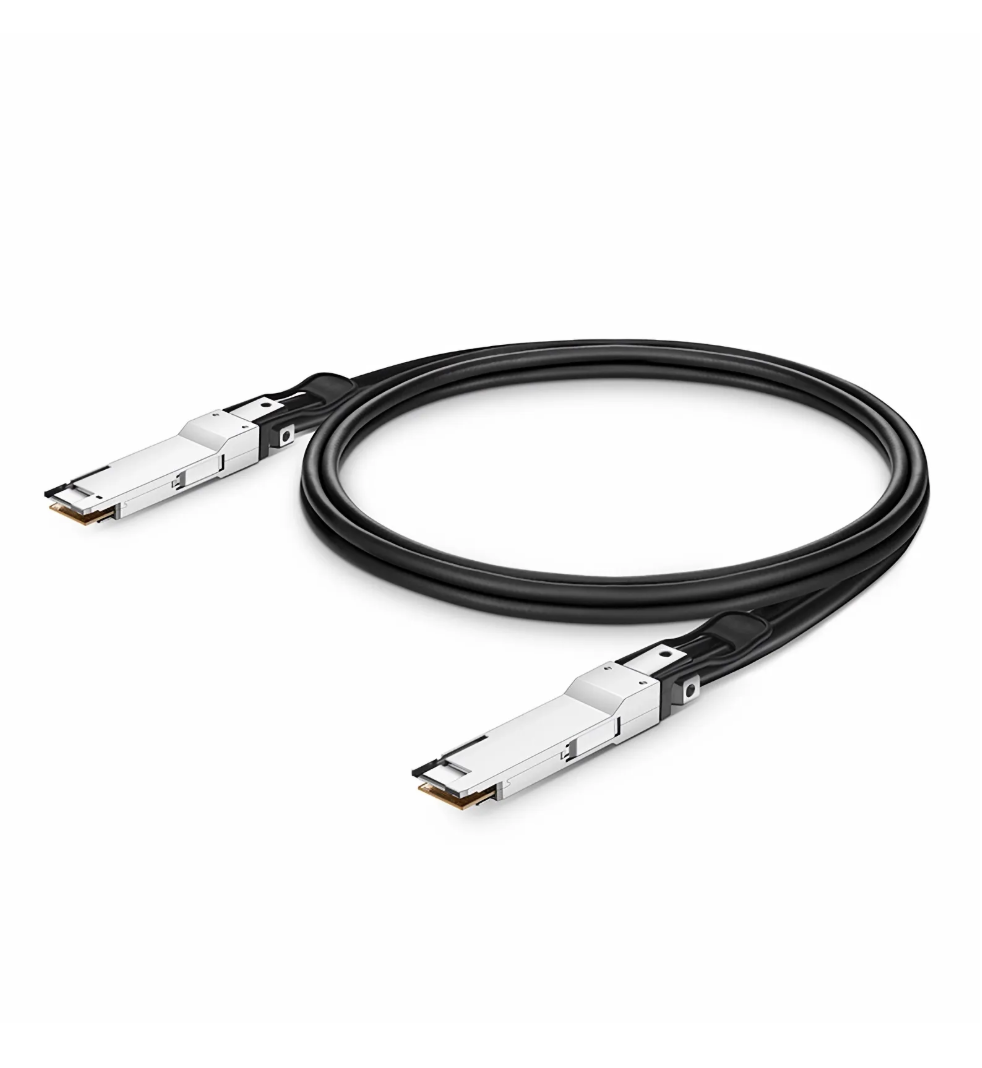

The 200G QSFP-DD DAC primarily enables high-bandwidth 200G links and supports 200G Ethernet rate. It provides a QSFP-DD to QSFP-DD copper direct-attach solution. 200G QSFP-DD DAC cables are suitable for very short links and offer a cost-effective way to establish a 200-Gigabit link between 200G QSFP-DD ports of switches/routers within racks and across adjacent racks. FS currently offers passive copper cables in lengths of 0.5, 1, 1.5, 2, 2.5 and 3 meters.
Specifications
| Part Number | QDD-200G-PC01 | Vendor Name | KEXINT |
|
Form Factor
|
QSFP-DD to QSFP-DD | Max Data Rate | 200Gbps |
| Media | Copper | Cable Type | Passive Twinax |
| Cable Length | 1m (3ft) | Wire AWG | 30AWG |

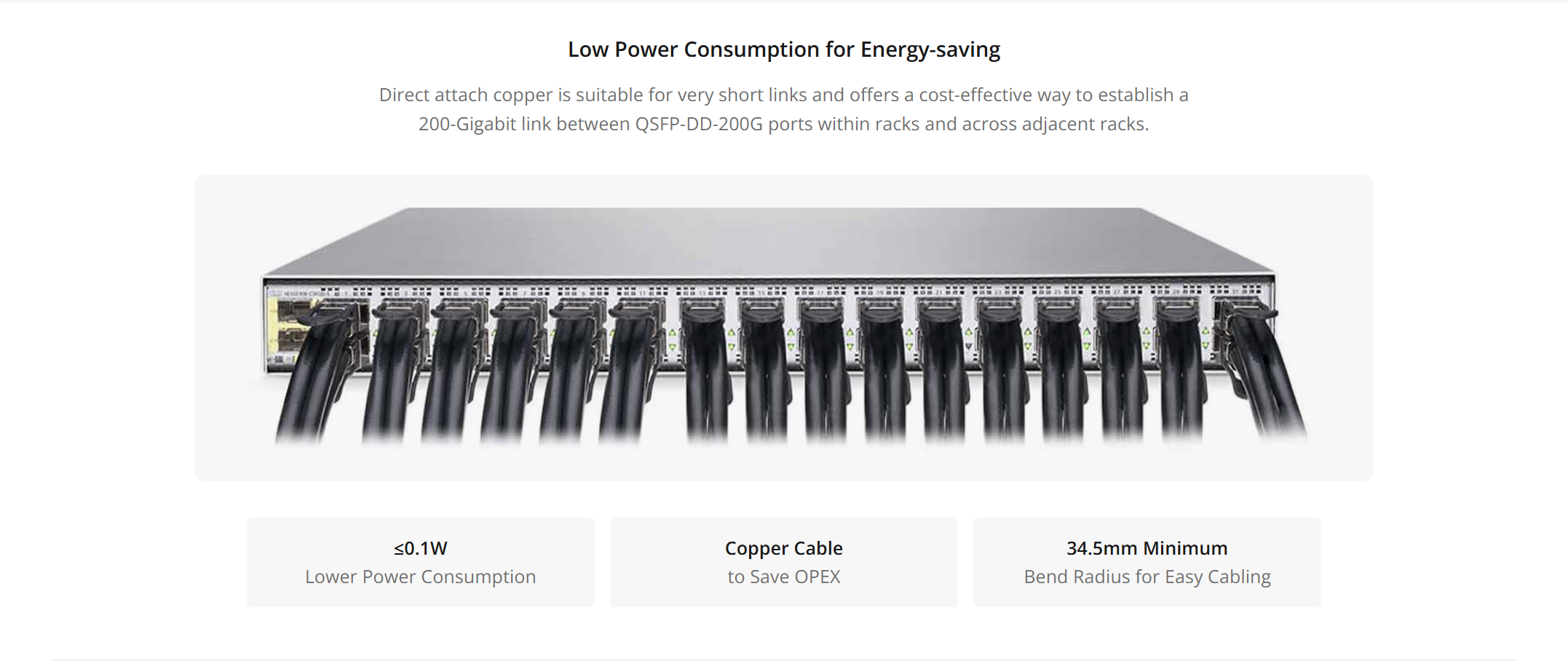

| Minimum Bend Radius | 34.5mm | Power Consumption | ＜0.1W |
| Jacket Material | PVC (OFNR) | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3bj, QSFP-DD MSA, CMIS, SFF-8417 | Warranty | 5 Years |
Connectivity Solutions
Features
