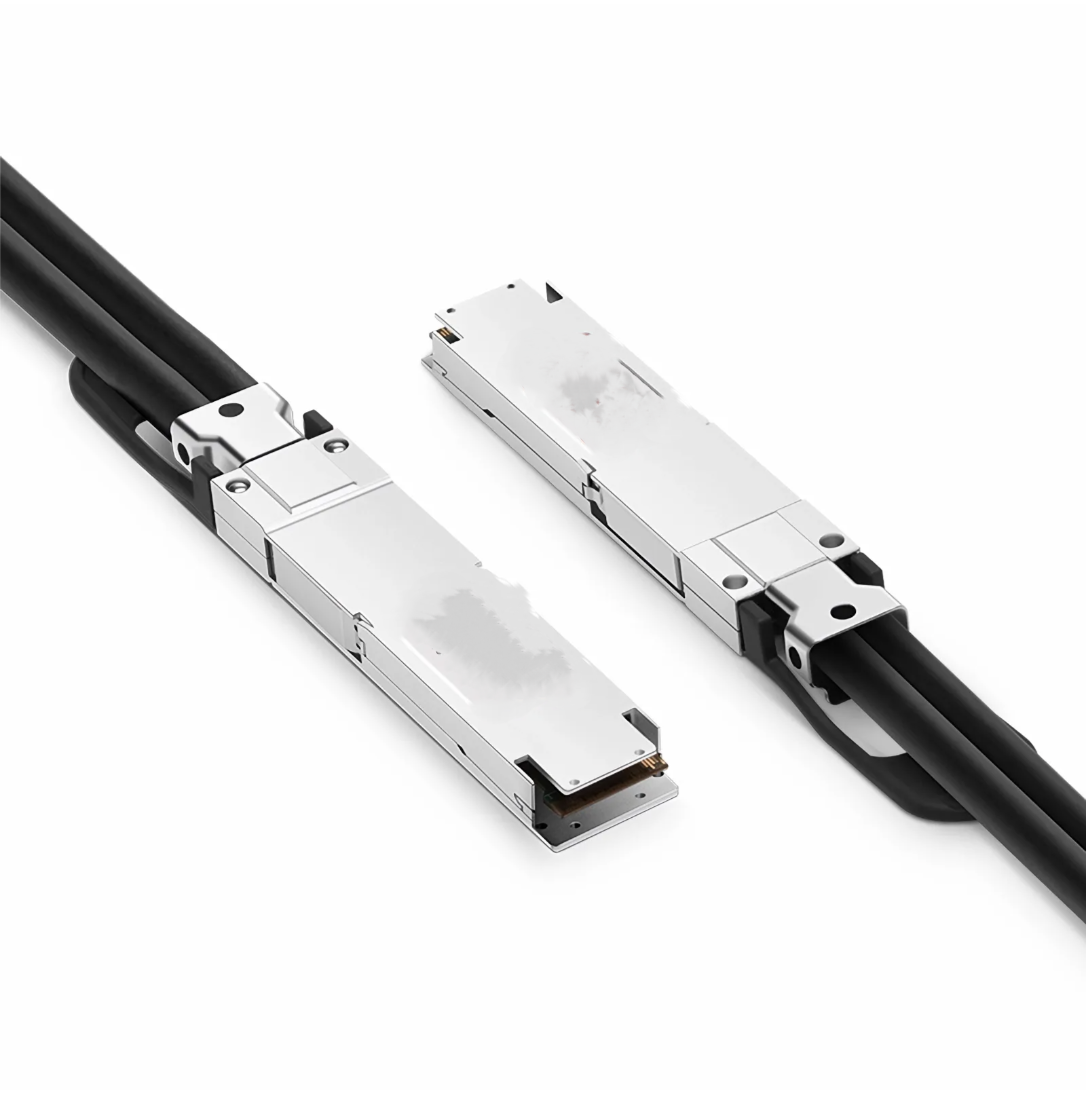

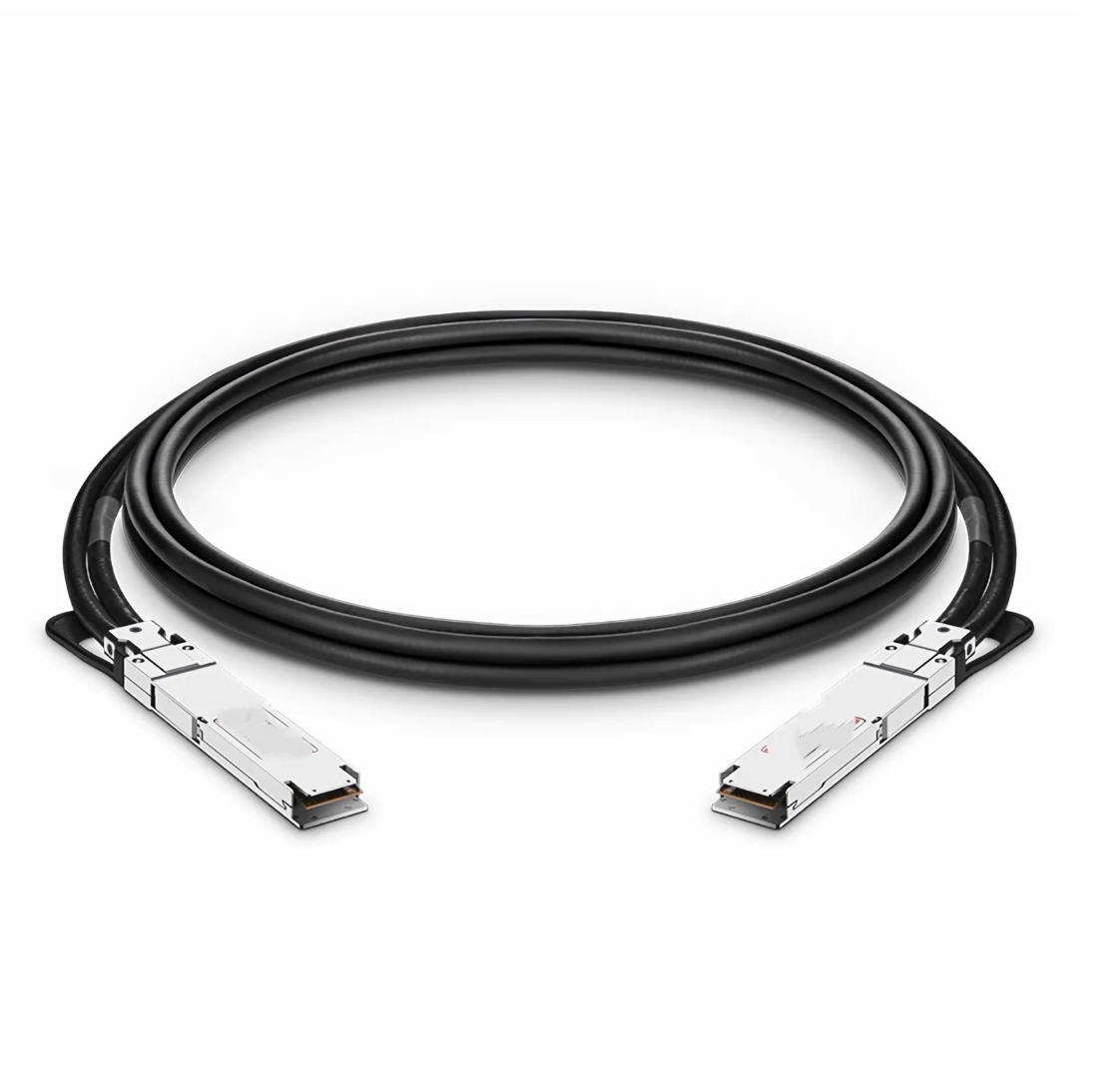

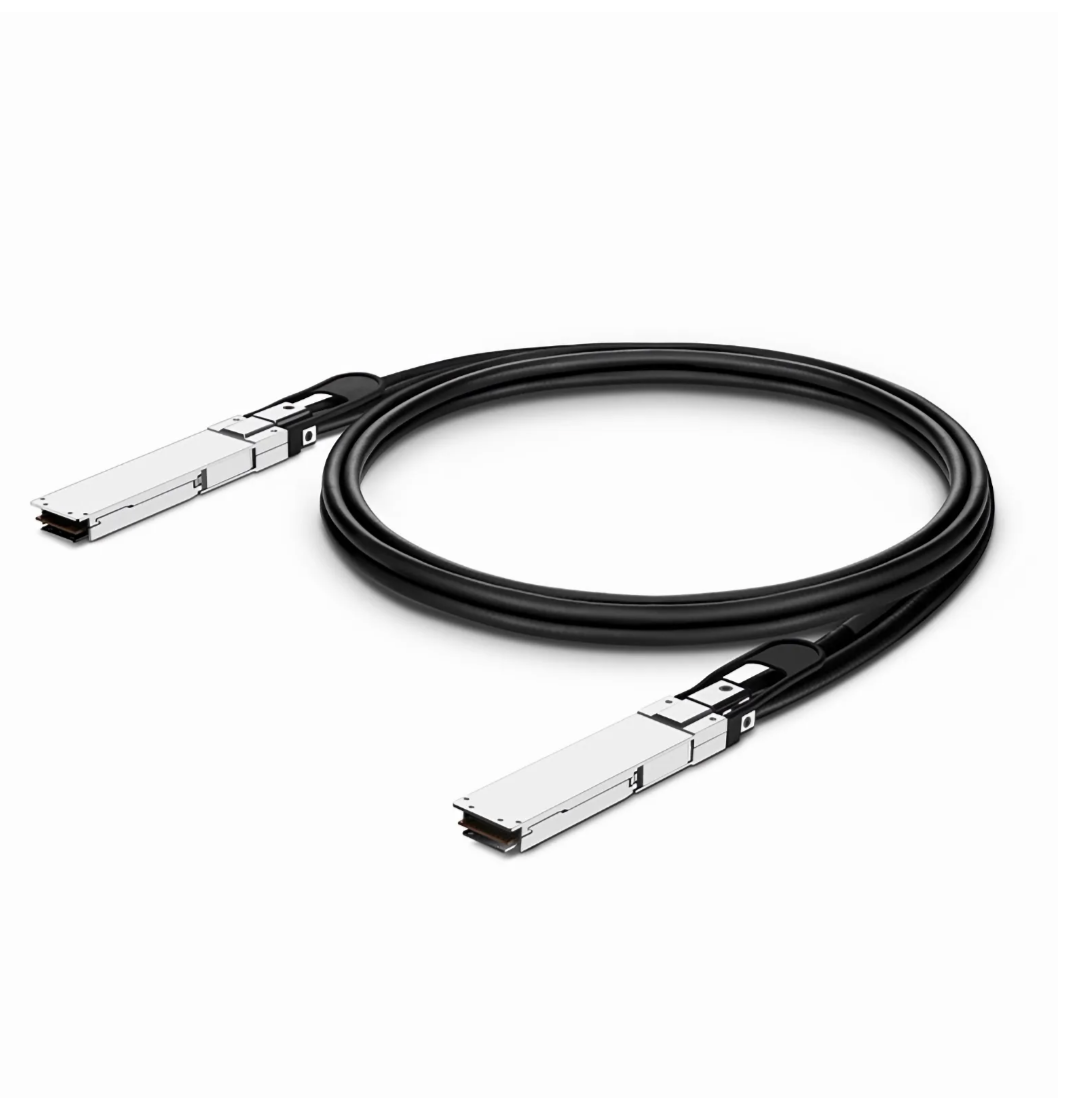

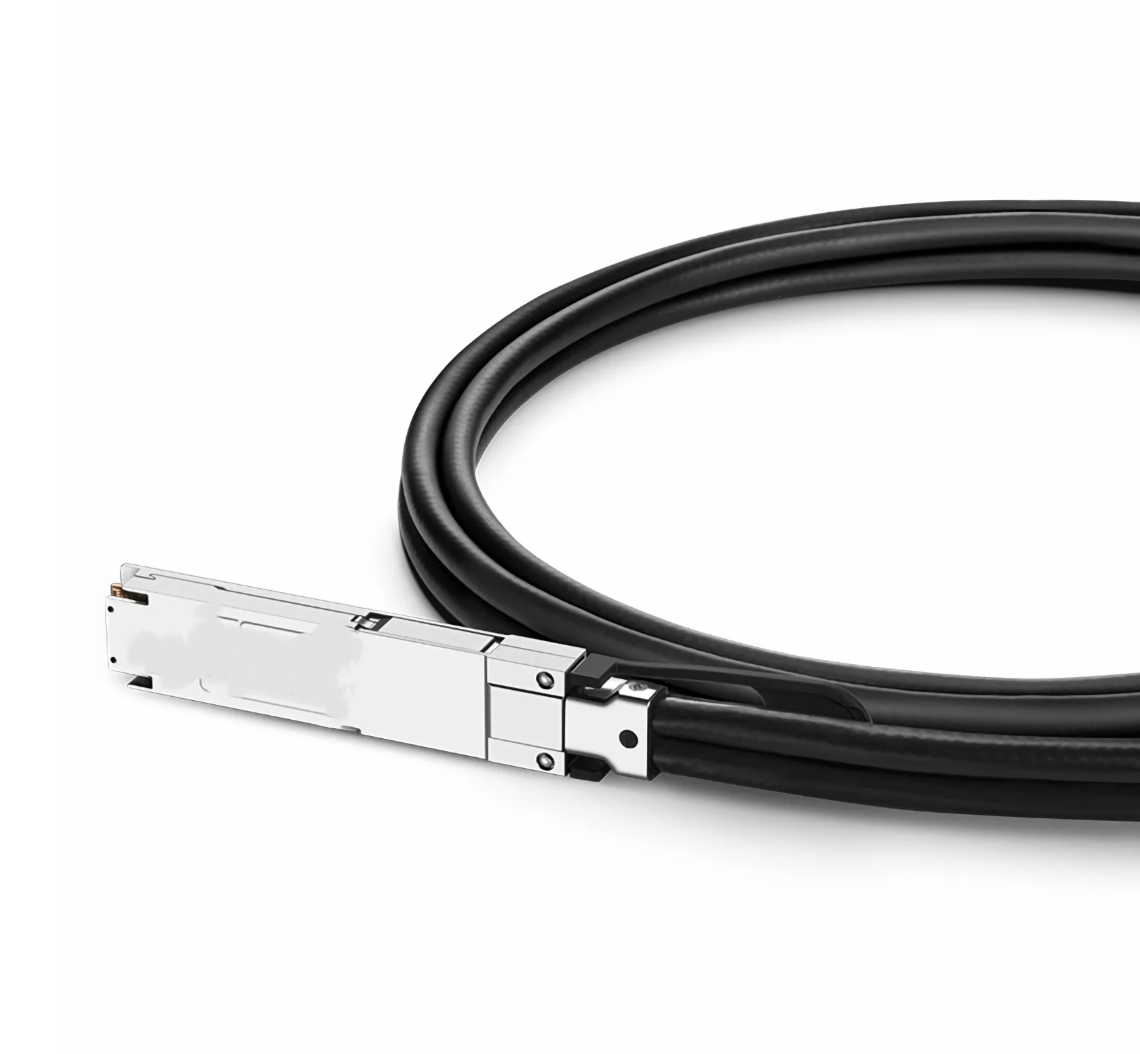

The 400G OSFP DAC provides a OSFP-to-OSFP copper direct-attach solution with a Flat-top (OSFP-RHS) form factor, suitable for very short links and offer a cost-effective way to establish a 400-Gigabit link between OSFP-400G ports of switches/routers within racks and across adjacent racks. This DAC is designed with ultra-low loss materials, square rings, twisted pair cable 8 wires and shell extension construction for superior mechanical properties and bending performance. It is tested in actual switching systems to ensure optimal signal integrity and the best end-to-end performance. FS currently offers 400G OSFP DAC in lengths of 0.5, 1, 1.5 and 2 meters, ideal for SDN, ML, and Cloud Computing.
Specifications
| Part Number | OSFPFL-400G-PC01 | Vendor Name | |
| Form Factor | OSFP (Flat Top) to OSFP (Flat Top) | Max Data Rate | 400Gbps |
| Media | Copper | Cable Type | Passive Twinax |
| Cable Length | 1m (3ft) | Wire AWG | 28AWG |
| Minimum Bend Radius | 40.5mm | Power Consumption | 0.1W |
| Jacket Material | PVC (OFNR) | Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | OSFP MSA, CMIS Rev4.0, IEEE 802.3cd | Modulation Format | PAM4 |
