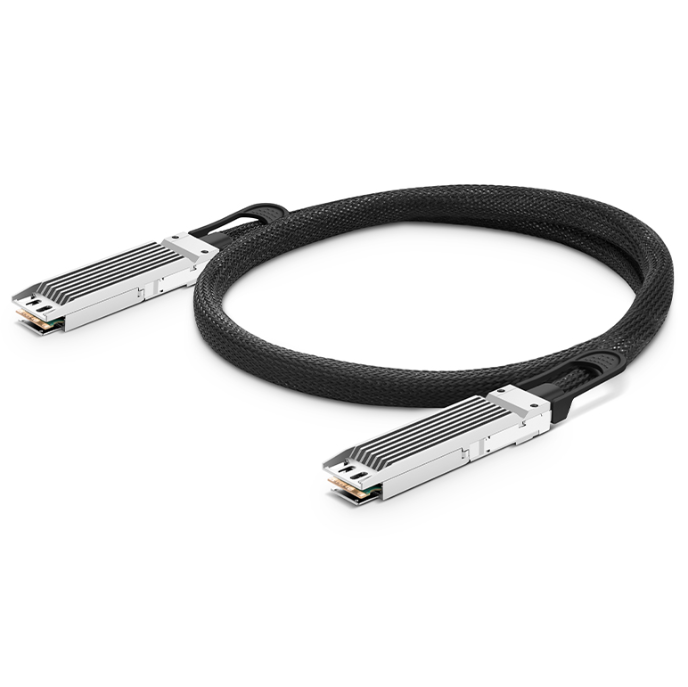

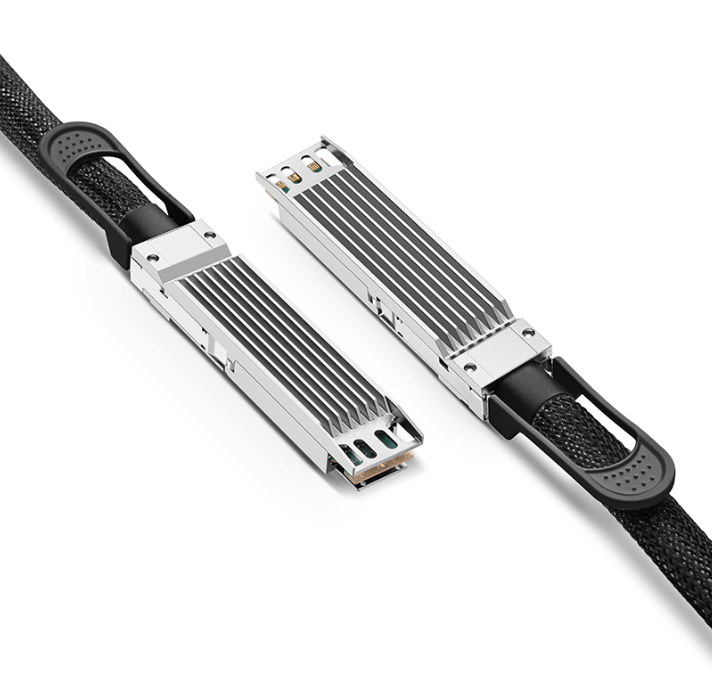

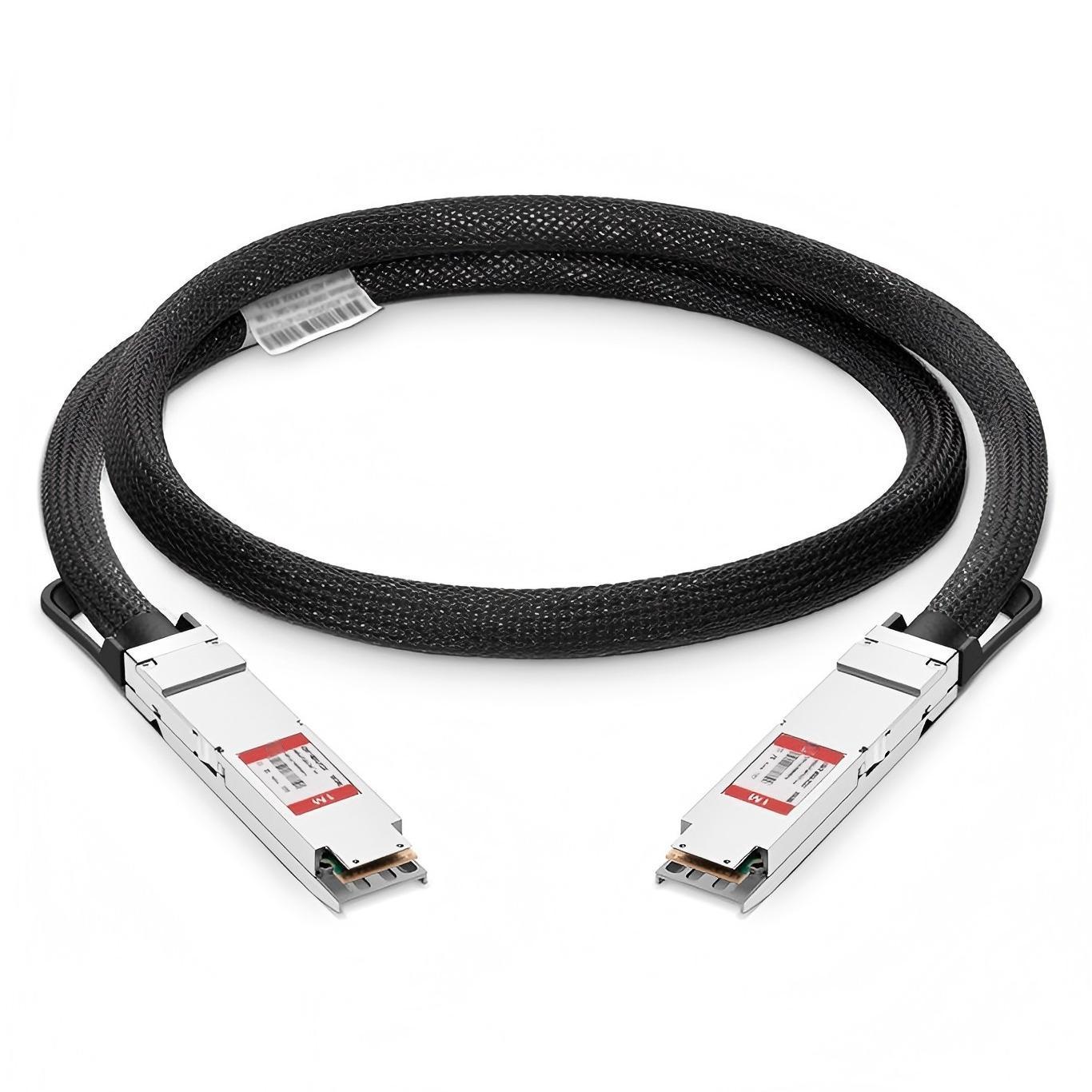

The NVIDIA/Mellanox Compatible 800G OSFP Active Electrical Cable is copper cable with retimer chip at both ends for complete signal integrity and is designed for use in 800G Ethernet. It provides a OSFP copper direct-attach solution. This cable is compliant with OSFP MSA (Multi-Source Agreement) and IEEE 802.3ck standards. With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.

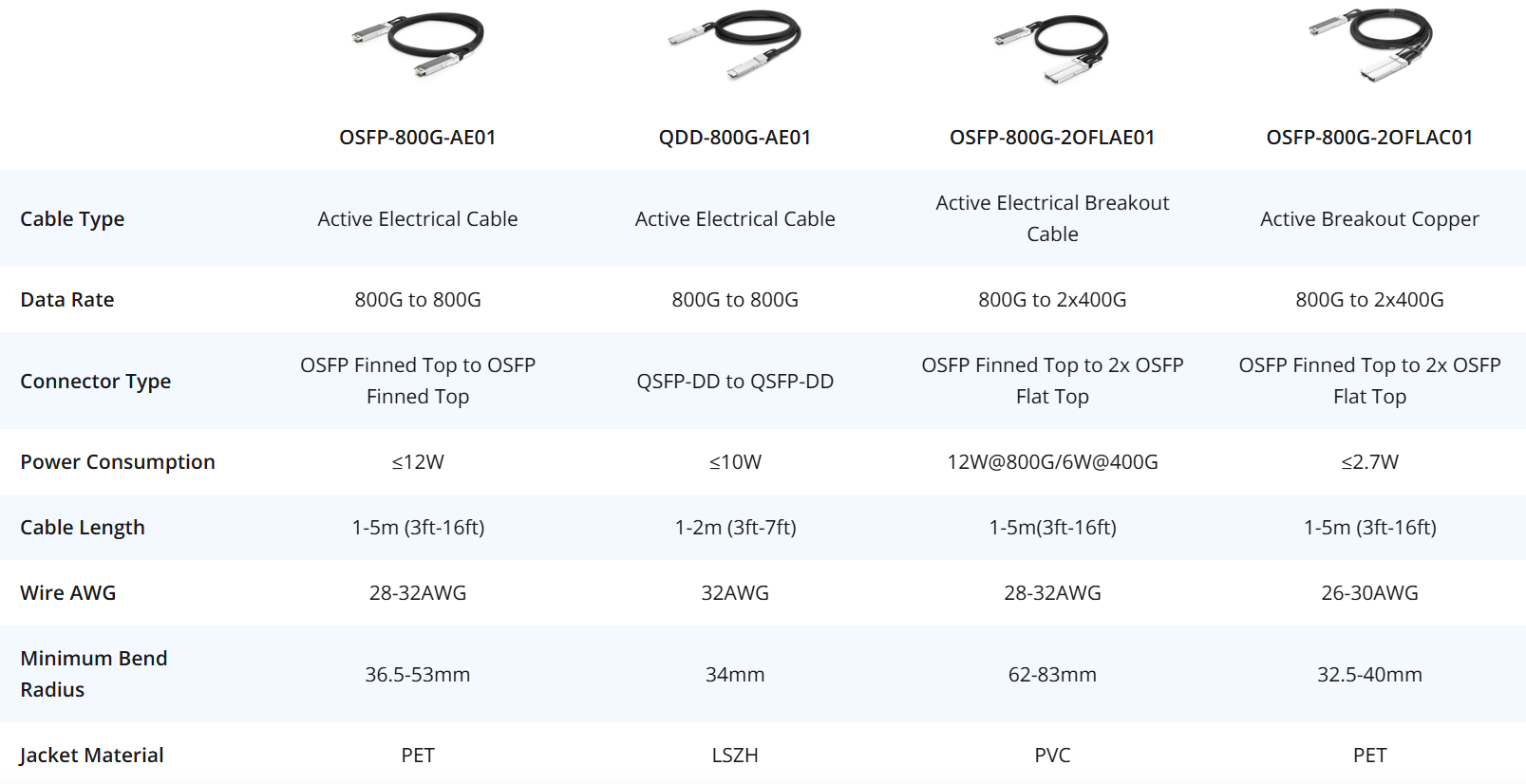

Specifications
| Part Number | OSFP-800G-AE01 | Vendor Name | KEXINT |
| Form Factor | OSFP (Finned Top) to OSFP (Finned Top) | Max Data Rate | 800Gbps |
| Media | Copper | Cable Type | Active Twinax |
| Minimum Bend Radius | 36.5mm | Power Consumption | ≤12W |
| Cable Length | 1m (3ft) | Wire AWG | 32AWG |
| Temperature Range | 0 to 70°C (32 to 158°F) | Jacket Material | PET |
| Protocols | OSFP MSA, IEEE 802.3ck, CMIS 5.2 | Modulation Format | 8x100G-PAM4 |
Connectivity Solutions

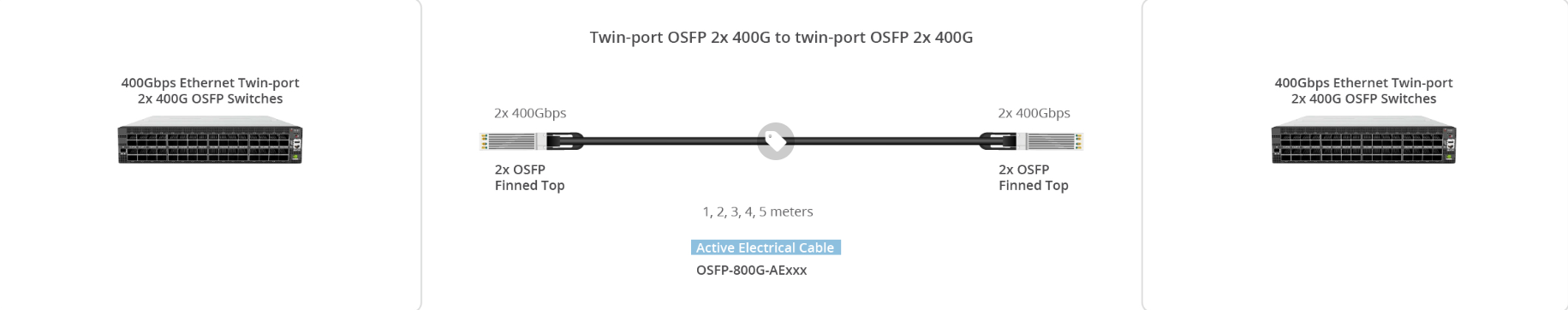

800G-to-800G Link for Switch-to-Switch
Features
