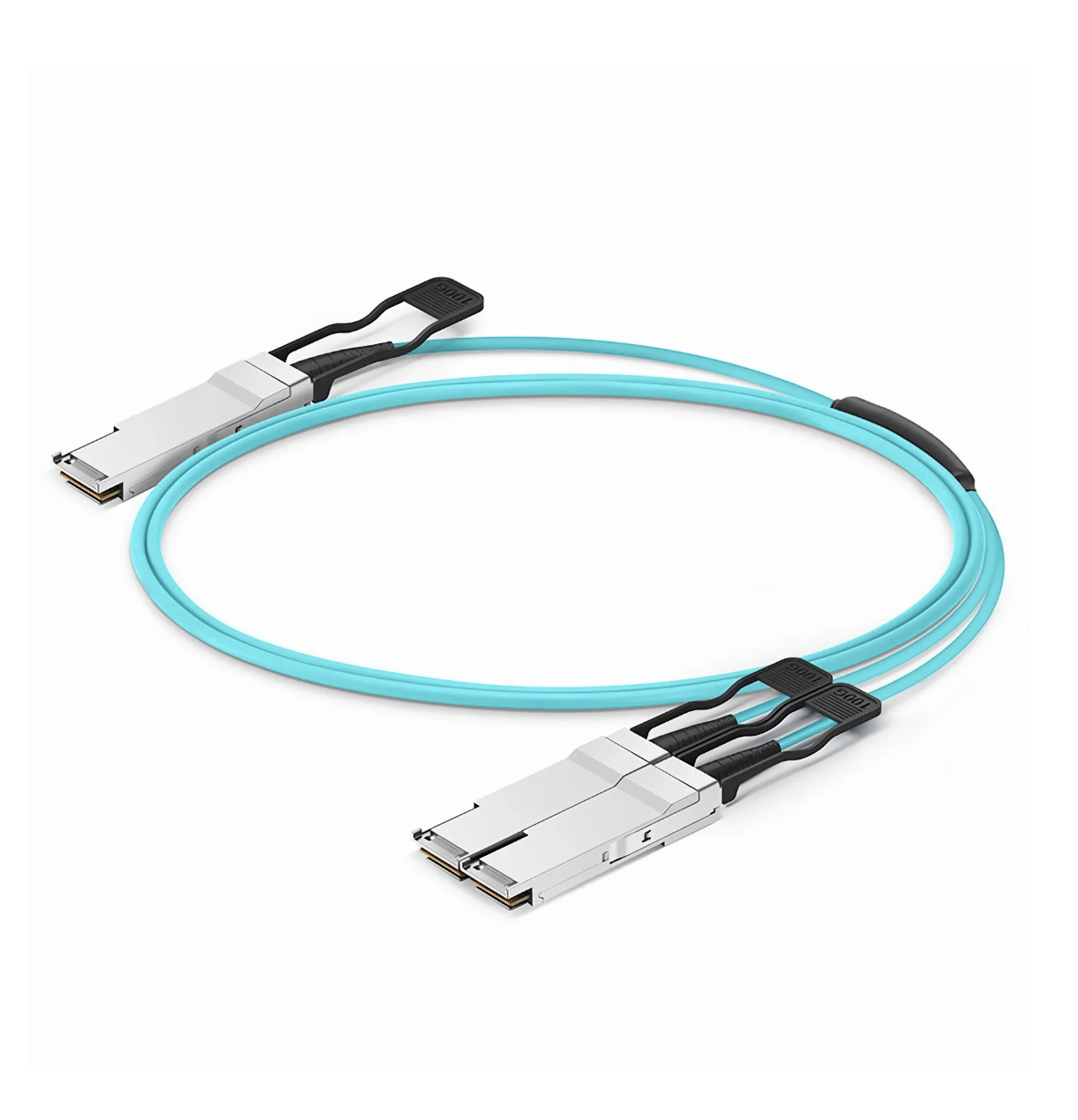

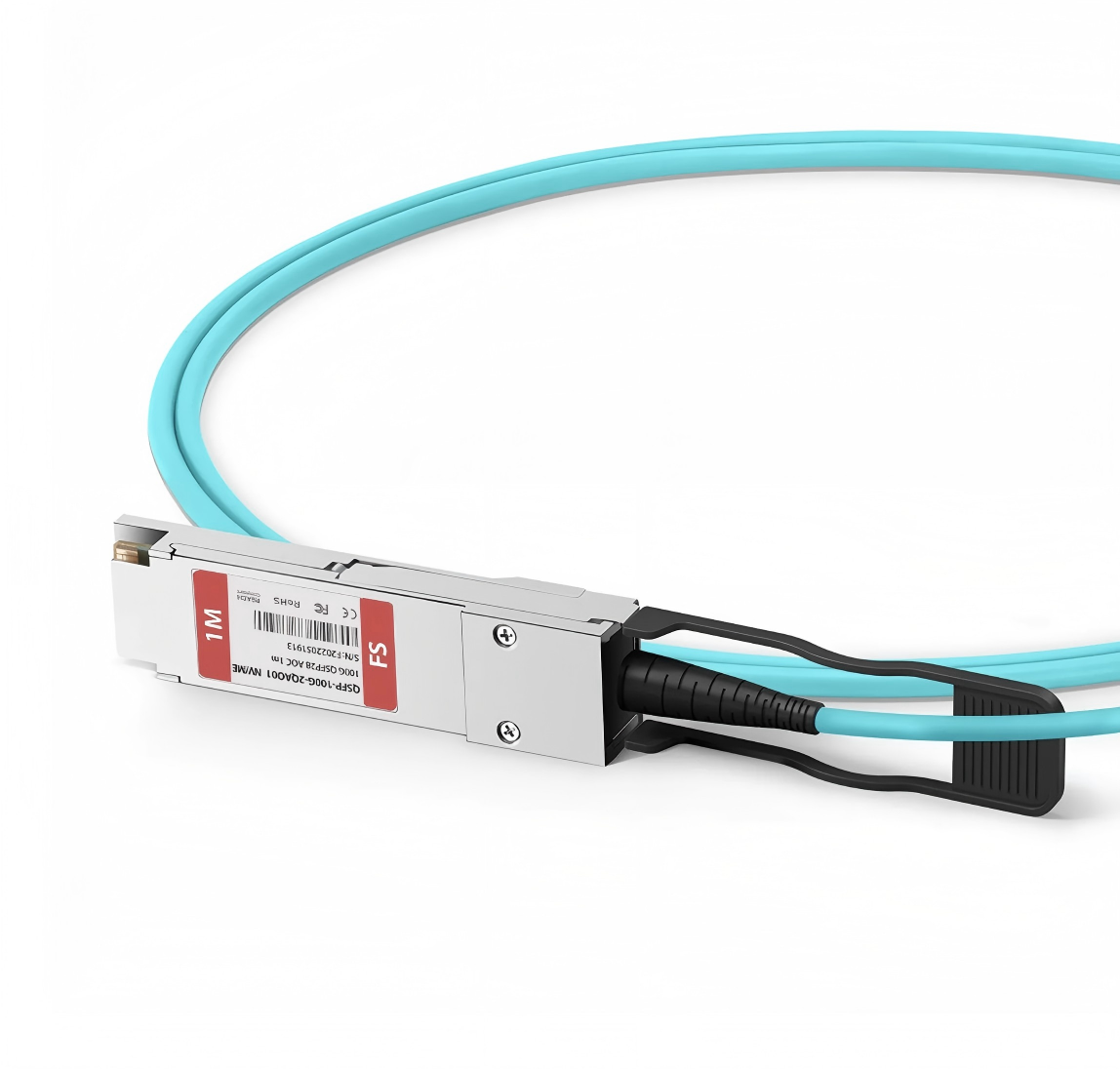

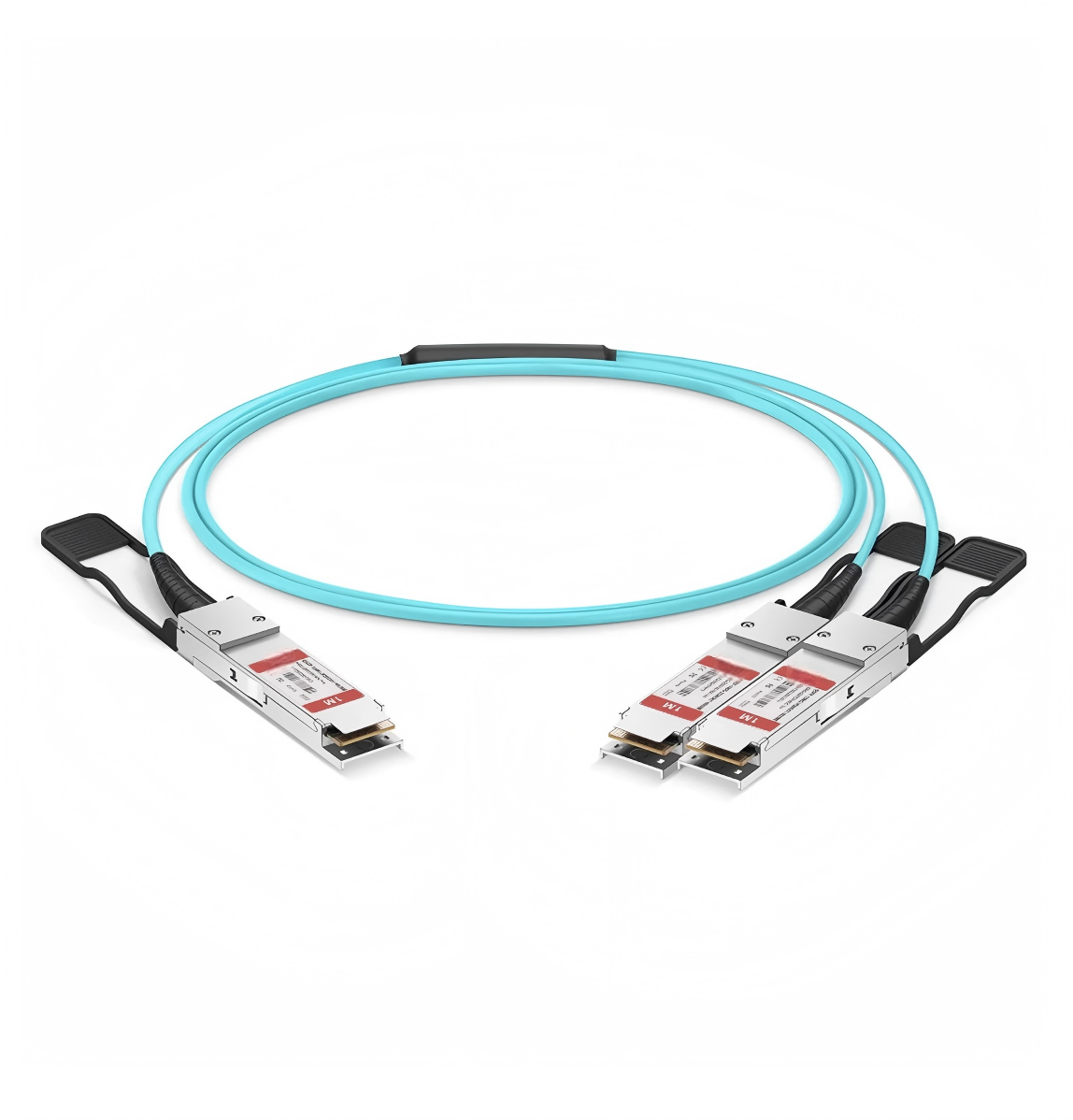

The NVIDIA/Mellanox MFA7A20-C001 compatible 100G QSFP28 to 2x50G QSFP28 Ethernet Active Optical Breakout Cable operates over Multi-Mode Fiber (MMF) and complies with SFF-8636 and hot-pluggable QSFP28 Electrical MSA standards, ensuring compatibility and reliability. It features built-in digital diagnostics monitoring (DDM) for real-time operating parameter access.
This cable provides a highly cost-effective Ethernet connectivity solution for interconnecting devices with 100G QSFP28 ports and 50G QSFP28 ports in data centers, High Performance Computing(HPC), and Switches/Routers/Server/Storage racks, including adjacent racks, for short distances.
Specifications
| NVIDIA/Mellanox Ethernet Compatible | MFA7A20-C001 | Vendor Name | KEXINT |
| Form Factor | QSFP28 to QSFP28 | Max Data Rate | 100Gbps |
| Cable Length | 1m (3ft) | Cable Type | OM3 |
| Wavelength | 850nm | Minimum Bend Radius | 30mm |
| Transmitter Type | VSCEL | Receiver Type | PIN |
| Power Consumption | 100G：<2.5W 50G：<2W |
Jacket Material | OFNP |
|
CDR (Clock and Data Recovery)
|
TX & RX Built-in CDR | Modulation Format | NRZ |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP28 Electrical MSA, SFF-8636, SFF-8665 | Warranty | 5 Years |

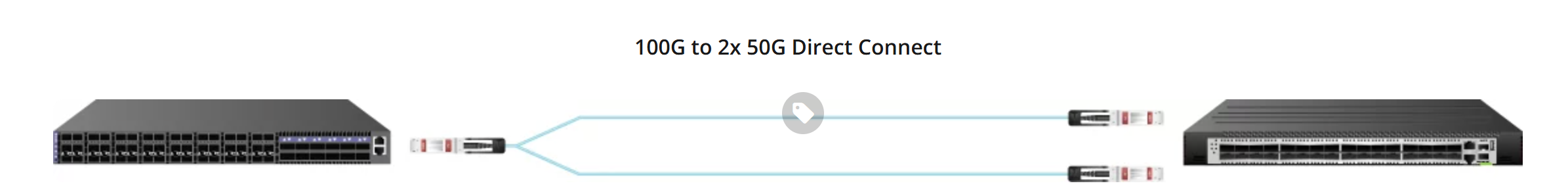

Connectivity Solutions
Features
