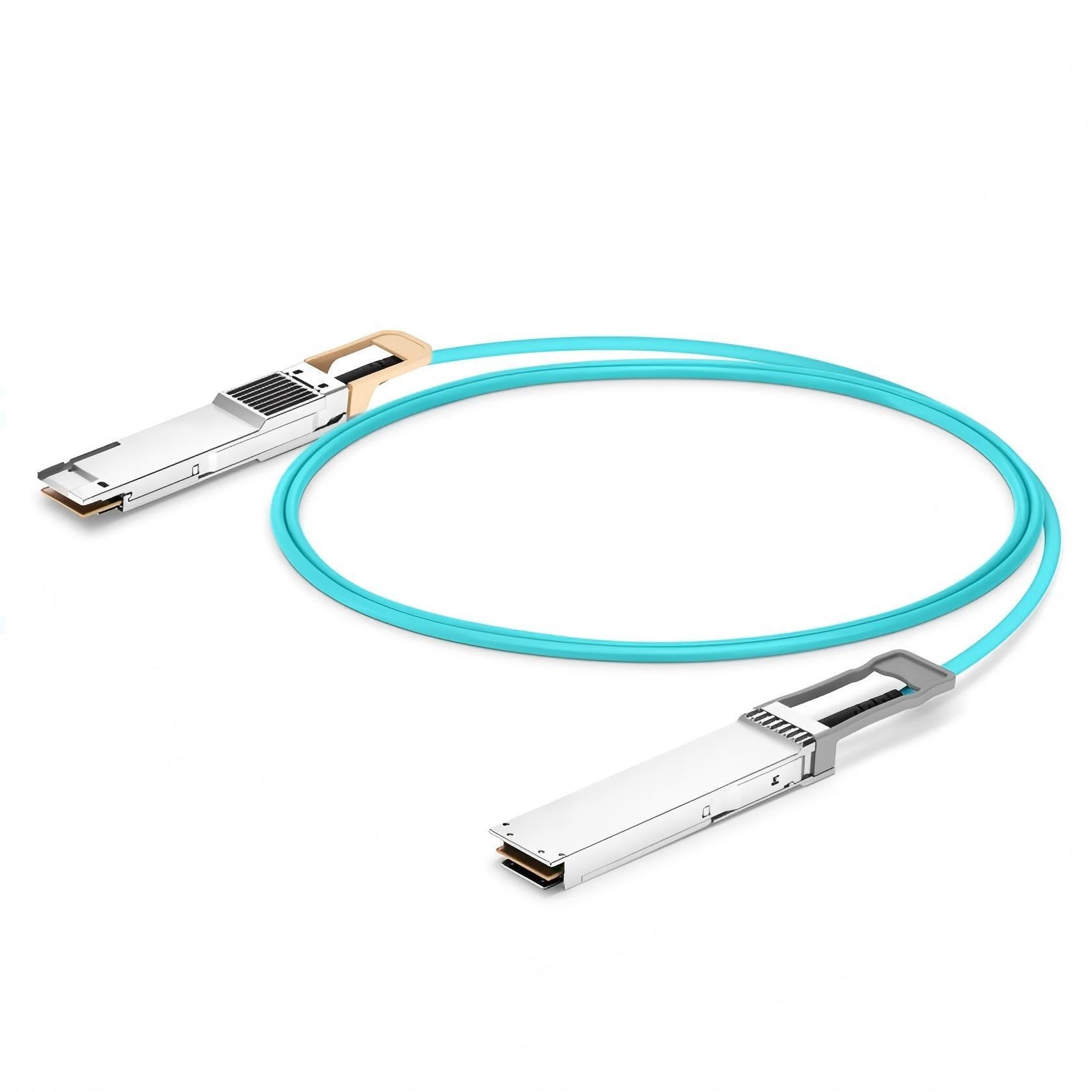

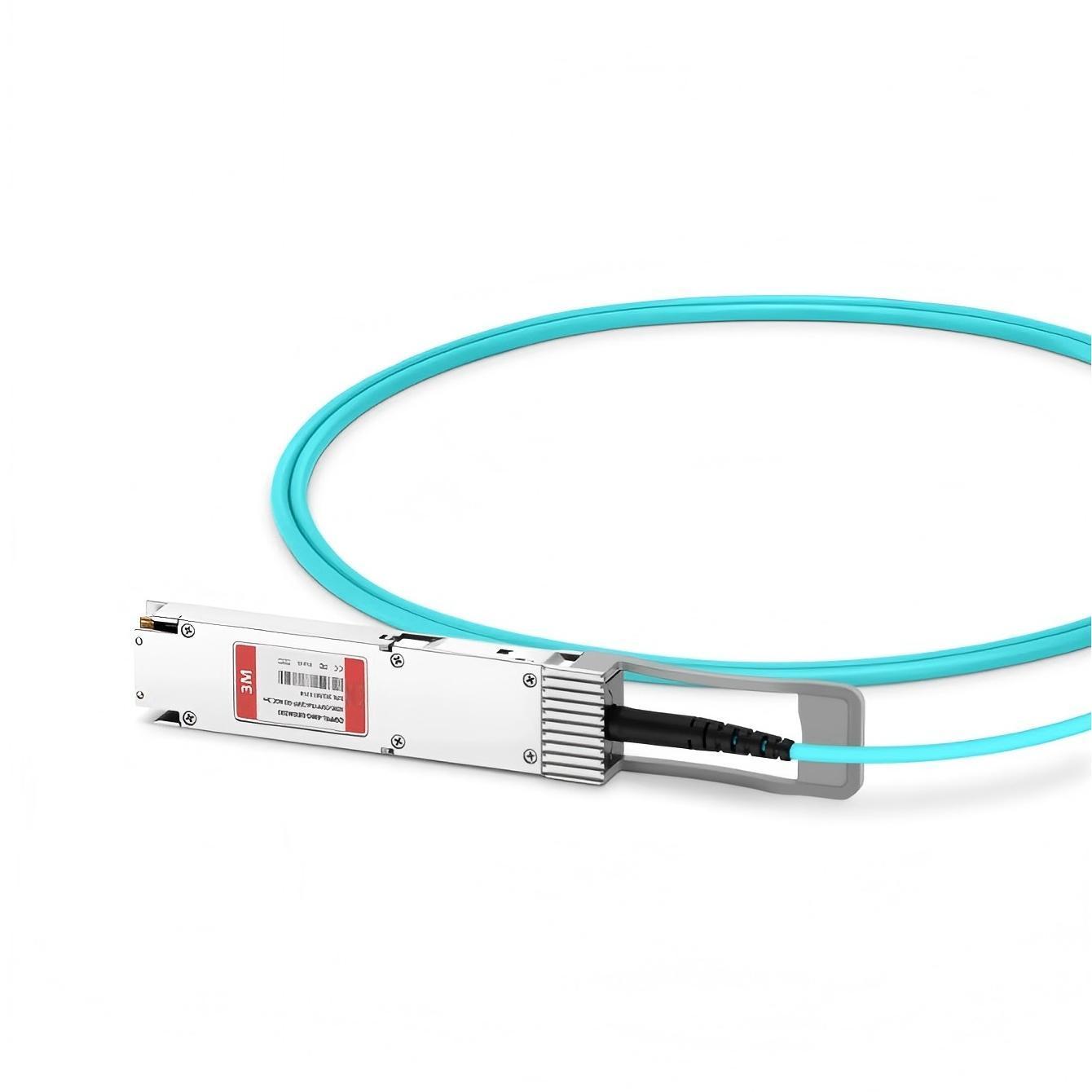

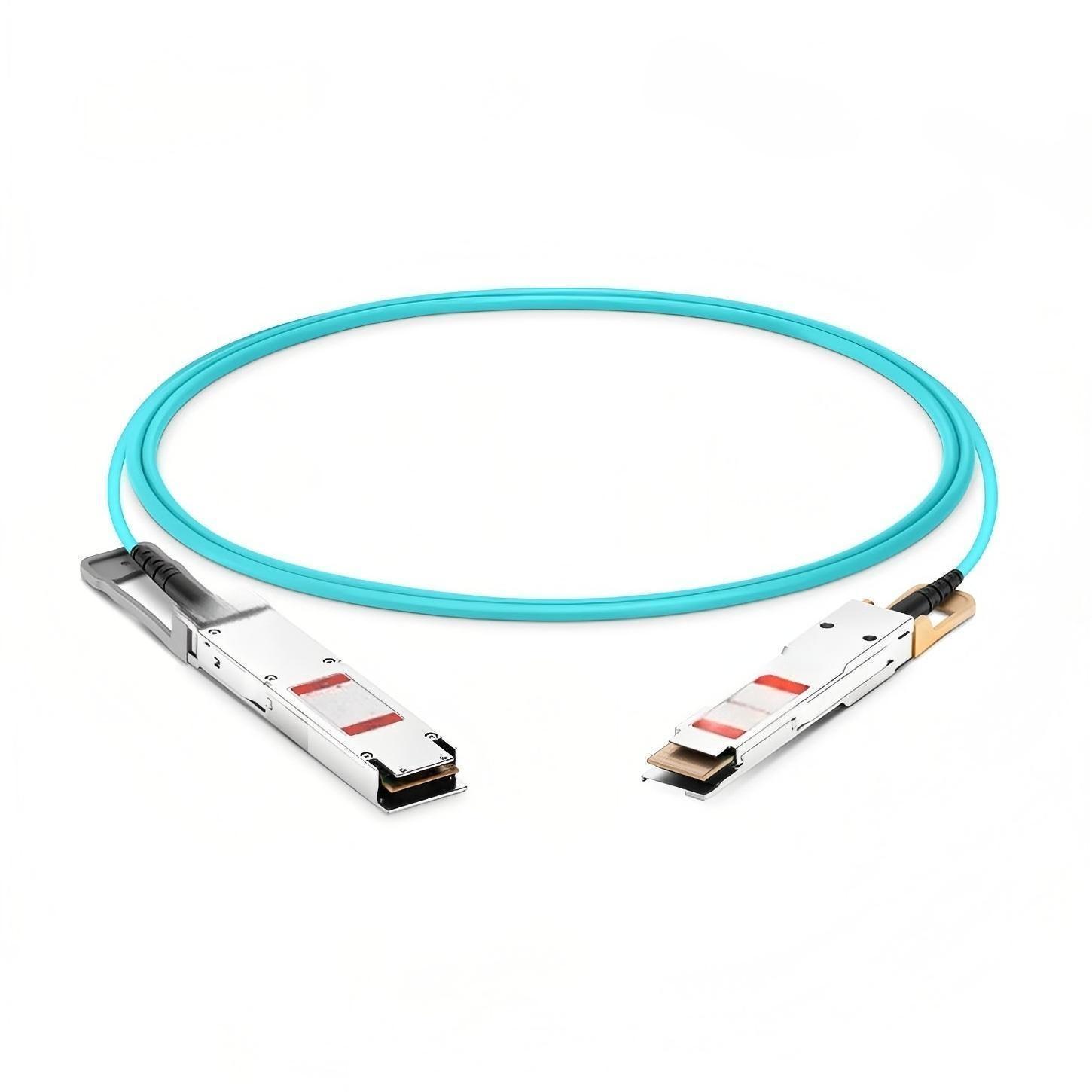

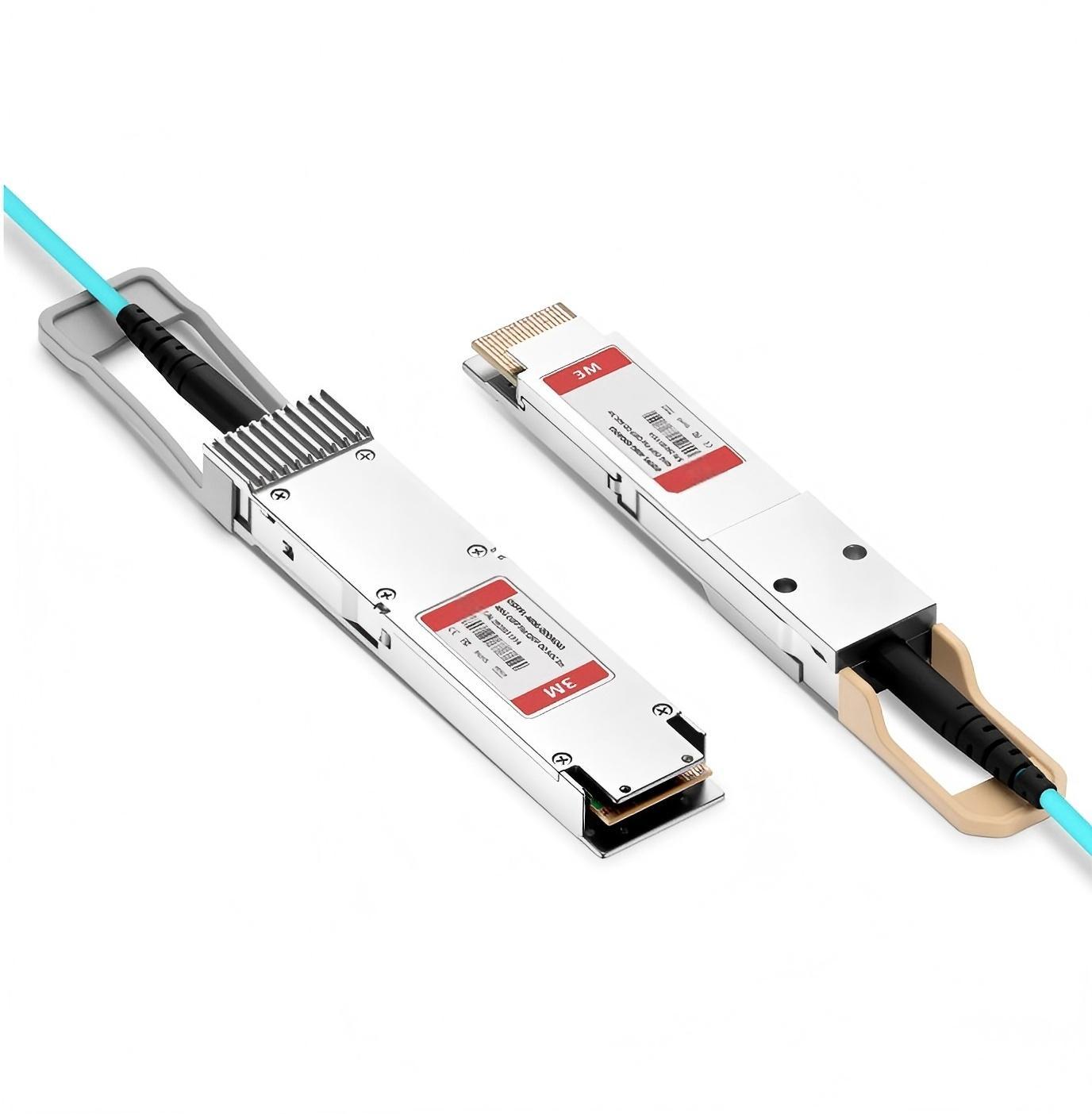

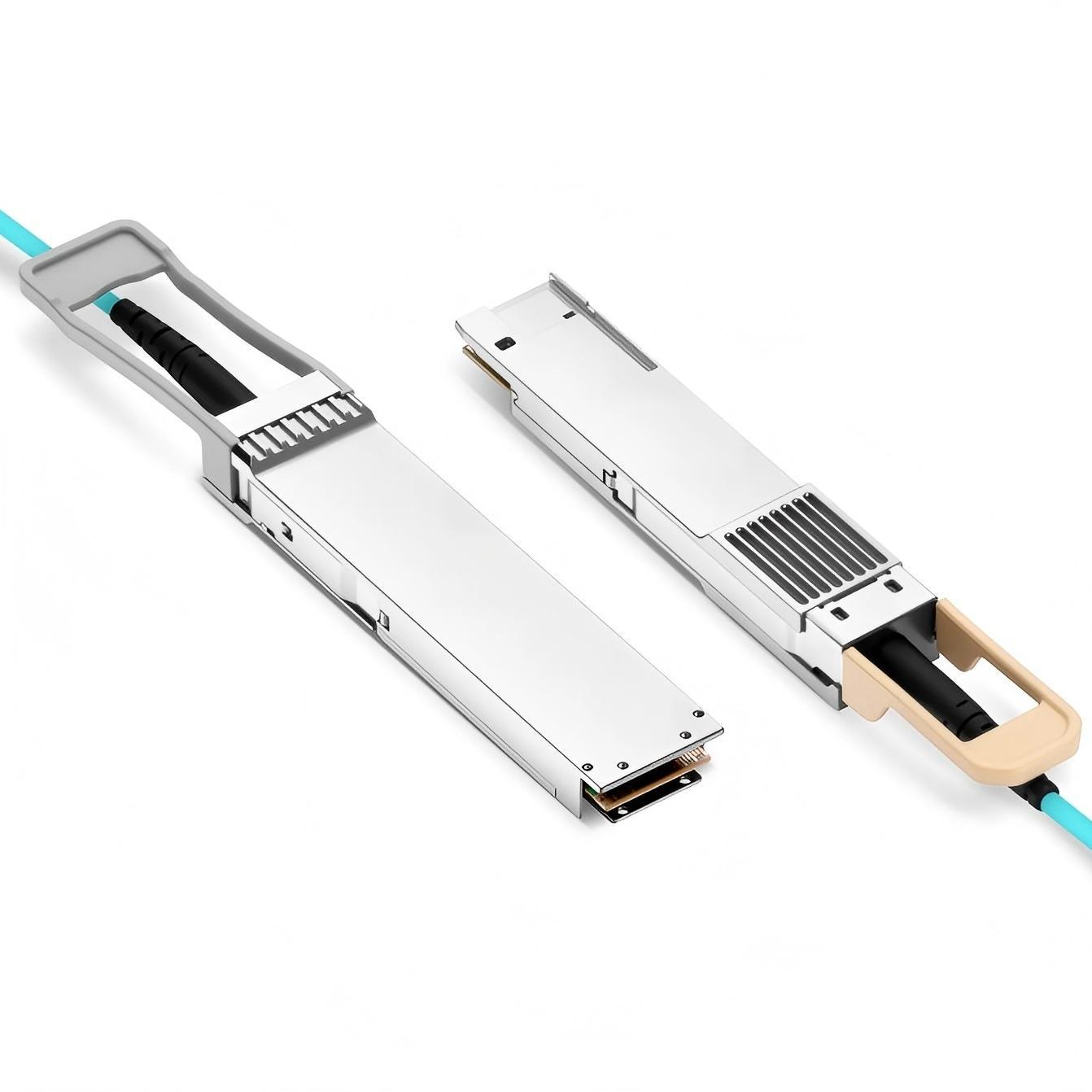

The 400G QSFP-DD to OSFP-RHS active optical cable is a pluggable, parallel, fibre-optic QSFP-DD to OSFP-RHS AOC for Ethernet applications. It is designed for short-range multi-lane data communication and interconnect applicatijons. This active optical cable is compliant with IEEE 802.3bs-400GAUI-8, QSFP-DD MSA, and OSFP MSA.
Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.
Specifications
| Part Number | OSFPFL-400G-QDDAO03 | Vendor Name | KEXINT |
| Form Factor | OSFP (Flat Top) to QSFP-DD | Max. Data Rate | 400Gbps |
| Cable Length | 3m (10ft) | Cable Type | AOC |
| Wavelength | 850nm | Minimum Bend Radius | 30mm |
| Transmitter Type | VSCEL | Receiver Type | PIN |
| Power Consumption | ≤10W | Jacket Material | OFNP |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | OSFP-8x 50G-PAM4 QSFP-DD-8x 50G-PAM4 |
| DDM/DOM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | CMIS 4.0, IEEE 802.3bs-400GAUI-8, OSFP MSA, QSFP-DD MSA | Warranty | 1 Years |

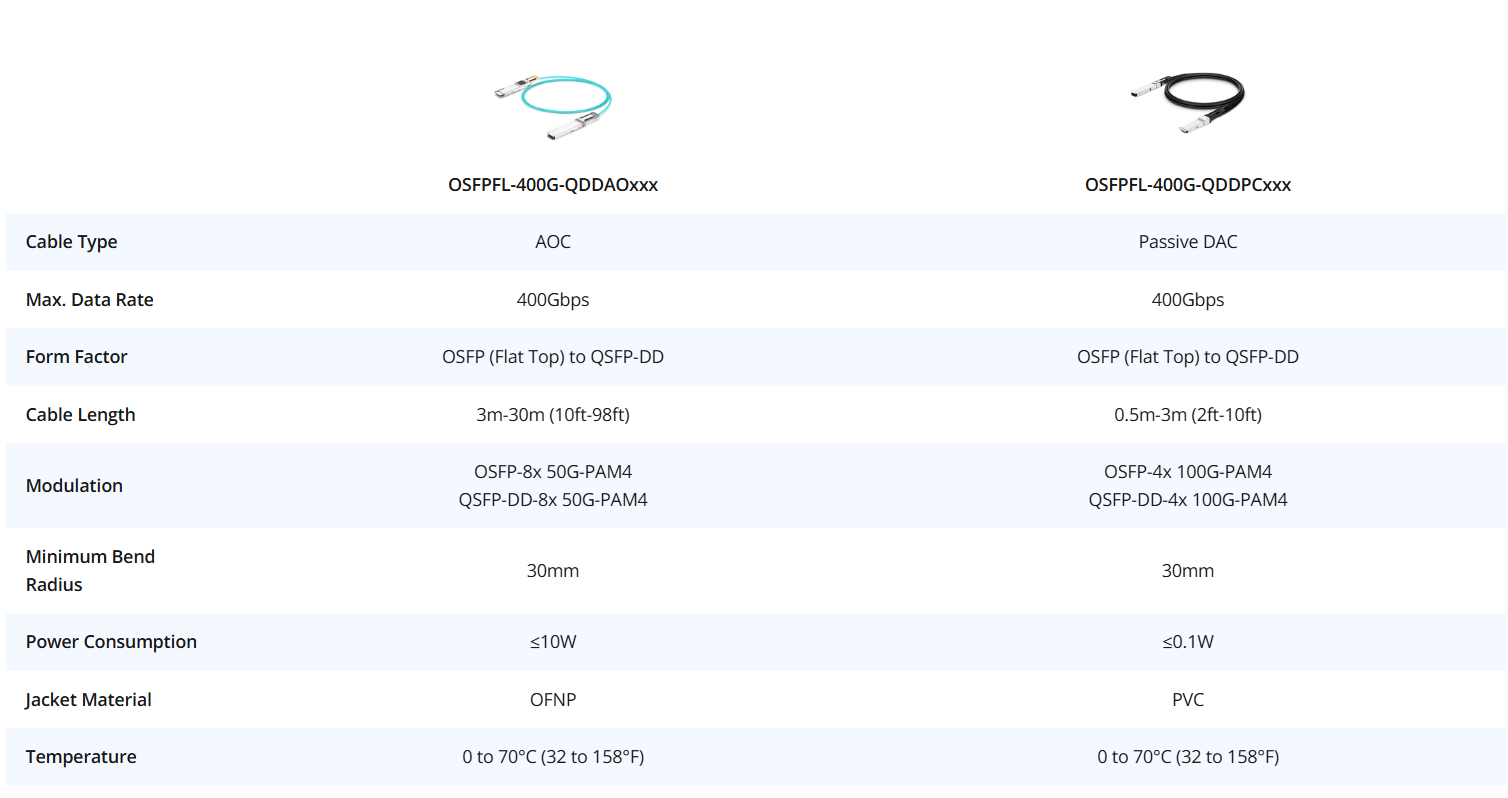

Connectivity Solutions
Features
Questions & Answers
What’s the electrical modulation on the QSFP-DD end of this cable? Is it compatible with 400G or 800G switches?
It supports 8×50G PAM4 modulation, compatible with the serdes of mainstream 400G QSFP-DD devices on the market, and can also be used with 800G QSFP-DD switches.
What are the common applications of QSFP-DD 400G AOC?
The 400G AOC cable is suitable for high-speed network transmission, data centres, cloud computing, and large-scale network device connections. It provides a high-speed, low-latency, reliable, and compatible data transmission solution.
What are the advantages of this cable?

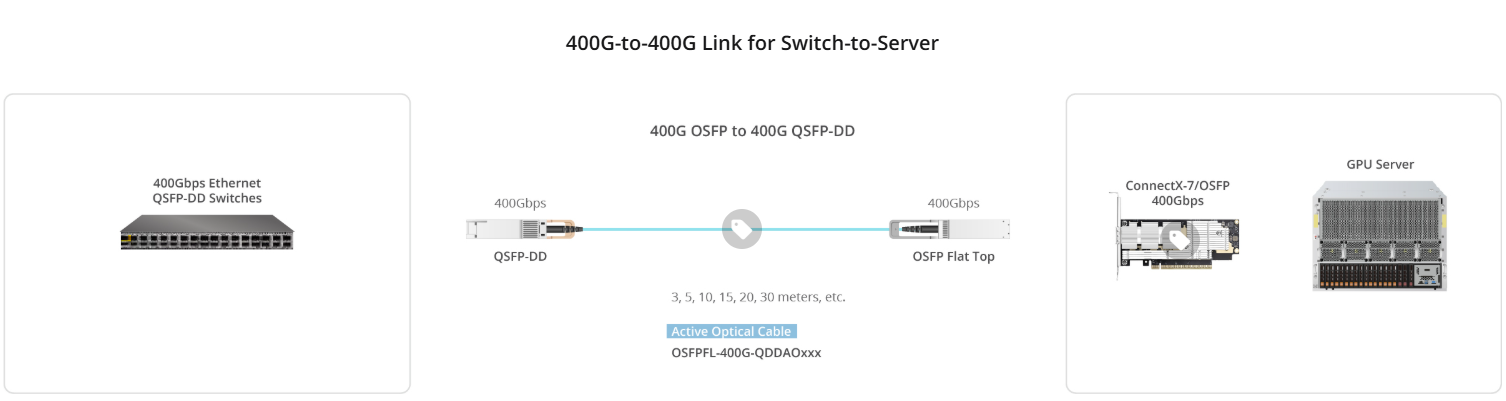

This cable solves the interconnection issue between QSFP-DD switches and OSFP network cards, and compared to modules, it greatly reduces the interconnection cost.
