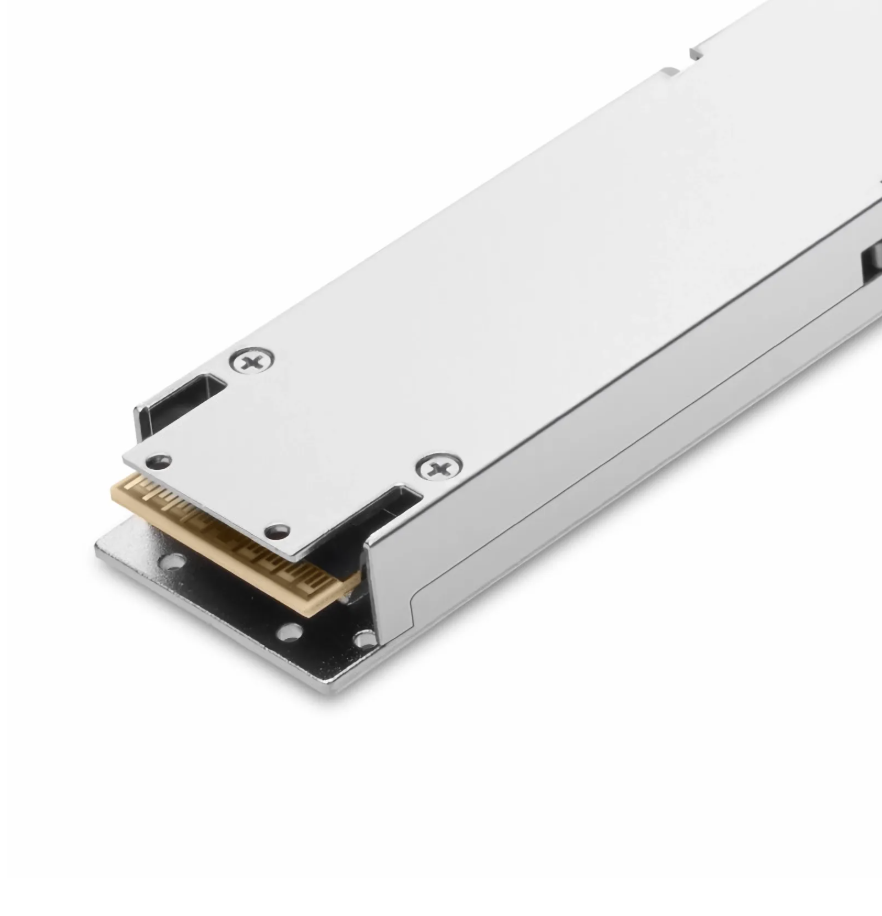

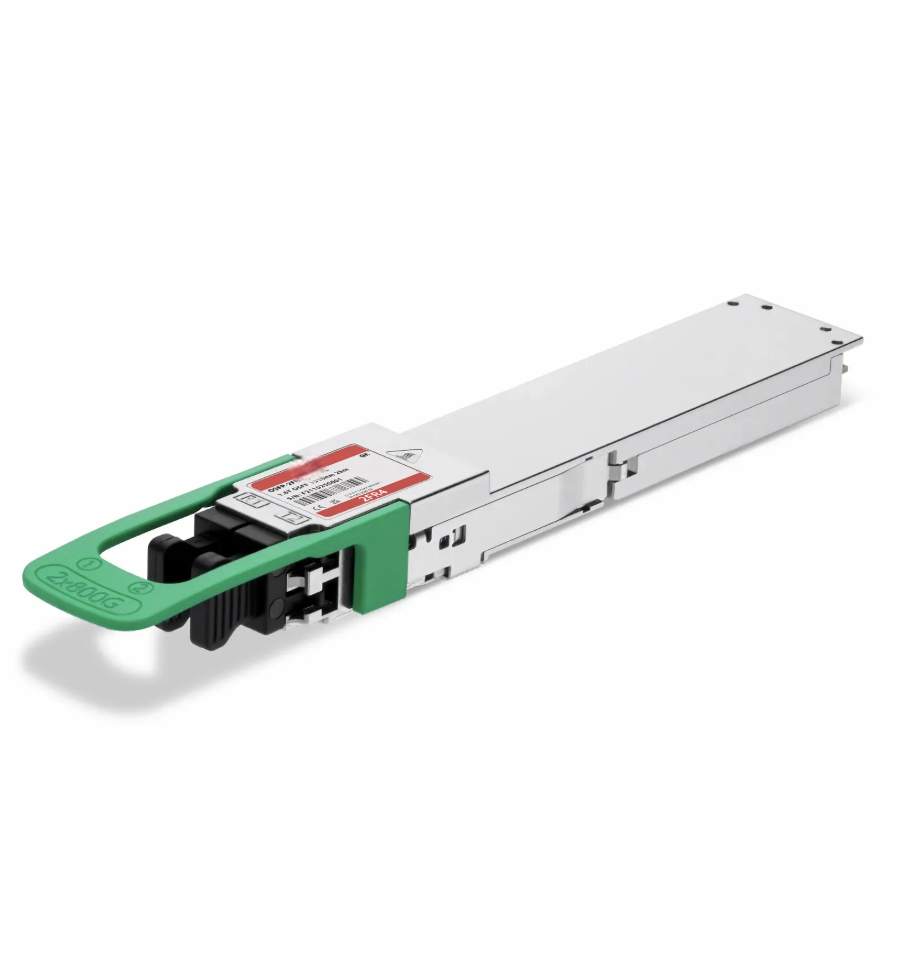

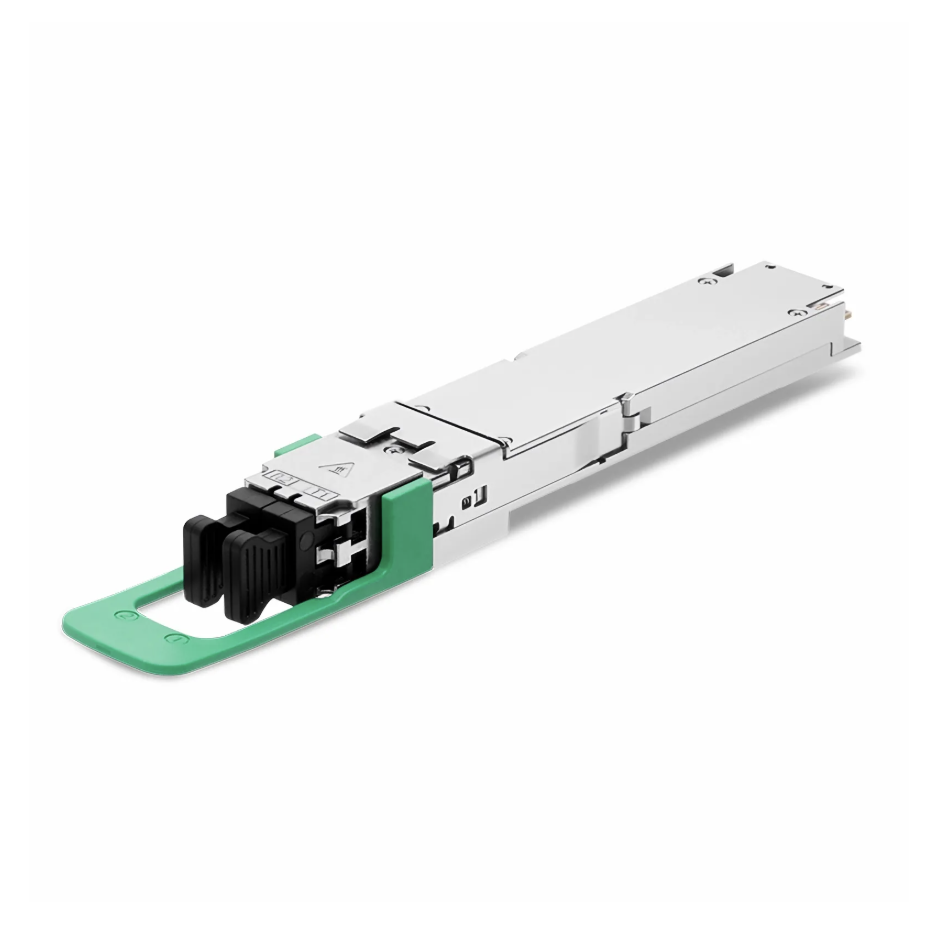

This optical transceiver module is an 1.6T 2x 800Gb/s Twin-port OSFP, 2x FR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 200G-PAM4. The dual far reach 8-channel (2x FR4) design uses 200G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid.

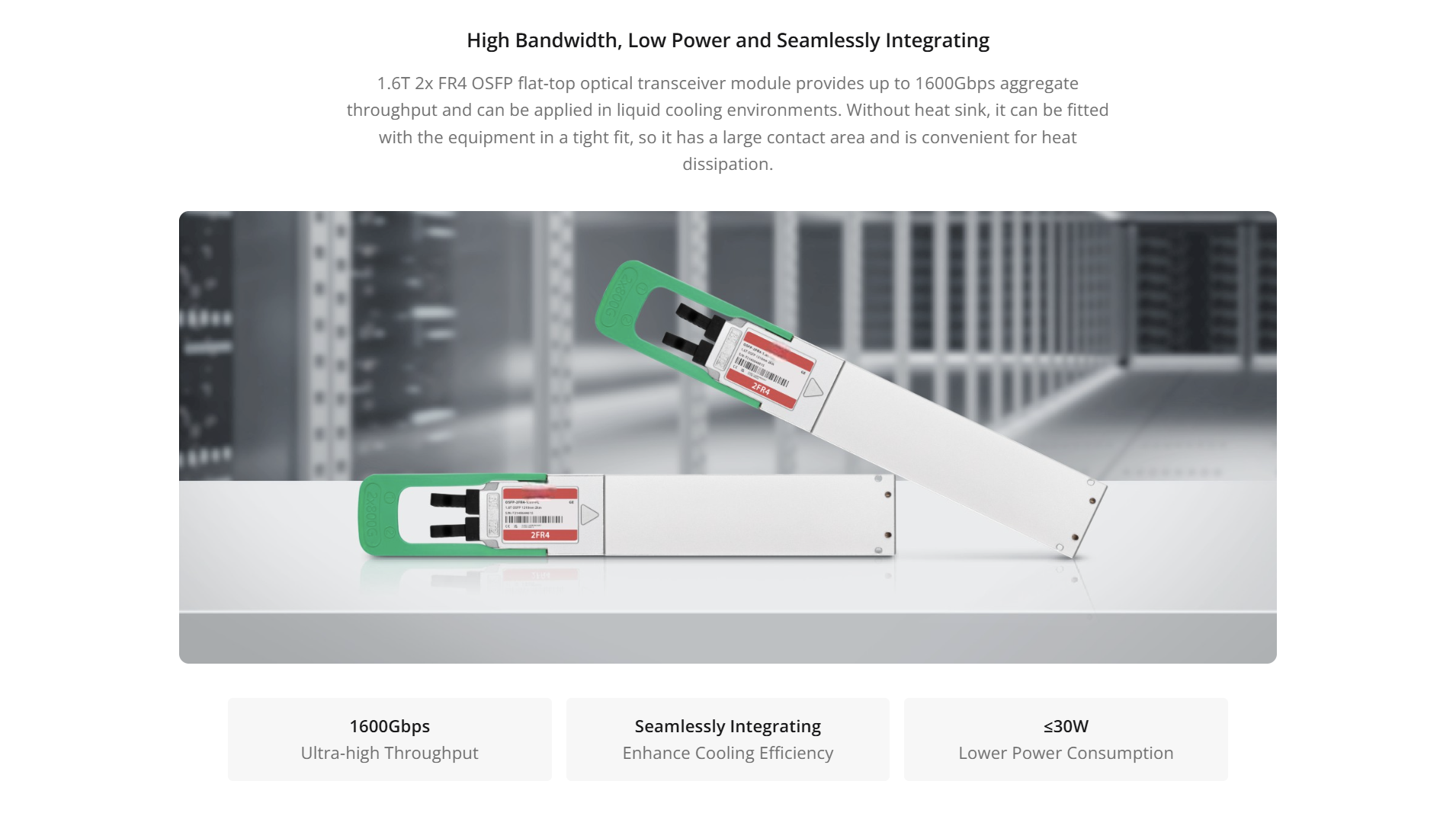

It is the ideal solution for supercomputing and HPC industries, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. The flat-top (OSFP-RHS) version is suitable for liquid-cooled switches.
Specifications
| Part Number | Part Number | Vendor Name | KEXINT |
| Form Factor | Twin-port OSFP Flat Top | Max. Data Rate | 1600Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, and 1331nm | Max. Cable Distance | 2km |
| Connector | Dual Duplex LC/UPC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.2~4.9dBm | Minimum Receiver Power | -6.2dBm |
| Power Budget | 4dB | Receiver Overload | 4.9dBm |
| Max. Power Consumption | 30W | Extinction Ratio | ≥3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Modulation (Electrical) | 8x 200G-PAM4 | Modulation (Optical) | Dual 4x 200G-PAM4 |
| Protocols | OSFP MSA Specification Rev 5.1, CMIS 5.2, IEEE 802.3dj D1p2, IEEE 802.3dj D1p2 | Warranty | 5 Years |

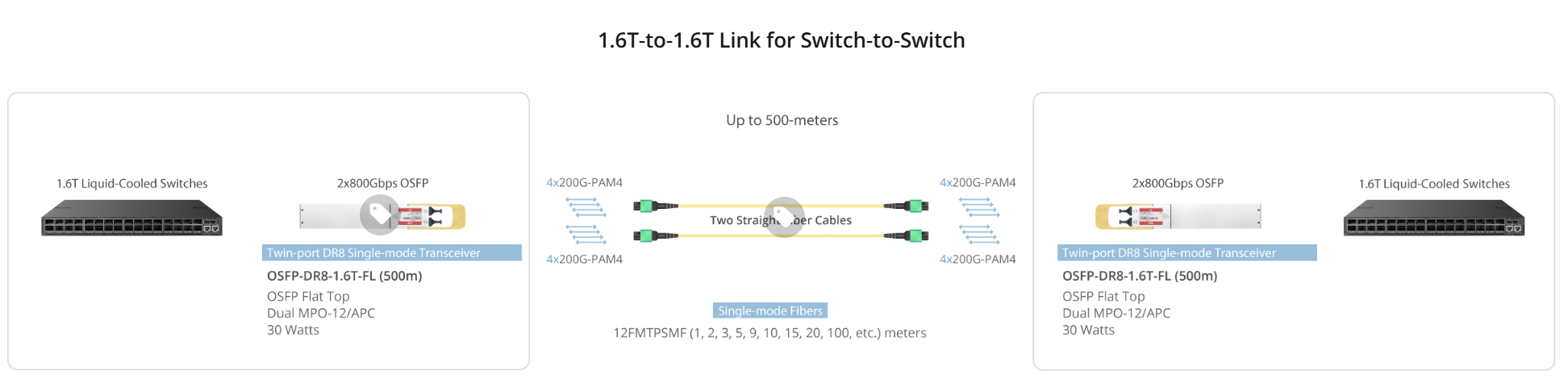

Connectivity Solutions
