Product Application
1) Used in indoor cabling,especially used as distribution cable
2) Used in optical connections in optical communication equipmentrooms and optica distribution frames
Features
1) Good mechanical and environmental characteristics
2) Flame retardant characteristics meet the reauirements of relevant standards
3) The mechanical characteristics meet the reguirements of relevant standards
4) Soft, flexible, easy to splice, and with big capacity data transmission
5) Meet various requirements of market and clients

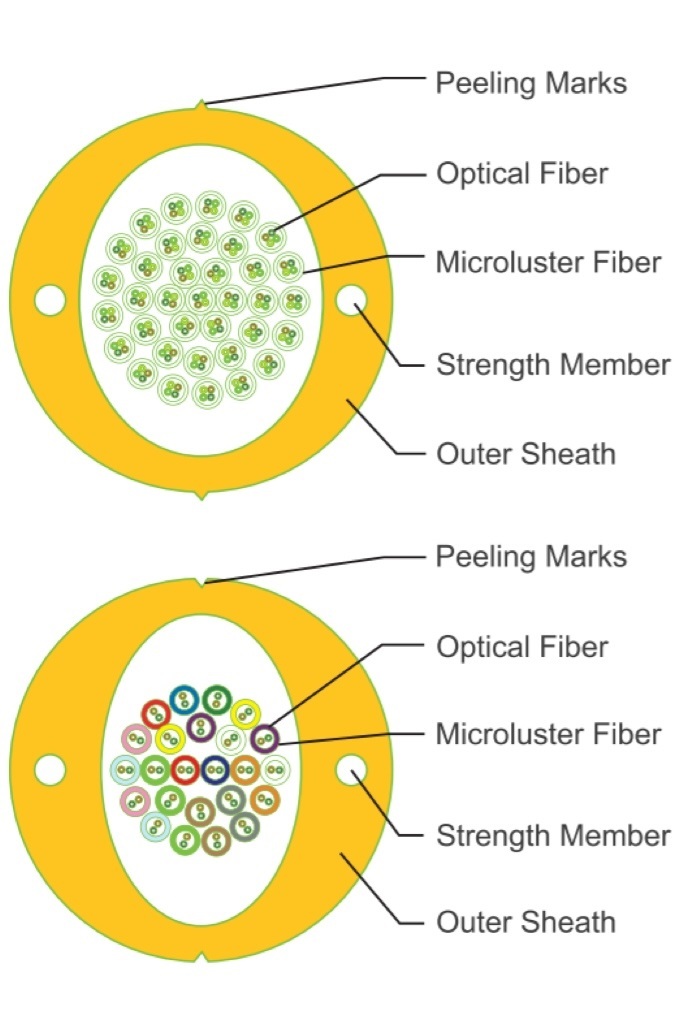

Structure and Technical Parameters
|
Fiber Count
|
Dimension
(mm)
|
Tensile(N)
|
Crush(N/100mm)
|
Min.bend Radius(mm)
|
Range of Temperature(°C)
|
|
Long Term
|
Short Term
|
Long Term
|
Short Term
|
Dynamic
|
Static
|
|
24Xn
|
8.6±0.3
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
-20-+60
|
|
36Xn
|
9.0±0.3
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
|
48Xn
|
10.5±0.4
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
|
72Xn
|
11.2±0.5
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
|
96Xn
|
12.6±0.5
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
|
144Xn
|
13.5±0.5
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
|
288Xn
|
16.0±0.5
|
300
|
1000
|
300
|
1000
|
20D
|
10D
|
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
