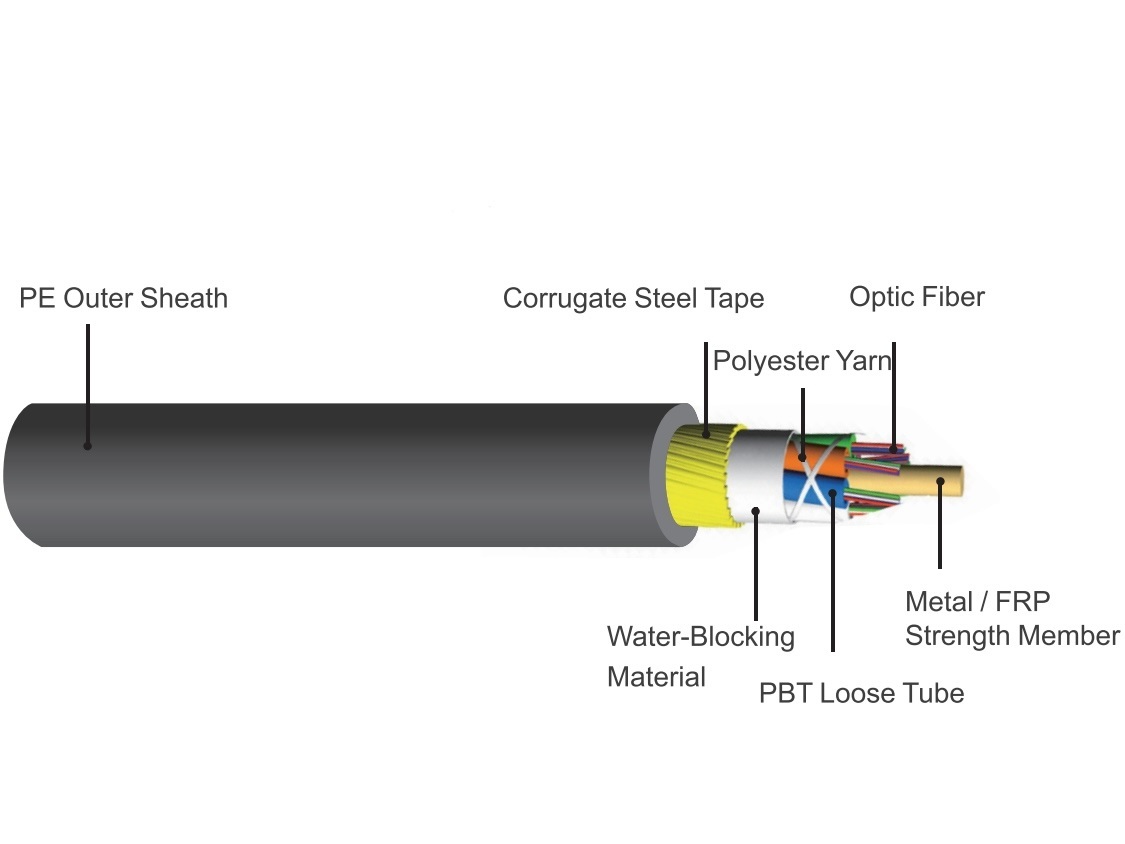

Non-Metallic ADSS Outdoor Loose Tube Layer-stranded Type Optical Cable

Product Application
1) The design of ADSS optical cable fully considers the actual conditions of power lines and is suitable for high-voltage transmission lines of different levels.Polyethylene (PE) sheath can be used for 10KV and 35KV powerlines.
2) For 110KV and 220KV power lines, the optical cable hanging point must be determined by calculating the electric field strength distribution and an anti-tracing(AT)outer sheath must be used.
3) Carefully designed kevlar fiber dosage and perfect stranding process to meet the application requirements of different spans.
Features
1) Can be continuously erected.
2) Using AT sheath, it has excellent tracking resistance.
3) Light weight and small cable diameter reduce the impact of ice and windand the load on towers and supports.
4) It has a large span, with the maximum span exceeding 1000m.
5) Has superior tensile properties and temperature characteristics.
6) Life expectancy is up to 30 years.
The Order Information
1) Tight sleeve material type: V-PVC H-LSZH Y-Hytrel N-Nylon E-ETFE
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
    Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special reques
