Simplex Indoor Cable

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

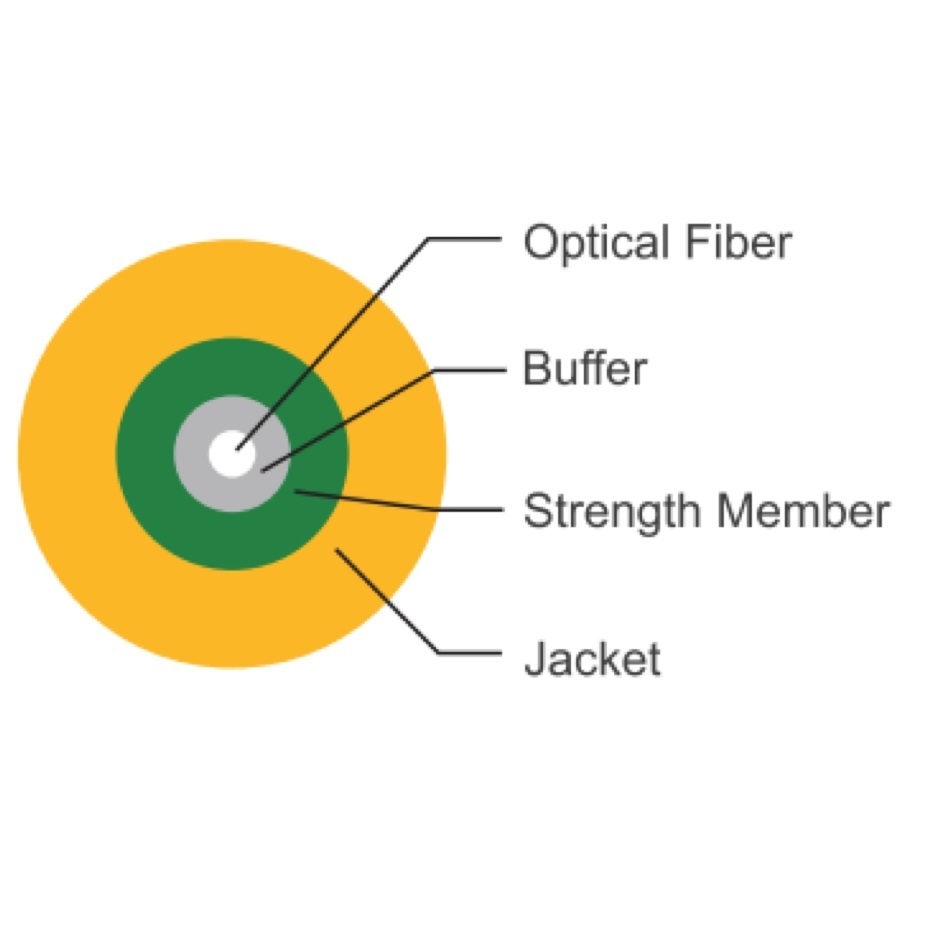

The single-core cable is made of a single 900um or 600um tightly sheathed fiber as the optical transmission medium, an aramid yarn as the reinforcing element and a layer of polyvinyl chloride (PVC) sheath.LSZH, TPU and other materials can also be providedaccording to customer requirements.

Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • Simplex Indoor Cable
  • Simplex Indoor Cable
1/1
  • Simplex Indoor Cable
  • Description
Product Application
1)Used in pigtails and patch cord
2)Used in optical connections in ootical communication equipment rooms and optical distribution frame smponents talings and patch cord
3)Used in optical connections in optical apparatus and equipments
Feature
1)Good mechanical and environmental characteristics
2)Flame retardant characteristics meet the requirements of relevant standards
3)The mechanical characteristics meet the requirements of relevant standards
4)Soft, flexible, easy to splice, and with big capacity data transmission
5)Meet various requirements of market and clients
Structure and Technical Parameters

Fiber Count

Cable Dimension(mm)

CableWeight
(kg/km)

Tensile(N)

Crush(N/100mm)

Min.bend Radius(mm)

Range of Temperature(℃)

Long Term

Short Term

Long Term

Short Term

Dynamic

Static

1

1.6

2.0

40

80

100

500

50

30

-20-+60

1

1.8

2.8

60

100

100

500

50

30

1

2.0

3.5

60

100

100

500

50

30

1

2.4

4.5

60

100

100

500

50

30

1

2.8

6.5

80

150

100

500

60

30

1

3.0

7.0

80

150

100

500

60

30

The Order Information
1) Tight sleeve material type: V-PVC H-LSZH Y-Hytrel N-Nylon E-ETFE
2) FiberType: B1.3 B6a1 B6a2 B6b3 A1a A1b BIOM2 BIOM2+ BIOM3 BIOM4 BIOM5
3) Jacket Material: Polyvinyl chloride(PVC), Low smoke zero halogen(LSZH),
    Therm oplatic polyurethane(TPU). or other contracted material
4) Jacket color: (Including color of fiber) Meets the requirements of relevant standards, or other contracted color
5) Cable Dimension: The nominal cable dimension or other contracted dimension
6) Delivery Length: 1KM or 2KM or other contracted length
7) Other Requirements: Other contracted special requests
